China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 1.2t mini excavator | jh8012 in China. With abundant experience, we warmly welcome you to buy cheap 1.2t mini excavator | jh8012 made in China here from our factory. For price consultation, contact us.
Key Features
Compact & Flexible Design:
Adopts industry-leading compact tailless design for narrow channels. Unique telescopic crawler system supports electric width adjustment (760mm/980mm), ensuring stability on soft ground.
Excellent Configuration:
Equipped with dual-circuit hydraulic system and standard quick-change interface, compatible with over ten accessories. Optimized working device with high-strength steel, service life increased by over 30%.
Multifunctional Performance:
Realizes one machine for multiple uses via quick-change interface, capable of excavation, crushing, drilling, etc.
 |  |
Applications
Municipal Engineering
Sidewalk maintenance, pipeline laying, greening construction
Building Decoration
Basement excavation, indoor demolition, courtyard renovation
Agricultural and Forestry Operations
Orchard management, greenhouse construction, farmland water conservancy
Emergency Repair
Disaster site cleaning, pipeline repair
Special Places
Warehouse loading, ship maintenance, airport ground handling
With excellent flexibility, versatility and reliability, it is an ideal choice for small urban projects and refined operations, suitable for engineering contractors, municipal units and agricultural users. We provide professional pilot services for potential users to experience its performance in real working scenarios firsthand.
 |  |
Parameters
| Model | JH8012 | |
Engine | Emission Standard | Euro 5,EPA4 |
Make /Model | KUBOTA /D722 | |
Power /Rotation speed | 10.2kw(14HP)@2500rpm | |
Number of cylinder | 3 | |
TRACK SYSTEM | Maximum Travel speed | 3.5/2.1km/h(optional) |
Width of track shoe | 180mm | |
PERFORMANCE PARAMETER | Standard Bucket capacity | 0.025m³ |
Swing speed | 12~13rpm | |
Maximum Grade ability | 35° | |
Maximum Bucket digging force | 9KN | |
Maximum Arm digging force | 5.5KN | |
Hydraulic system pressure | 17Mpa | |
Machine weight | 1200kg | |
Boom length | 1480mm | |
Arm length | 880mm | |
Fuel tank | 10L | |
Hydraulic oil tank | 9L | |

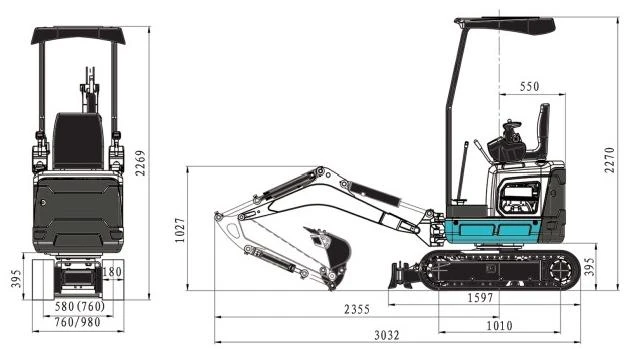

Main Dimensions
 |
MACHINE SIZE | Overall dimension (L*W*H) | 3032mm*760/980mm*2270mm |
Axle base(Track length on ground) | 1010mm | |
Length of rubber track | 1345mm | |
Track gauge | 580/760mm | |
Minimum Ground clearance | 125mm | |
Swing radius at tail | 550mm | |
Swing radius at front | 1398mm | |
WORKING RANGE | Maximum Digging height | 3107mm |
Maximum Dumping height | 2172mm | |
Maximum Digging depth | 1838mm | |
Maximum Vertical digging depth | 1709mm | |
Maximum Digging distance | 3442mm | |
Boom swing angle(Left/Right) | 50°/52° |
