China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 23t medium excavator | jh8230 in China. With abundant experience, we warmly welcome you to buy cheap 23t medium excavator | jh8230 made in China here from our factory. For price consultation, contact us.
Product Features
1. Energy-Saving & High Efficiency
Precision matching and energy-saving control optimize power and hydraulic systems, reducing fuel consumption while maintaining high operating efficiency.
2. Excellent Plateau Adaptability
Turbocharging ensures stable power output in high-altitude, low-oxygen environments.
3. Superior Heat Dissipation & Hydraulic Performance
Aerodynamic fan cover enhances heat dissipation. Advanced hydraulic system delivers strong digging force and smooth operation.
4. Flexible Working Adaptability
The 23-ton excavator can be equipped with 16–18m long reach boom for diverse working conditions, with wider operation scope and stronger applicability.
5. Durable Chassis & Wide Vision
Optimized track frame reduces wear and soil accumulation. Large windows minimize blind spots for safer operation.
6. Easy Maintenance
Key filters are ground-level accessible. Large fuel tank and toolbox support long-hour working.
7. High Cost-Effectiveness
Reliable components extend service life and lower maintenance costs.
 |  |
Applications
Urban construction, river dredging, slope trimming, foundation excavation, municipal engineering, large-scale earth moving, and long-distance digging with 16–18m long reach boom.
 |  |
Parameters
| Model | JH8230 | |
>>>> SPECIFICATIONS: | ||
ENGINE | Emission Standard | Tier 2/ Stage II |
Make /Model | CUMMINS / 6BTAA5.9-C178 | |
Power /Rotation speed | 133kw@2000rpm | |
Type | Diesel with water-cooled, | |
TRACK SYSTEM | Maximum Travel speed | 2.4/4.3 km/h |
Width of track shoe | 600mm | |
Number of track shoe per side | 49pcs | |
Number of upper roller per side | 2 | |
Number of bottom roller per side | 9 | |
PERFORMANCE PARAMETER | Standard Bucket capacity | 1.1m³ |
Swing speed | 12rpm | |
Maximum Grade ability | 35°(70%) | |
Maximum Bucket digging force | 140KN | |
Maximum Arm digging force | 99KN | |
Hydraulic system pressure | 34Mpa | |
Machine weight | 22800kg | |
Fuel tank | 350L | |
Hydraulic oil tank | 220L | |

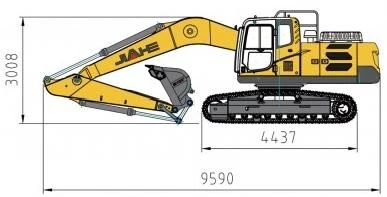

Main Dimensions
 |  |
 |
MACHINE SIZE | Overall dimension (L*W*H) | 9590mm*2980mm*3185mm |
Height of cabin | 3060mm | |
Track length on ground(Axle base) | 3655mm | |
Track gauge | 2380mm | |
Minimum Ground clearance | 470mm | |
Swing radius at tail | 2880mm | |

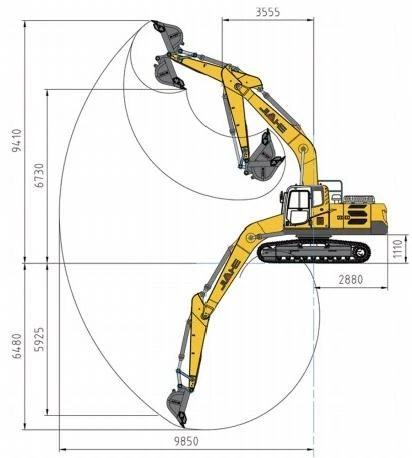

WORKING RANGE | Maximum Digging height | 9410mm |
Maximum Dumping height | 6730mm | |
Maximum Digging depth | 6480mm | |
Maximum Vertical digging depth | 5925mm | |
Maximum Digging radius | 9850mm | |
Minimum swing radius | 3555mm |
