China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 60t large excavator | jh8600 in China. With abundant experience, we warmly welcome you to buy cheap 60t large excavator | jh8600 made in China here from our factory. For price consultation, contact us.
Product Features
Intelligent Load-Adaptive Engine Control ：
Engine throttle automatically adjusts to light, medium, and heavy loads, lowering fuel consumption and emissions while optimizing power output.
Smart Monitoring & Protection System ：
Features maintenance alerts, fault diagnosis, remote real-time monitoring, and engine overload/overheat protection for high reliability.
Boom Fall Self-Locking Safety Device ：
Explosion-proof hose and self-locking control prevent accidental boom collapse, greatly improving operational safety.
Dual-Motor Stable Swing Drive ：
Dual-motor rotary drive ensures smooth, synchronized rotation with high positioning accuracy for heavy-duty and precise work.
Advanced Hydraulic System ：
Positive flow load-sensing system + dual-pump full displacement confluence delivers fast response and high efficiency in digging, lifting and dumping.
 |  |
Applications
Municipal engineering, road construction, water conservancy, foundation excavation, general earthwork, and optional 16–18m long-reach boom for long-distance digging.
 |  |
Parameters
| Model | JH8600 | |
>>>> SPECIFICATIONS: | ||
ENGINE | Emission Standard | Tier 3/ Stage Ⅲ |
Make /Model | Cummins / QSM11 | |
Power /Rotation speed | 298kw(405HP)@2000rpm | |
Type | Diesel with water-cooled, | |
TRACK SYSTEM | Maximum Travel speed | 2.4/4.3 km/h |
Width of track shoe | 600mm | |
Number of track shoe per side | pcs | |
Number of upper roller per side | 2 | |
Number of bottom roller per side | 9 | |
PERFORMANCE PARAMETER | Standard Bucket capacity | 3.0m³ |
Swing speed | 12rpm | |
Maximum Grade ability | 35°(70%) | |
Maximum Bucket digging force | 325KN | |
Maximum Arm digging force | 253KN | |
Hydraulic system pressure | 35Mpa | |
Machine weight | 58000kg | |
Fuel tank | 760L | |
Hydraulic oil tank | 400L | |

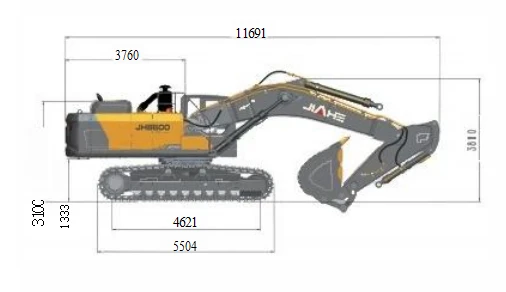

Main Dimensions
 |  |
 |
MACHINE SIZE | Overall dimension (L*W*H) | 11690mm*3360mm*3810mm |
Height of cabin | 3309mm | |
Track length on ground(Axle base) | 4021mm | |
Track gauge | 2760mm | |
Minimum Ground clearance | 602mm | |
Swing radius at tail | 3760mm | |

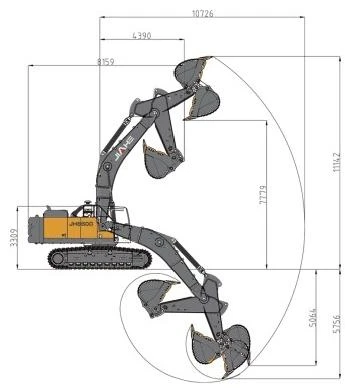

WORKING RANGE | Maximum Digging height | 11142mm |
Maximum Dumping height | 7779mm | |
Maximum Digging depth | 5756mm | |
Maximum Vertical digging depth | 5064mm | |
Maximum Digging radius | 10726mm | |
Minimum swing radius | 4390mm |
