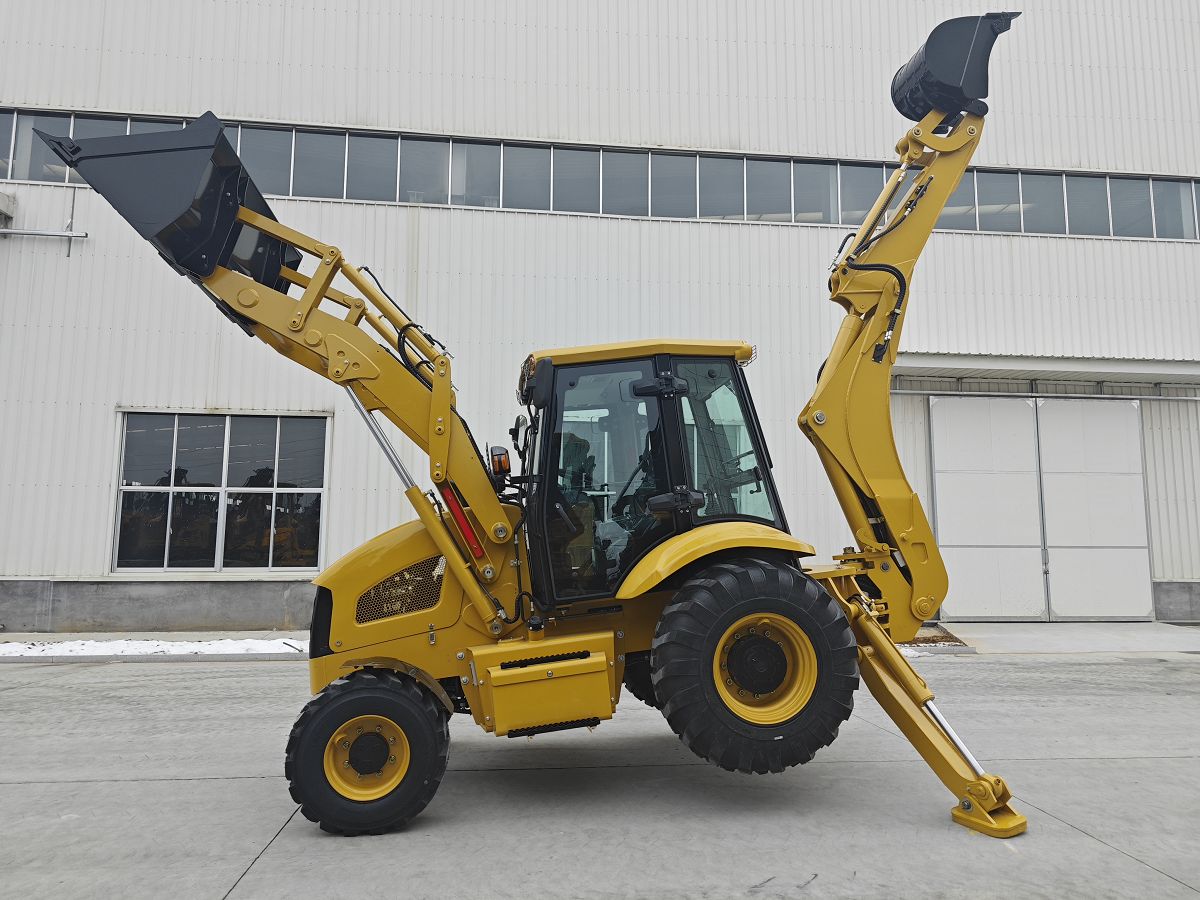

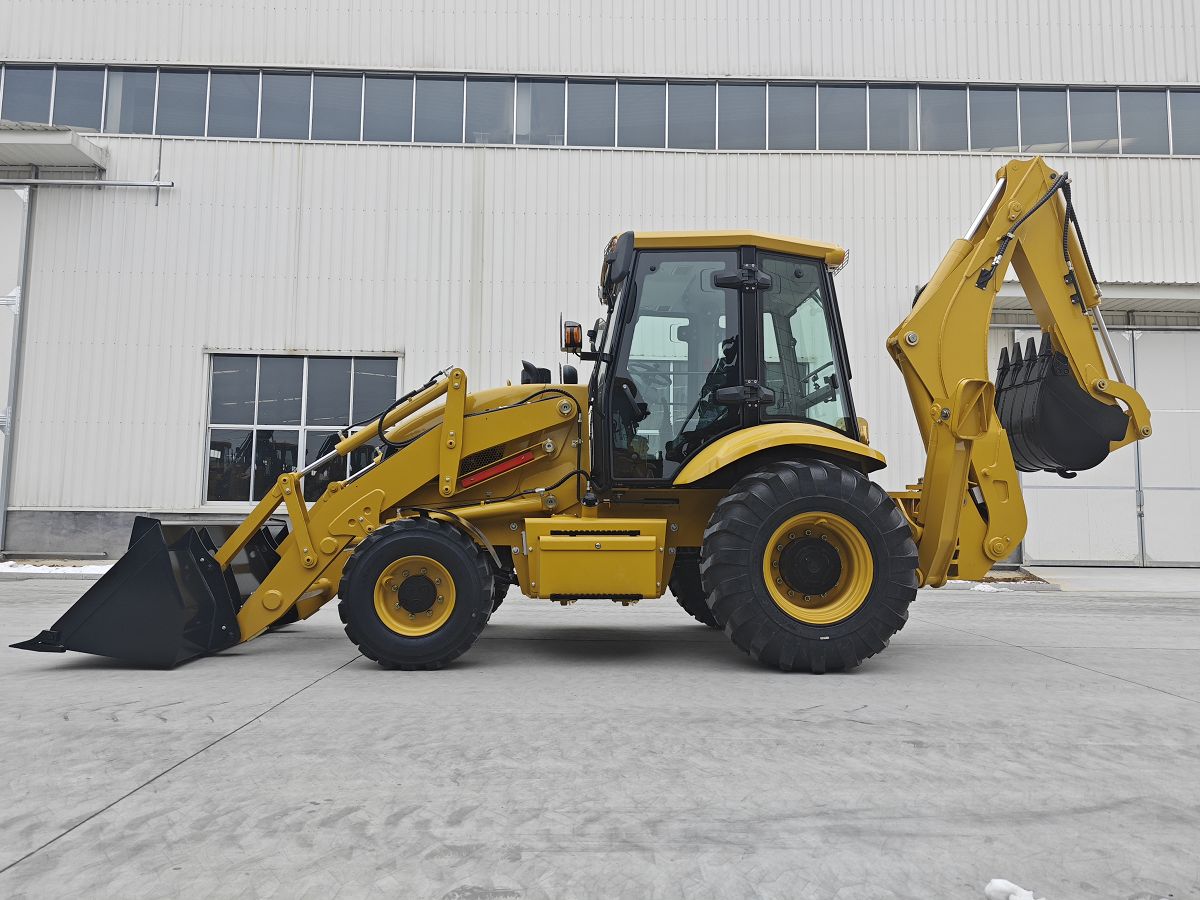

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 8.6t backhoe loader | 388 in China. With abundant experience, we warmly welcome you to buy cheap 8.6t backhoe loader | 388 made in China here from our factory. For price consultation, contact us.
Main Features
Excavation & Loading in One Machine:
Front loader bucket for handling sand, gravel, and bulk materials; rear excavator arm for digging and trenching. Combines loading, excavation, and material handling to reduce equipment investment.
Quick Attachment Change:
Fast coupler system allows easy switching between breaker, compactor, forks, sweeper, snow blower, and more-adapting to crushing, drilling, lifting, and cleaning tasks.
Compact & Flexible Design:
Small overall footprint with strong working capacity, ideal for confined job sites such as urban roads and residential construction areas.
Stable & Durable Structure:
Reinforced frame and articulated design provide excellent stability during operation, ensuring safety and long service life.
Easy Maintenance Access:
Key components such as engine, transmission, and hydraulic system are conveniently positioned for fast inspection and servicing.
High-Quality Components:
Reliable hydraulic lines, sealed wet brakes, and durable core parts reduce failure rates and lower maintenance costs.
 |  |
Parameters
| Model | 388 | ||
Parameter | 388 | 388T | |
Overall dimensions | Operating weight | 8600KG | 8950KG (Telescopic,4in1 bucket) |
Overall dimension(L×W×H) | 6050×2484×3453mm | 6050×2484×3453mm | |
Wheel base | 2280mm | 2280mm | |
Wheel tread | 1785mm | 1785mm | |
Ground clearance | 300mm | 300mm | |
Performance | Load bucket capacity | 1.0m² | 1.0m³ |
Load breakout force | 47KN | 47KN | |
Load lifting capacity | 2500KG | 2500KG | |
Bucket unloading height | 2760mm | 2830mm | |
Bucket unloading distance | 900mm | 924mm | |
Digging depth | 30mm | 30mm | |
Backhoe bucket capacity | 0.3m³ | 0.3m³ | |
Backhoe digging force | 49.8KN | 49.8KN | |
Backhoe swing angle | 180° | 180° | |
Bucket unloading height | 3818mm | 3795mm | |
Max.Digging depth | 4085mm | 4085mm | |
Max.Traction force | 60KN | 60KN | |
Engine | Model | Yuchai YC4A105Z-T20 | Weichai WP4G95E221 |
Type | Inline,direct injection, water-cooled,turbocharged, four-stroke | Inline,direct injection, | |
Cylinders - Inner diameter × stroke | 4-108×132 | 4-105×130 | |
Rated power | 75KW | 70KW | |
Rated speed | 2200r/min | 2200r/min | |
Min.fuel consumption | 230g/kw.h | 230g/kw.h | |
Max.torque | 400N.m | 380N.m | |
Displacement | 4.8L | 4.5L | |
Steering system | Type | hydraulic steering | hydraulic steering |
Steering gear model | BZZ5-250 | BZZ5-250 | |
Pump displacement | 63ml/r | 63ml/r | |
Pump model | CBG2063 | SGP2063 | |
Steering angle | ±39° | ±39° | |
Min.Turning radius | 6581mm | 6581mm | |
Driving axle | Model | WZZD75D | 26.2-1920/28.43M-1654 |
Manufacturer | Yunyu | Italy carraro | |
Rated front axle load | 22.5T | 22.5T | |
Rated rear axle load | 18.5T | 18.75T | |
Transmission system | Gearbox |
|
|
Model | ZL15 | TLB1-4WD | |
Gears | 4F,4R | 4F,4R | |
Hydraulic torque converter | YJ290 | carraro | |
Inlet pressure | 0.4-0.65Mpa | - | |
Outlet pressure | 1.5-1.8Mpa | 1.3-1.55Mpa | |
Cooling mode | Oil-cooling | Oil-cooling | |
Flow rate | 40ml/r | - | |
Tyres | Front/Rear Model | 14-17.5/19.5L-24 | 14-17.5/19.5L-24 |
Front Tyre Pressure | 0.4Mpa | 0.4Mpa | |
Rear Tyre Pressure | 0.35Mpa | 0.35Mpa | |
Max.Travel Speed | 24Km/h | 38Km/h | |
Brake system | Traveling Brake |
| Wet internal self- |
Parking brake | Manual brake | Manual brake | |
System pressure | Loading hydraulic system | 20Mpa | 20Mpa |
Excavation hydraulic system | 20Mpa | 20Mpa | |
Steering hydraulic system | 14Mpa | 14Mpa | |
