Product Description

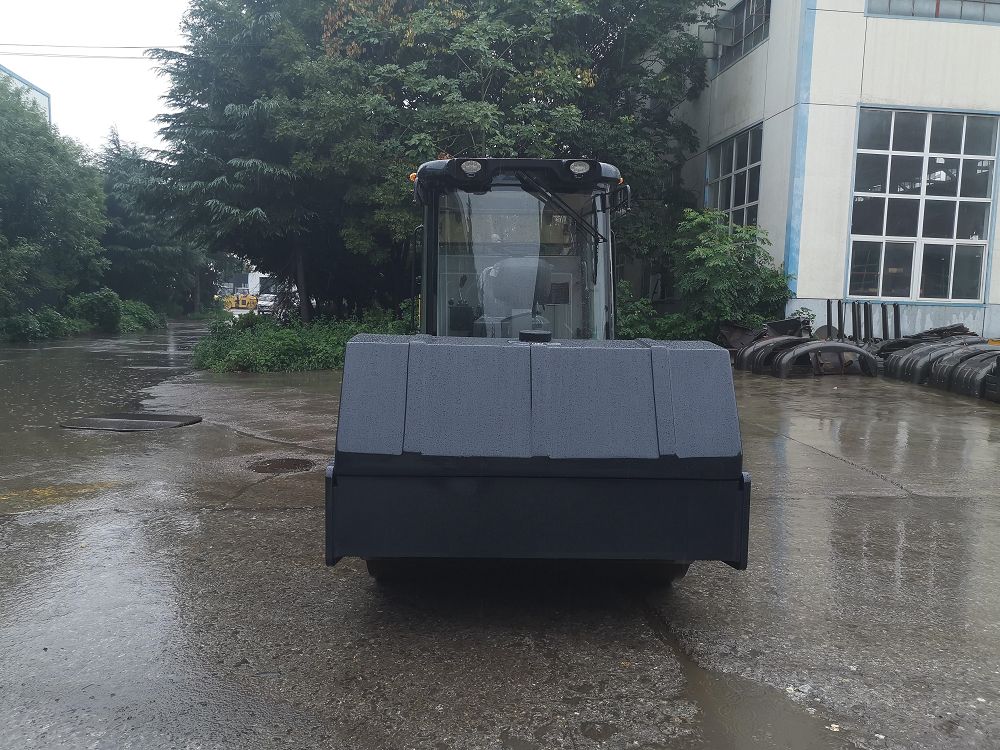

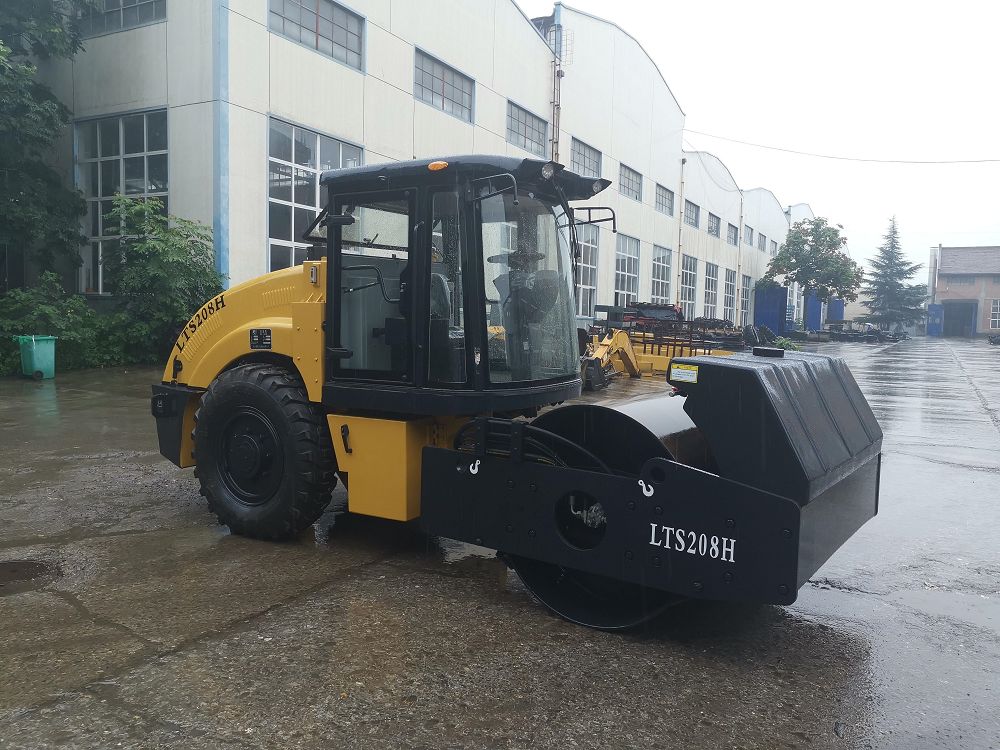

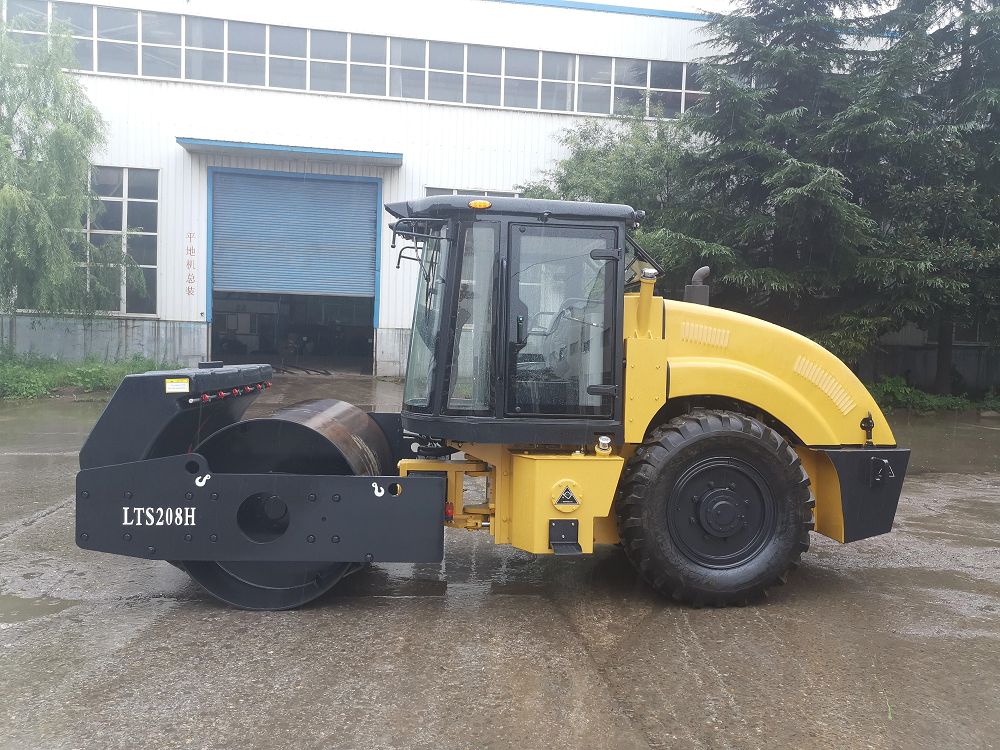

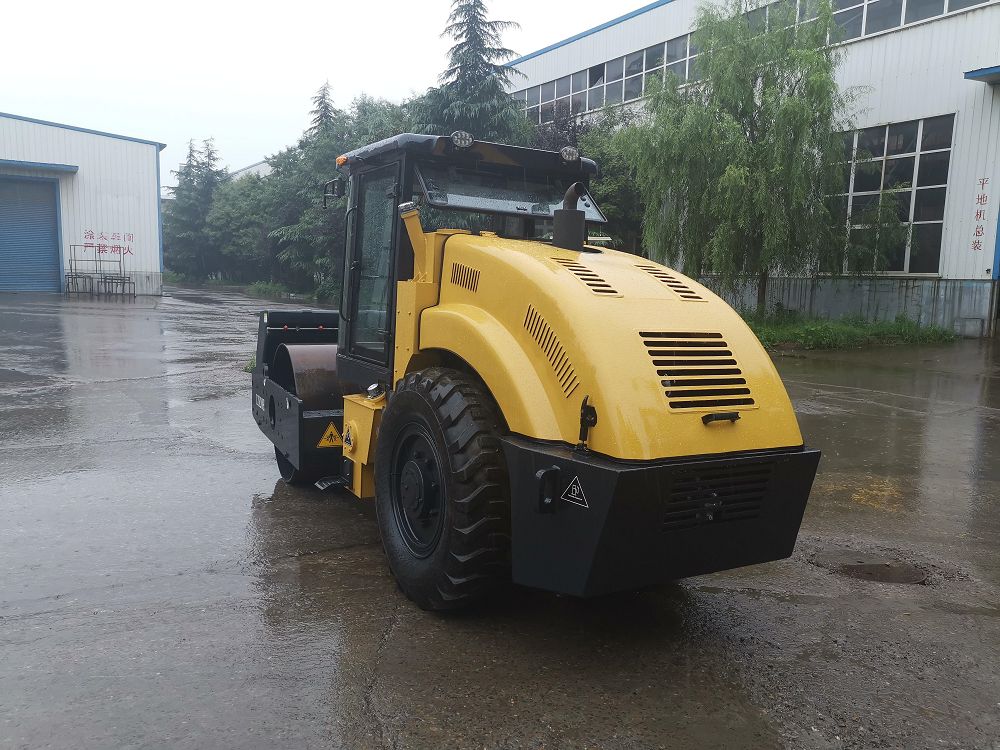

The LTS208H Hydraulic Rear Driver Vibratory Roller is a super heavy-duty compaction machine built with international advanced technology and imported components. With a high working mass and strong centrifugal force, it delivers efficient, high-quality compaction for large-scale construction. Suitable for non-cohesive materials like gravel, macadam, and sandy soil, it also performs well on cohesive materials. Ideal for expressways, mining roads, embankments, ports, and industrial sites.
 |  |
Main Features
Powerful CUMMINS turbocharged engine –
High power reserve, suitable for operations above 4000 meters.
Full hydraulic double drive with vibration & articulated steering –
Advanced, safe, and reliable; oil-blocking brake ensures control.
Streamlined design –
Circular windshield and curved hood create a distinctive appearance.
High-quality hydraulic components –
Equipped with DANFOSS 90-series systems for stable performance.
Optional pad-foot attachments –
Standard or removable for versatile compaction tasks.
 |  |
Model | LTS208H |
Operating mass | 8000kg |
Static linear load | 230N/cm |
Vibration amplitude | 0.4mm |
Centrifugal force | 70Kn |
Vibration frequency | 43Hz |
Travel speed | 0-10Km/h |
Ground clearance | 360mm |
Electrical voltage | 24V |
Tire size | 12.0-20 |
Grade ability | 25% |
Turning radius | 6000mm |
Overall dimension (LxWxH) | 5030x1880x2570mm |
Drum rim thickness | 16mm |
Drum width | 1700mm |
Wheel base | 2684mm |
Diesel engine power | 75/2200rpm |
Diesel engine model | CUMMINS 4BT3.9 |
Fuel tank capacity | 130L |
Hydraulic tank capacity | 130L |
Driving system | DANFOSS |
Ship | 2units/40HQ |
Optional:removable pad foot | |
