China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 10-16t mechanical drive road roller | ltp1016 in China. With abundant experience, we warmly welcome you to buy cheap 10-16t mechanical drive road roller | ltp1016 made in China here from our factory. For price consultation, contact us.
Product Introduction

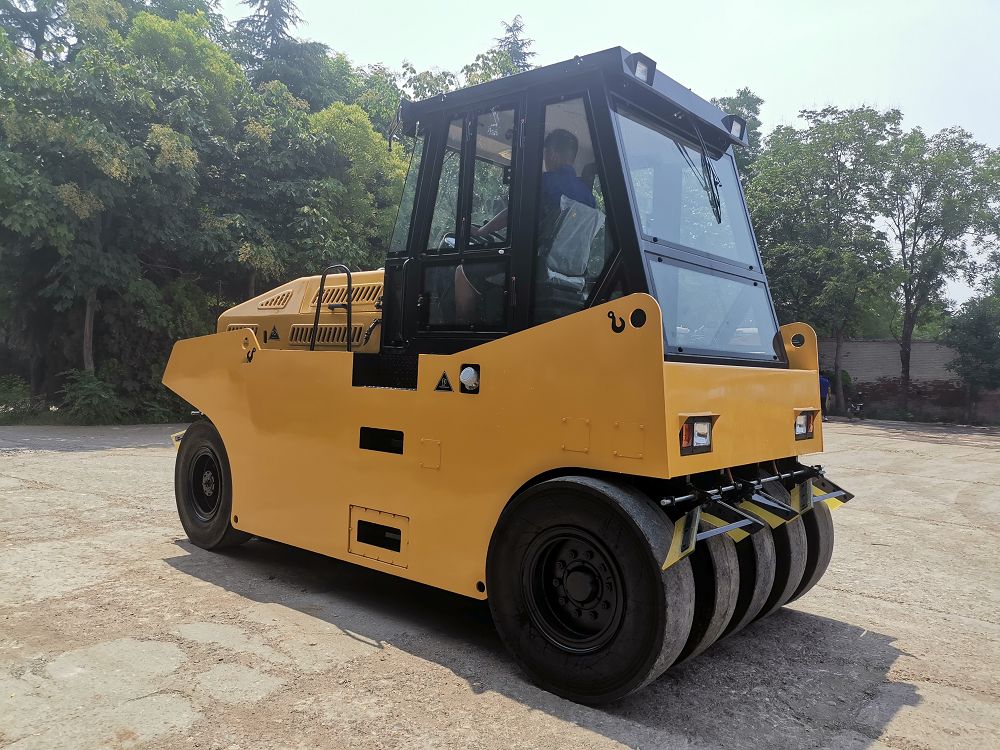

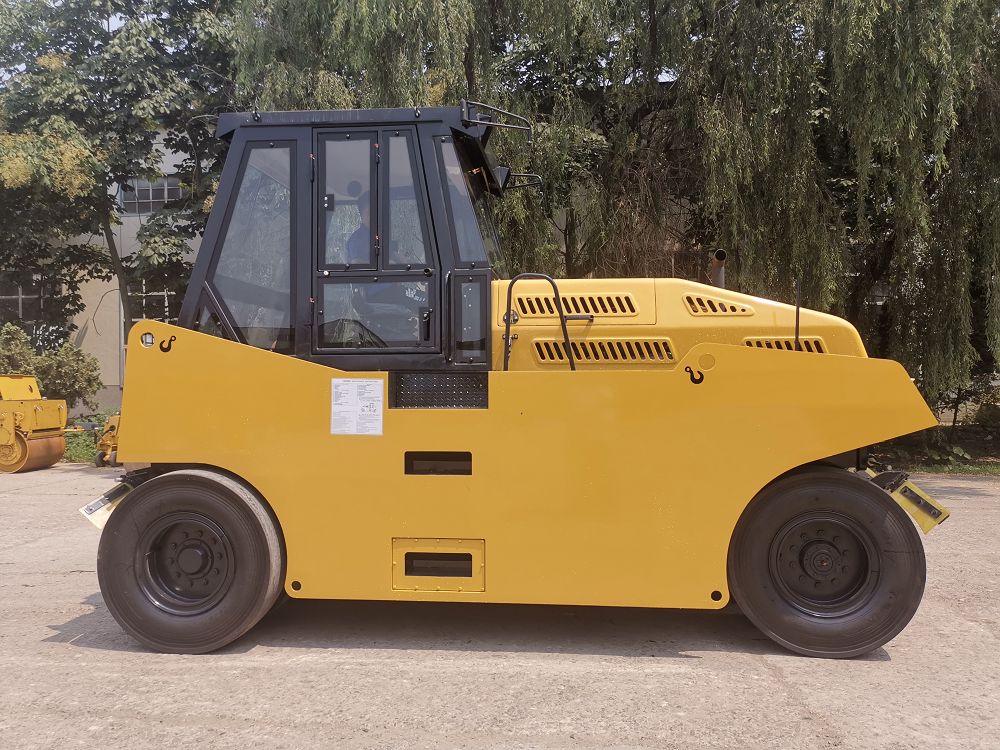

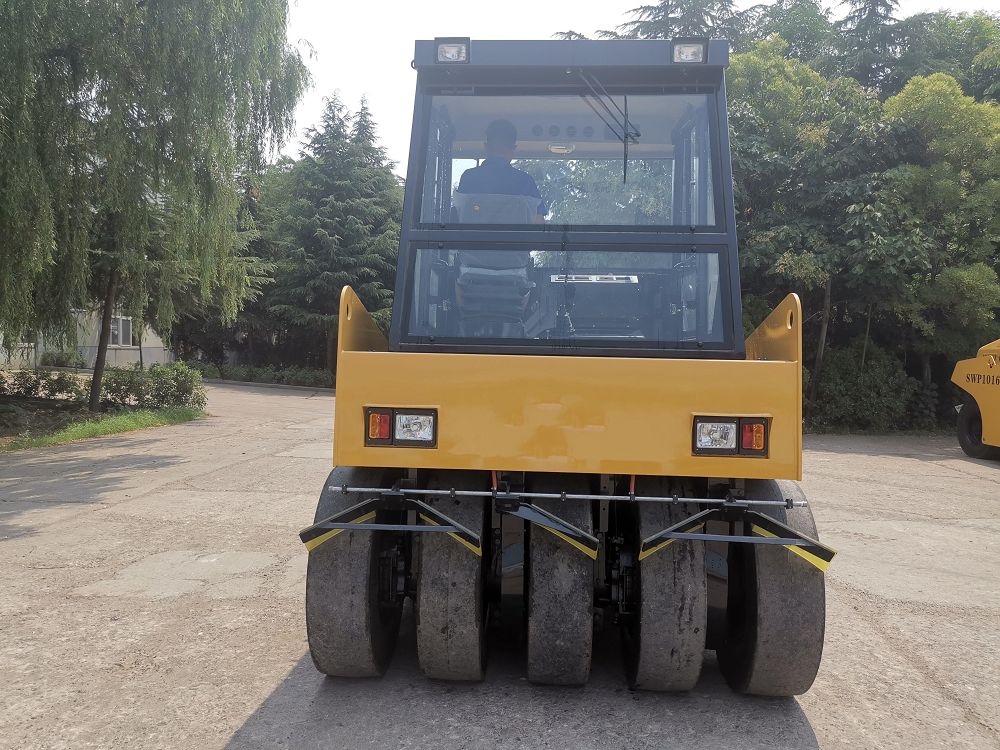

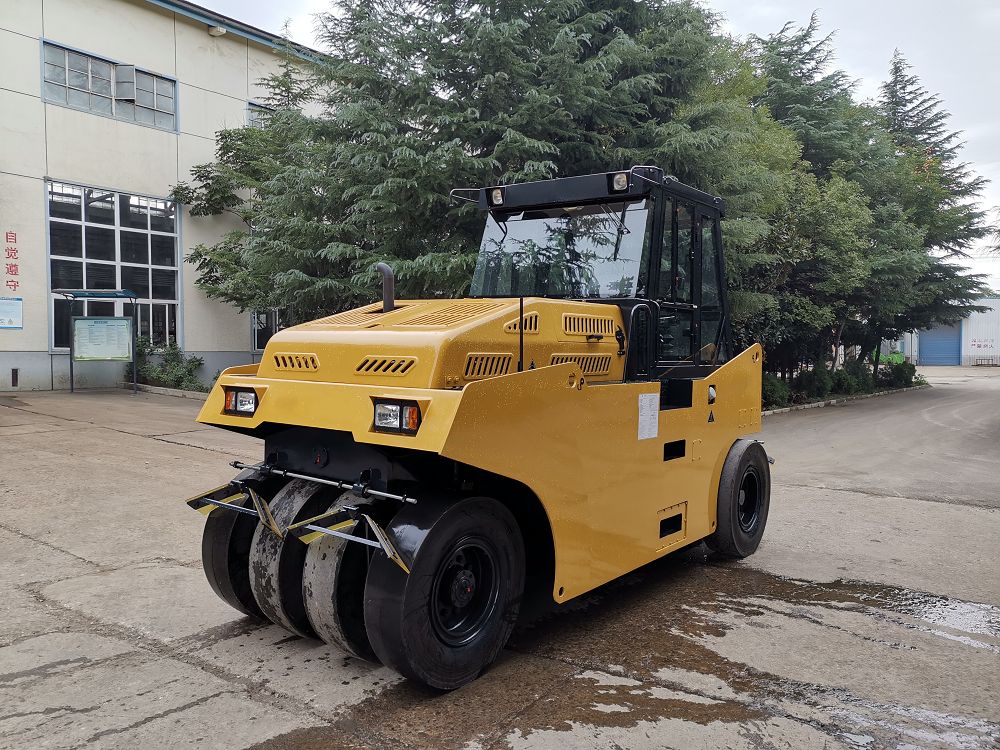

LTP1016 Pneumatic tire roller series are designed for the compact cohesive and non-cohesive materials, such as asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, Rolling Cement Concrete(PCC)in the construction projects, especially suitable for the preparation of the upper courses of high grade highway.
 |  |
Main Characteristic
1,LTP1016 low gravitational center designed for safe and comfortable operation.
2,Three forward speed and two backward changes. Glass fiber reinforced plastic spraying box and mufti-layer water
3,Filter ensure the stability of the system.
4,Power strength,LTP1016 which adopted 4BT Cummins engine, is suitable to all environments.
5,Front wheel with automatic adjusting Heating structure to perform better compactness.
 |  |
Model | LTP1016 |
Operating mass | 10000-16000kg |
Max Travel speed | 14.7 Km/h |
Tire quantity (Front+Rear) | 4+5 |
Tire seize | 11.0-20-16 |
Wheel rim seize | 8.00V-20 |
Minimum Turning radius | 7500mm |
Rolling compaction width | 2280mm |
Electrical voltage | 24V |
Grade ability | 30% |
Overall dimension (LxWxH) | 4780x2280x3200mm |
Wheel base | 3800mm |
Diesel engine power | 75Kw/2200rpm |
Diesel engine model | CUMMINS 4BT3.9 |
Fuel tank capacity | 223L |
Hydraulic tank capacity | 91L |
Optional：Canopy. | |
