China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 20-30t hydraulic drive road roller | ltp2030h in China. With abundant experience, we warmly welcome you to buy cheap 20-30t hydraulic drive road roller | ltp2030h made in China here from our factory. For price consultation, contact us.
Product Introduction

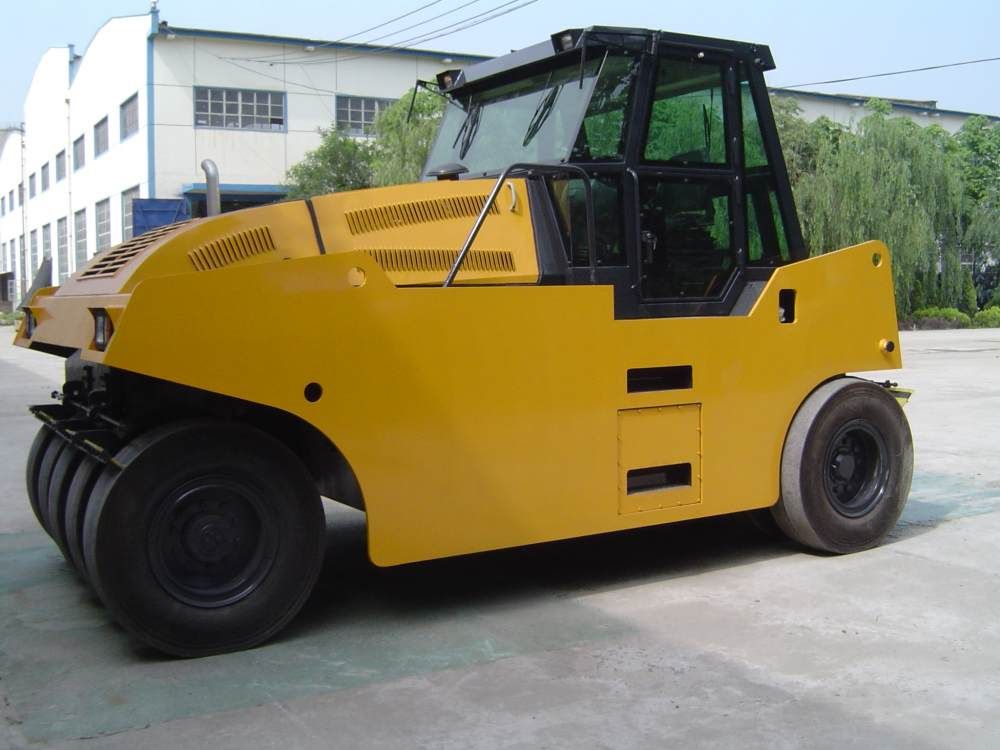

LTP2030H Pneumatic tire roller series are designed for the compact cohesive and non-cohesive materials, such as asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, Rolling Cement Concrete(PCC)in the construction projects, especially suitable for the preparation of the upper courses of high grade highway.
 |
Main Characteristic
1,LTP2030H low gravitational center designed for safe and comfortable operation.With stepless speed changes is easy and reliable to operate.
2,Glass fiber reinforced plastic spraying box and mufti-layer water filter ensure the stability of the system.
3,Power strength,LTP2030H which adopted 6BTA Cummins engine, is suitable to all environments.
4,Front wheel with automatic adjusting Heating structure to perform better compactness.
Model | LTP1016H |
Operating mass | 20000-30000kg |
Max Travel speed | 0-10 Km/h |
Tire quantity (Front+Rear) | 5+6 |
Tire seize | 11.0-20-16 |
Wheel rim seize | 8.00V-20 |
Minimum Turning radius | 8000mm |
Rolling compaction width | 2790mm |
Electrical voltage | 24V |
Grade ability | 30% |
Overall dimension (LxWxH) | 4950x2790x3240mm |
Wheel base | 3800mm |
Diesel engine power | 125Kw/2200rpm |
Diesel engine model | CUMMINS6BTA5.9 |
Fuel tank capacity | 193L |
Hydraulic tank capacity | 99L |
Optional：Canopy. | |
