China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 2t diesel forklift | fd20 in China. With abundant experience, we warmly welcome you to buy cheap 2t diesel forklift | fd20 made in China here from our factory. For price consultation, contact us.

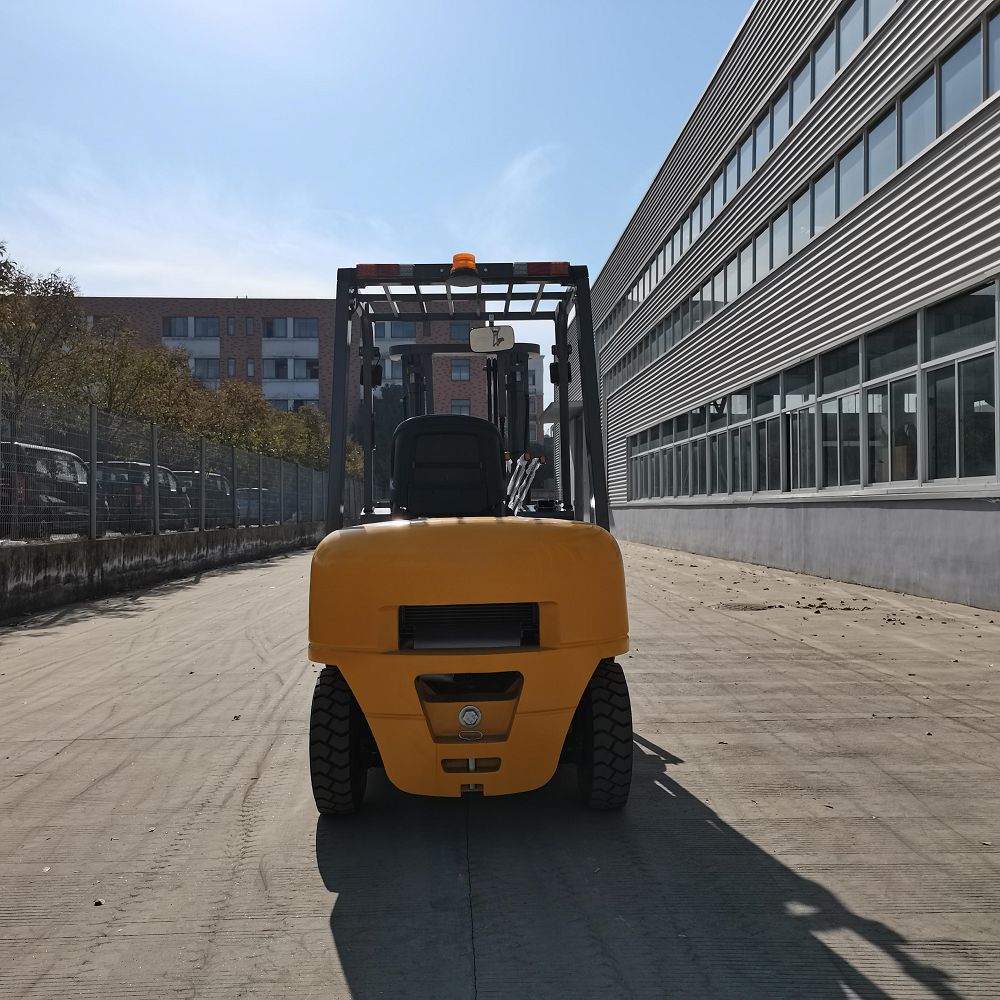

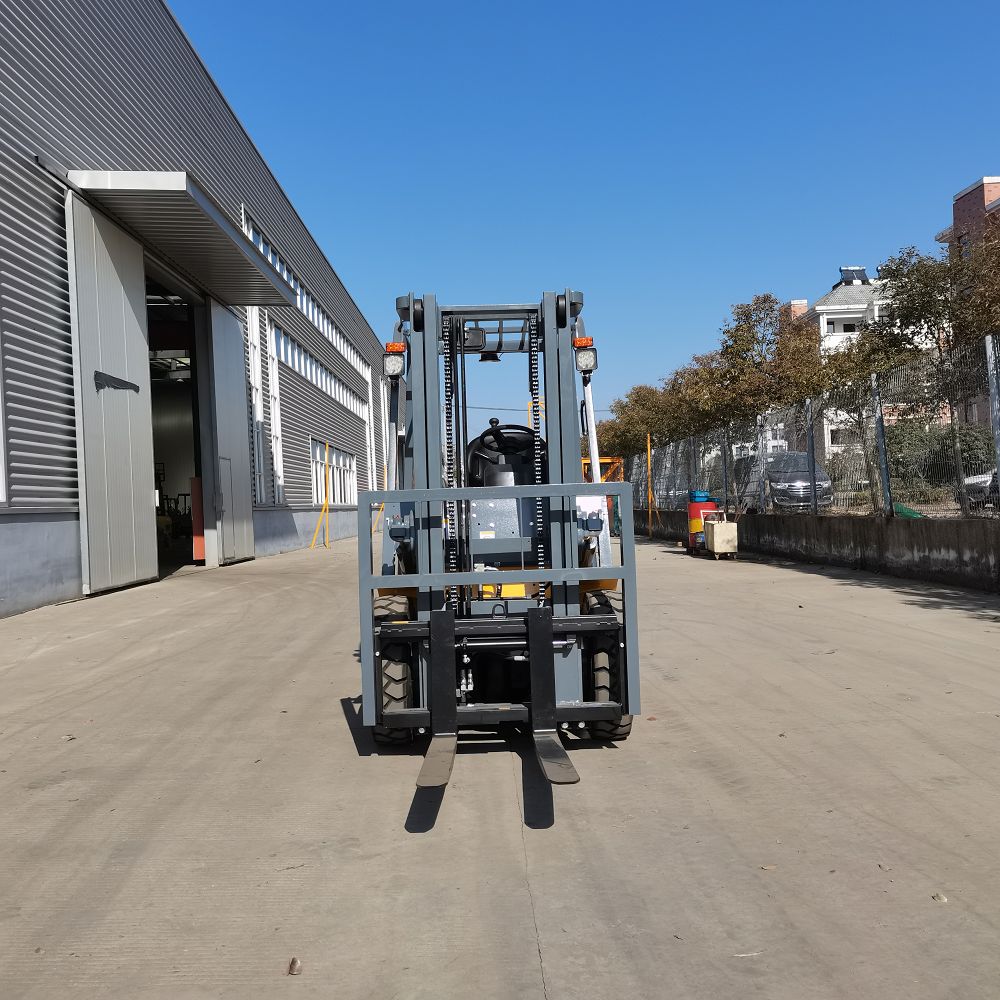

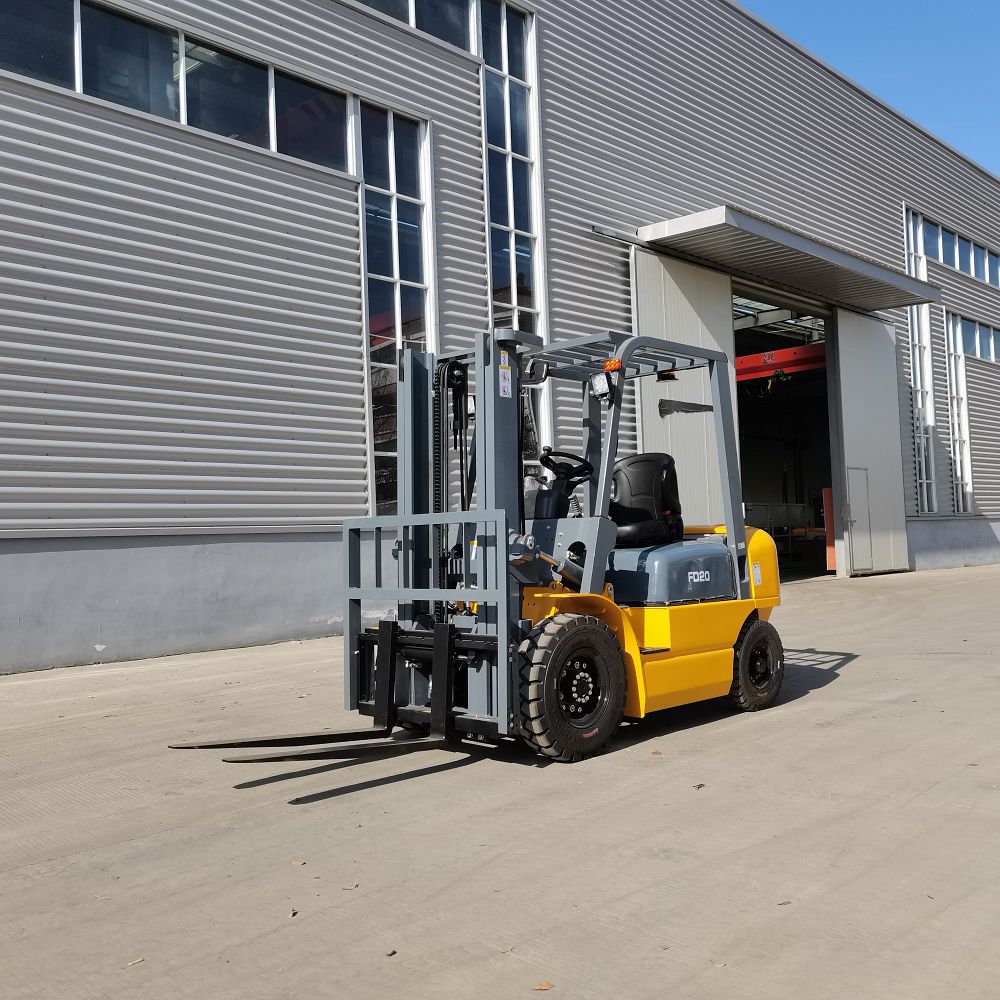

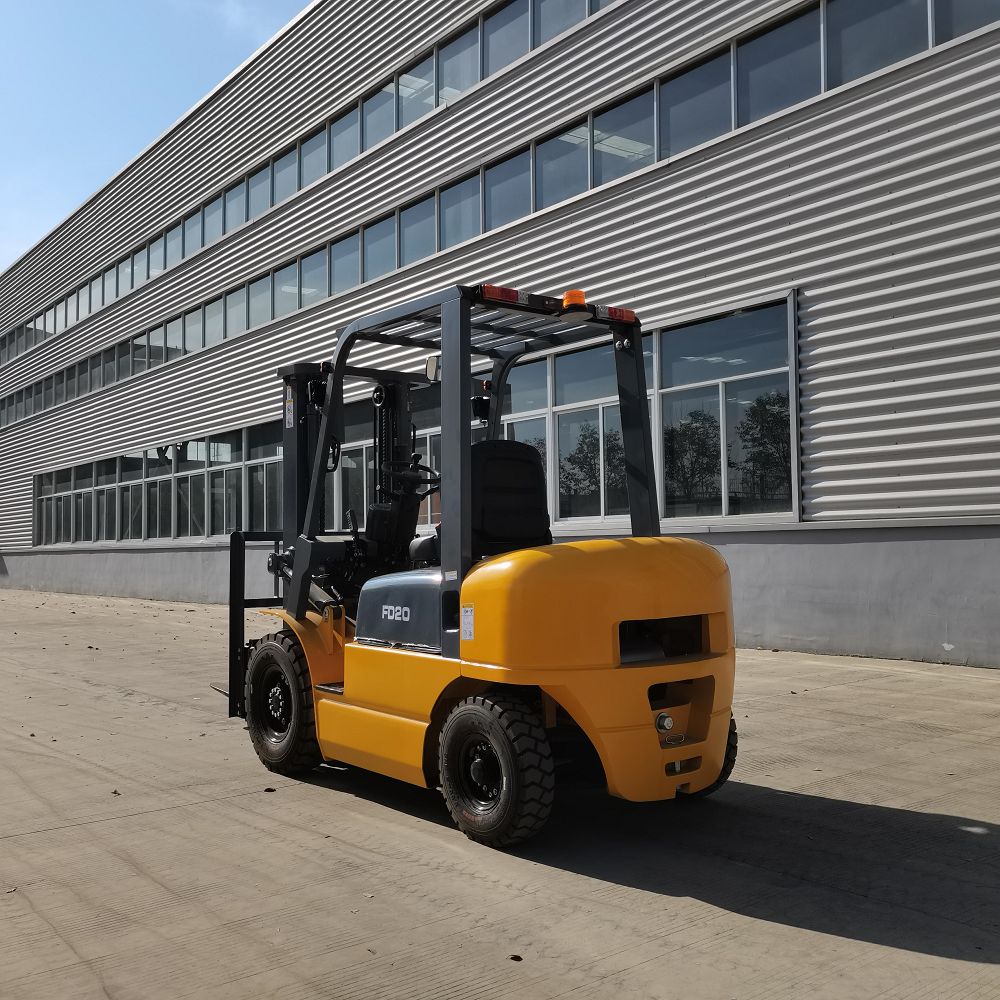

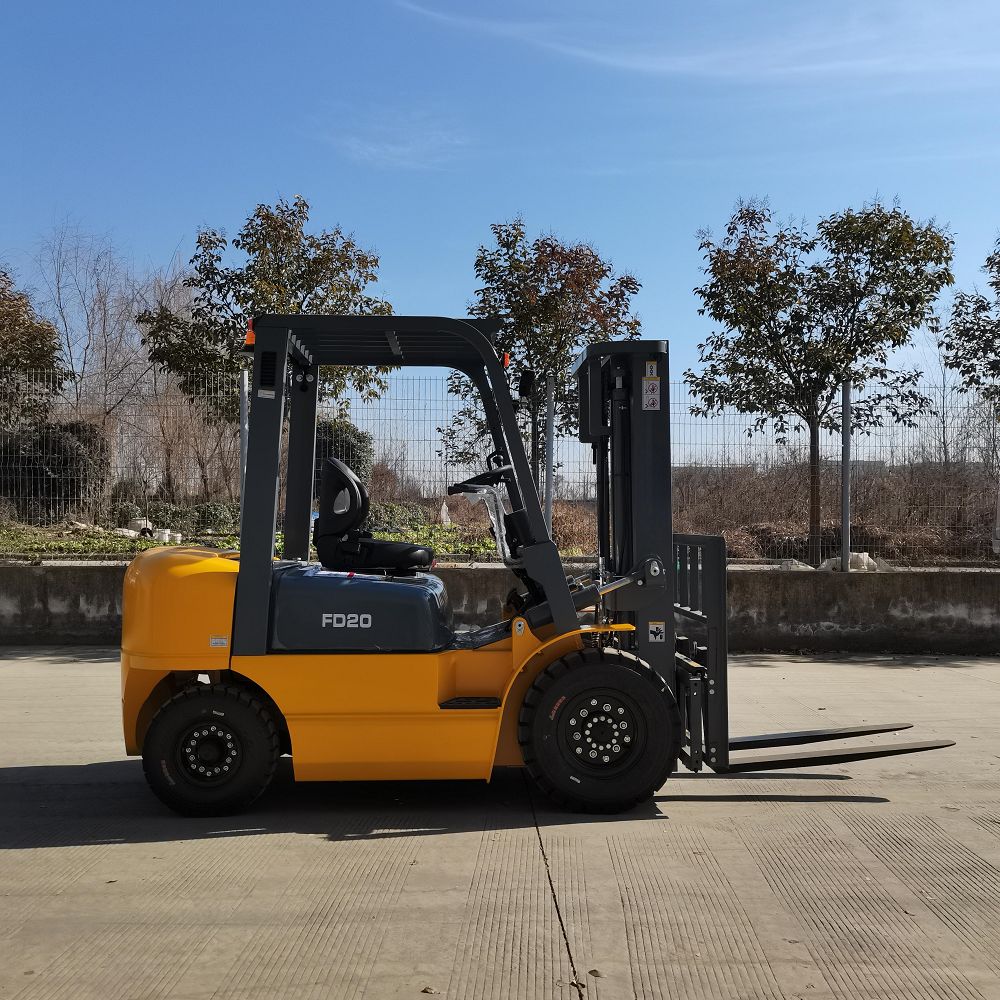

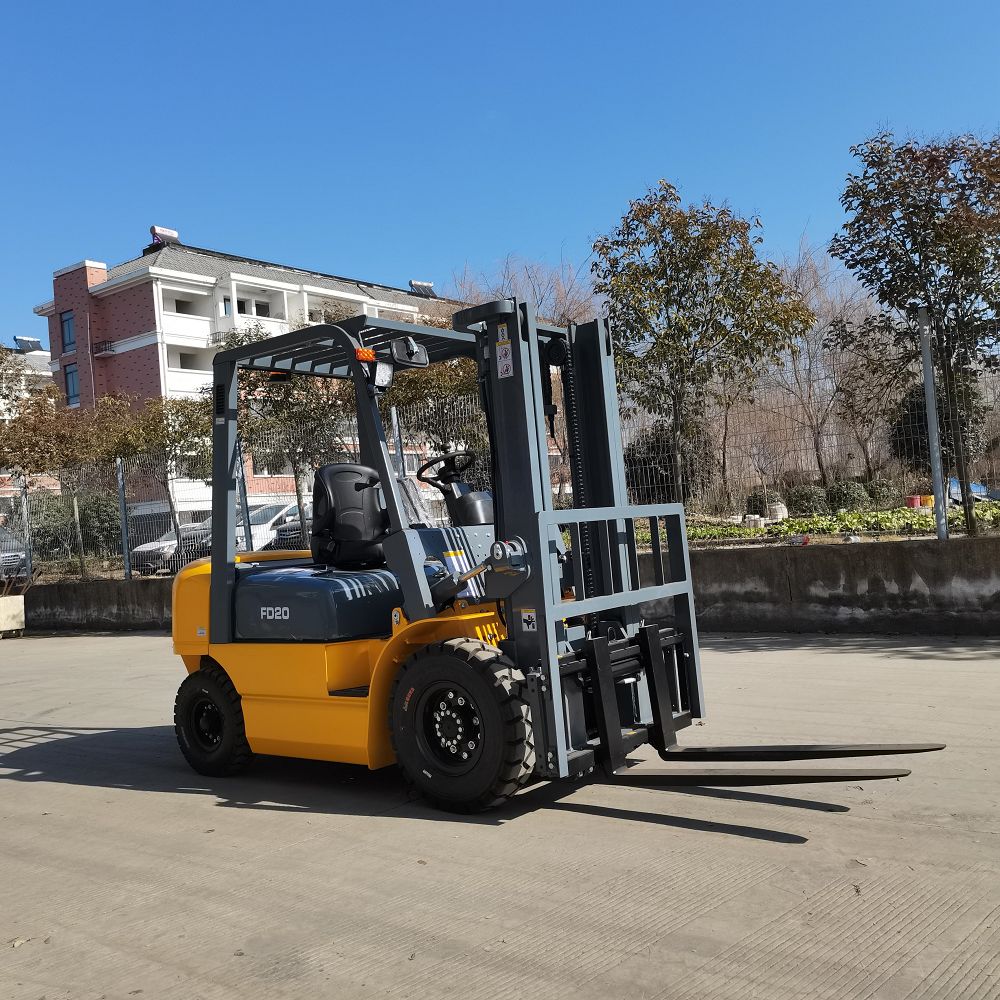

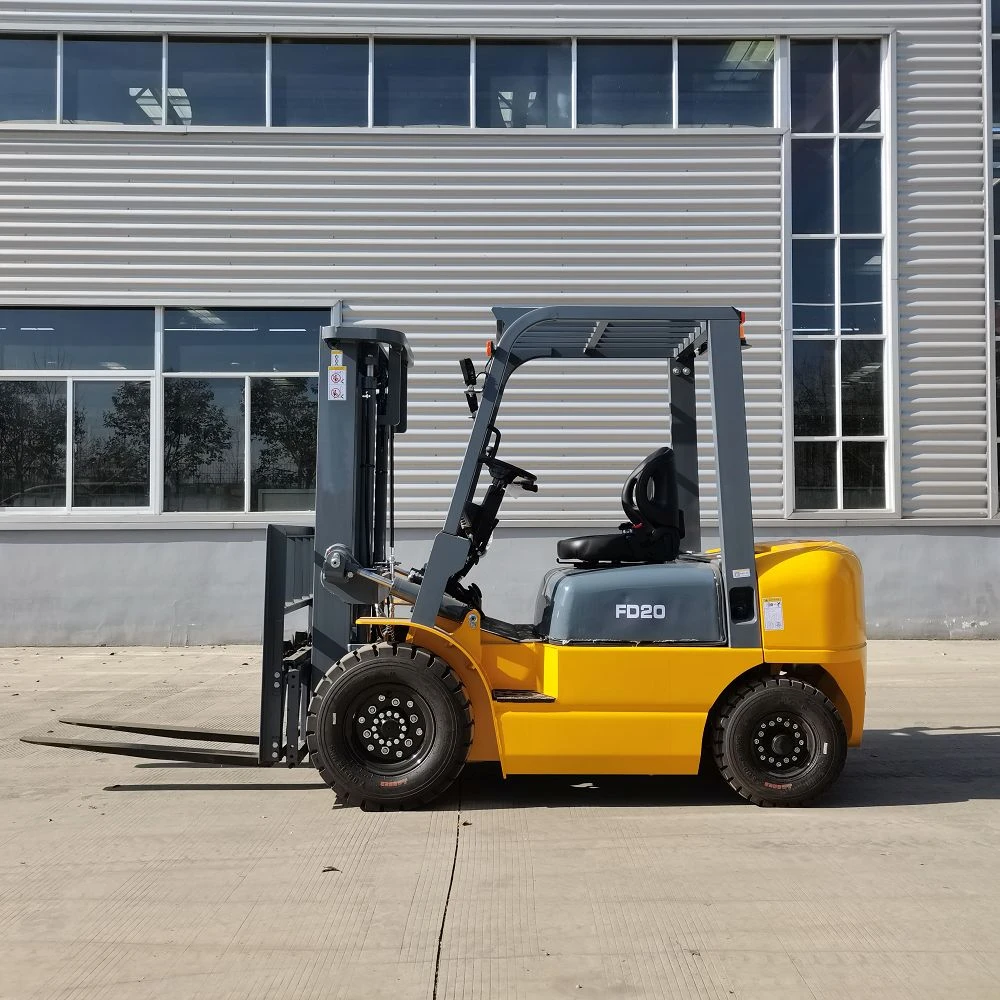

FD20 2-Ton Diesel Forklift
1. Compact & Flexible Body
With a body width of only 1150 mm, this 2-ton forklift has excellent spatial adaptability and flexibility, ideal for narrow aisles and medium-heavy cargo handling.
The FD20 engine features an independent channel intake design, blocking dust and boosting intake for full combustion and stronger power. Optimized cooling system protects key components.
Equipped with a high-performance braking system with vacuum assist and full hydraulic assist, greatly improving service and emergency braking safety.
High-pressure common rail engine delivers strong power, good cold start and low failure rate. Load-sensitive hydraulic system enables full-load lifting at idle, reducing fuel consumption.
Perfectly used in warehouses, logistics centers, factories and workshops, especially for narrow-aisle and medium-heavy material handling.
 |  |
 |  |  |
 |  |  |
 |  |  |
Parameters
Model | FD20 | |||
Power Type | Diesel | |||
Rated Capacity | kg | 2000 | ||
Load Centre | mm | 500 | ||
Lift Height | mm | 3000 | ||
Fork Size(L×W×T ) | mm | 1070×120×40 | ||
Mast Tilt Angle(F/R) | Deg | 6°/12° | ||
Front Overhang (Wheel center to fork face) | mm | 465 | ||
Ground Clearance(Bottom of mast) | mm | 110 | ||
Turning Radius (outside) | mm | 2310 | ||
Max.Gradeability (No load/Full load) | % | 20 | ||
Wheelbase | mm | 1600 | ||
Service weight | kg | 3590 | ||
Overall Dimension | Length to face of fork(Without fork) | mm | 2595 | |
Overall Width | mm | 1150 | ||
Mast Lowered Height | mm | 2070 | ||
Mast Extended Height(With backrest) | mm | 4070 | ||
Overhead Guard Height | mm | 2070 | ||
Speed | Travel (Full load) | km/h | 19 | |
Lifting (Full load) | mm/s | 530 | ||
Tire | Front | mm | 7.00-12-12PR | |
Rear | mm | 6.00-9-10PR | ||
Battery | Voltage/Capacity | V/Ah | 12/80 | |

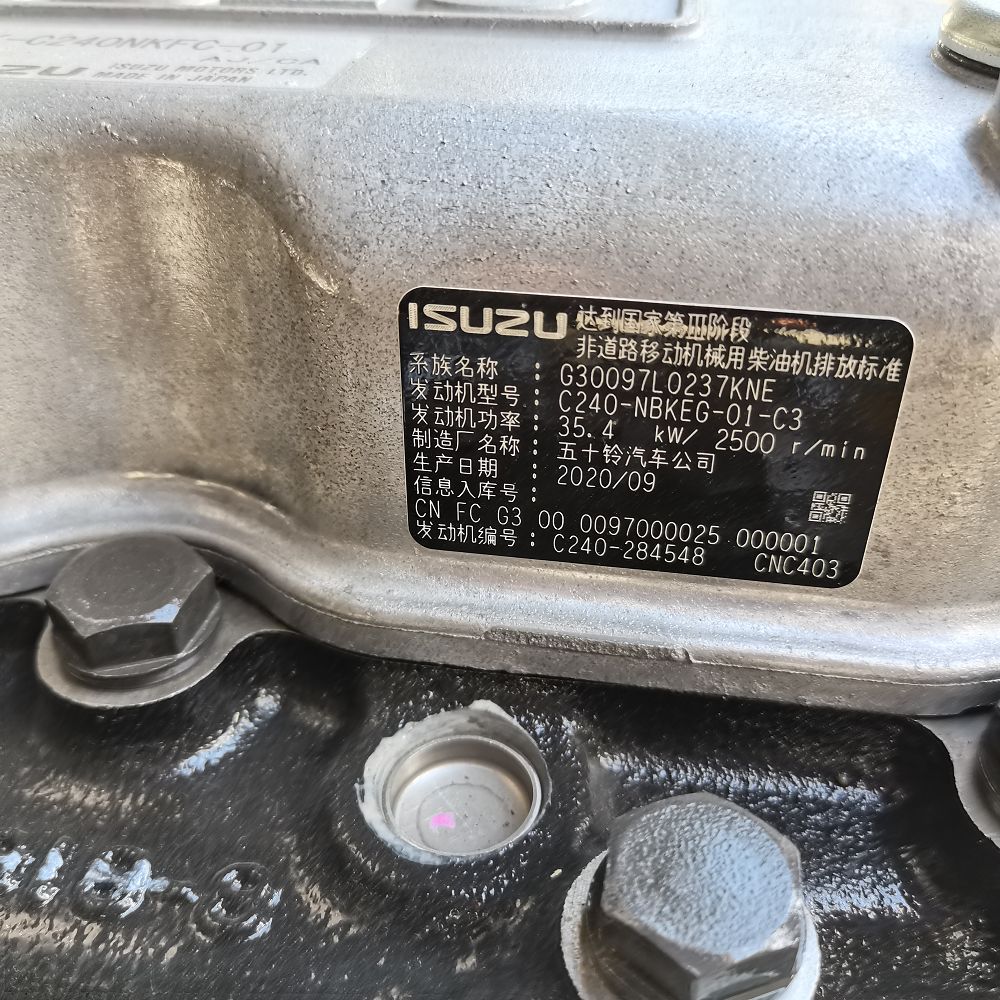

Engine | Model | C240 | C490 | |
Manufacture | ISUZU | XINCHAI | ||
Rated output/r.p.m. | kw | 35.4/2500 | 40/2650 | |
Rated torque/r.p.m. | N·m | 137.7/1800 | 160/1600-2000 | |
No.of Cylinder | 4 | 4 | ||
Bore×Stroke | mm | 86×102 | 90x105 | |
Displacement | cc | 2369 | 2670 | |
Fuel Tank Capacity | L | 60 | 45 | |
Transmission | Type | Hydraulic | Hydraulic | |
Stage(FWD/RVS) | 1/1 | 1/1 | ||
With technological innovation, our product configuration and parameters will continue to change without notice;
If there is any doubt, the specific confirmation of our international trade sales shall prevail;
