China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 1.5t mini excavator | jh8015 in China. With abundant experience, we warmly welcome you to buy cheap 1.5t mini excavator | jh8015 made in China here from our factory. For price consultation, contact us.
Key Features
Kubota Euro V Engine:
Intelligent power matching for low fuel consumption and reliable performance
Compact Design:
Tailless, 3.3m length, ideal for narrow
spaces ≥1m
Hydraulic System:
20MPa dual-circuit for fast attachment changes
Multi-Attachment Ready:
Breaker, auger, hydraulic shear compatible
Telescopic Tracks:
0.9–1.3m adjustable for stability and passability
Operator Comfort:
Suspension seat, hydraulic pilot control, optional enclosed cab
 |  |
Applications
Municipal Engineering
Subway entrances, tree transplantation, smart manhole installation
Construction & Renovation
Basement excavation, indoor demolition, apartment projects
Agriculture & Forestry
Orchards, greenhouses, farm management
Emergency & Confined Spaces
Disaster repair, warehouses, shipyards
 |  |
Parameters
| Model | JH8015 | |
| ENGINE | Emission Standard | Euro 5,EPA4 |
| Make /Model | KUBOTA /D722 | |
| Power /Rotation speed | 10.2kw(14HP)@2500rpm | |
| Number of cylinder | 3 | |
| TRACK SYSTEM | Maximum Travel speed | 3.5/2.1km/h(optional) |
| Width of track shoe | 200mm | |
| PERFORMANCE PARAMETER | Standard Bucket capacity | 0.025m³ |
| Swing speed | 12~13rpm | |
| Maximum Grade ability | 58%(30°) | |
| Maximum Bucket digging force | 9KN | |
| Maximum Arm digging force | 5.5KN | |
| Hydraulic system pressure | 20Mpa | |
| Machine weight(with canopy) | 1350kg | |
| Machine weight(with closed cabin) | 1480kg | |
| Boom length | 1700mm | |
| Arm length | 800mm | |
| Fuel tank capacity | 14.5L | |
| Hydraulic oil tank capacity | 14.5L | |

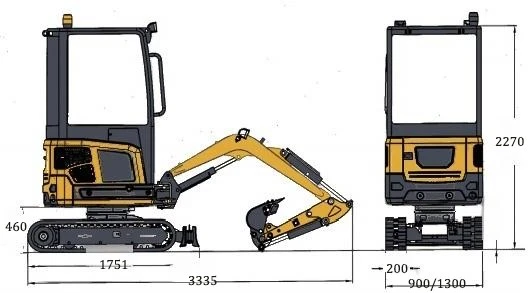

Main Dimensions
 |
| MACHINE SIZE | Overall dimension (L*W*H) | 3329mm*990/1300mm*2267mm |
| Axle base(Track length on ground) | 1190mm | |
| Length of rubber track | 1600mm | |
| Track gauge | 790/1100mm | |
| Minimum Ground clearance | 153mm | |
| Swing radius at tail | 655mm | |
| Swing radius at front | 1812mm | |
| WORKING RANGE | Maximum Digging height | 2955mm |
| Maximum Dumping height | 2077mm | |
| Maximum Digging depth | 2017mm | |
| Maximum Vertical digging depth | 1610mm | |
| Maximum Digging distance | 3529mm | |
| Maximum Lifting height of blade | 236mm | |
| Maximum Cutting depth of blade | 229mm | |
| Boom swing angle(Left/Right) | 50°/52° |
