China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 4t mini excavator | jh8035 in China. With abundant experience, we warmly welcome you to buy cheap 4t mini excavator | jh8035 made in China here from our factory. For price consultation, contact us.
Key Features
Comfortable Driving Experience
Fully enclosed AC cab meets ROPS/FOPS standards. Spacious, low noise, comfortable for long working hours.
Efficient Power & Hydraulic System
Separate engine & cooling design for better heat dissipation. Hydraulic pilot control, load-sensitive pump for precision, efficiency and energy saving.
Multi-function Attachment
Quick-change system & dual-circuit hydraulics, compatible with 20+ attachments.
Durable Structure
High-strength walking frame, stable performance on rough terrain. Optional wear-resistant steel tracks for long service life.
Why JH8035 has been one of our best sellers for years?
Because this is a REAL heavy duty 4 ton machine.Net weight 3800kg, operating weight can up to 4000kg.
Specially designed for demanding daily works like:
• #Construction works
• #Forestry trenching
• #Farm works
• Heavy duty #digging jobs
When you compare it with many other 3.5 ton models in the market, you can easily see the difference:JH8035 is much bigger and stronger.
The joint parts and counterweight all use cast steel technology, built for long term tough working conditions.
Standard features include:
✔ Zero tail
✔ Swing boom
✔ Two speeds(H/L speed)
✔ Closed cabin with AC & heater
✔ Air suspension seat
✔ CE Certificate
✔ Kubota D1703 EPA4 / Euro5 engine
✔ 18.2KW power
✔ Extra hydraulic pipeline for hammer and other attachments
✔ Load-sensing system
The whole hydraulic system uses top brands like Hengli, LCK,smooth and reliable.
We also provide optional extra counterweight:+150kg or +300kg
You can customize the whole machine depending on your project needs.
Want more info? Contact me right now!
#Excavator #factory since 1996! #shandong province #taian city.
 |  |
Applications
Super projects:
Bridges, pipe corridors, airport runways.
Construction:
Foundation excavation, steel structure
Installation.Agriculture & forestry:
Farmland, orchard management.
Industry & special:
Port handling, mining assistance.
Military:
Field fortifications, positions, outposts.
 |  |
Parameters
| Model | JH8035 | |
>>>> SPECIFICATIONS: | ||
| ENGINE | Emission Standard | Euro V /EPA |
| Make /Model | KUBOTA/D1703 | |
| Power/Rotation speed | 18.2kw(25HP)@2200rpm | |
| Number of cylinder | 3 | |
| Type | In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated | |
| Max.torque | 97.4N.m/1500rpm | |
| Displacement | 1.642L | |
| TRACK SYSTEM | Maximum Travel speed(High-Low speed) | 4.4/2.4km/h |
| Width of track shoe(Rubber ) | 300mm | |
| Carrier roller(one side) | 1 | |
| Support wheel(one side) | 3 | |
| PERFORMANCE PARAMETER | Standard Bucket capacity | 0.12m³ |
| Swing speed | 12rpm | |
| Maximum Grade ability | 58%(30°) | |
| Ground pressure | 32Kpa | |
| Max. Bucket digging force | 30.4KN | |
| Max. Arm digging force | 18.2KN | |
| Hydraulic system pressure | 22.5Mpa | |
| Machine weight | 3810kg | |
| Boom length | 2535mm | |
| Arm length | 1400mm | |
| Fuel tank capacity | 40L | |
| Hydraulic oil tank capacity | 44L | |
| Engine oil capacity | 7L | |
| Radiator capacity | 3.8L | |
| Final drive | 2*0.7L | |

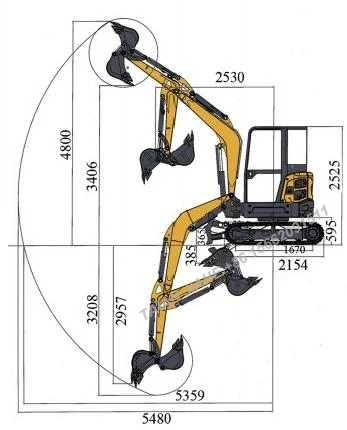

Main Dimensions
 |  |
 |
| MACHINE SIZE | Overall dimension (L*W*H) | 4915mm*1720mm*2525mm |

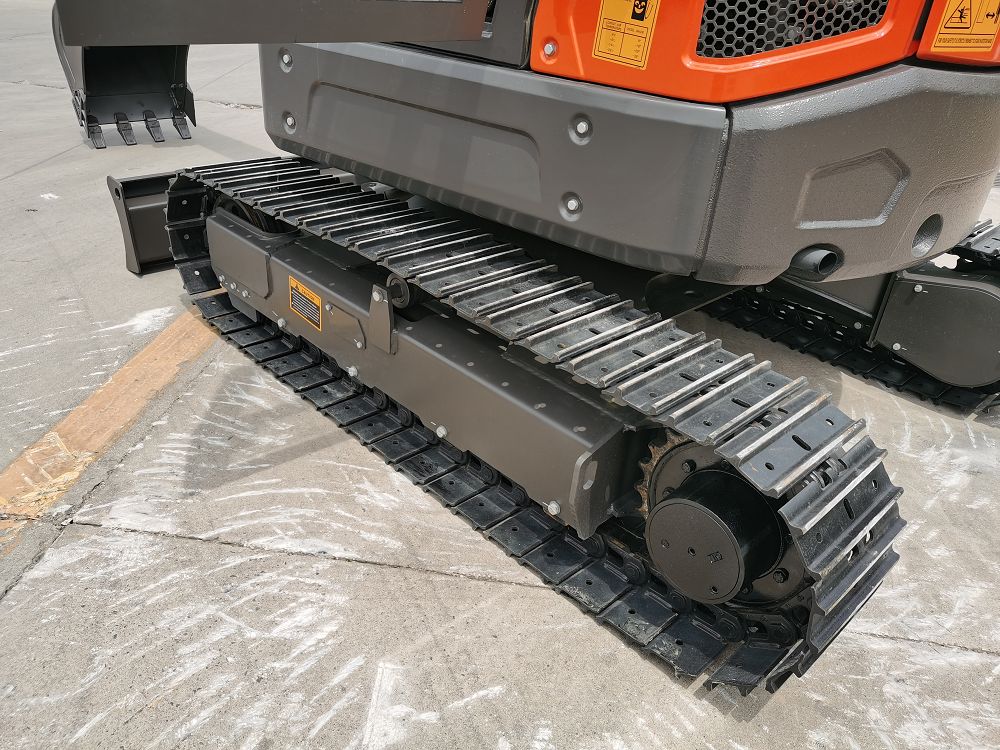

| Axle base(Track length on ground) | 1670mm | |
| Length of rubber trac | 2154mm | |
| Track gauge | 1420mm | |
| Min.Ground clearance | 295mm | |
| Swing radius at tail | 860mm | |
| Swing radius at front | 2538mm | |

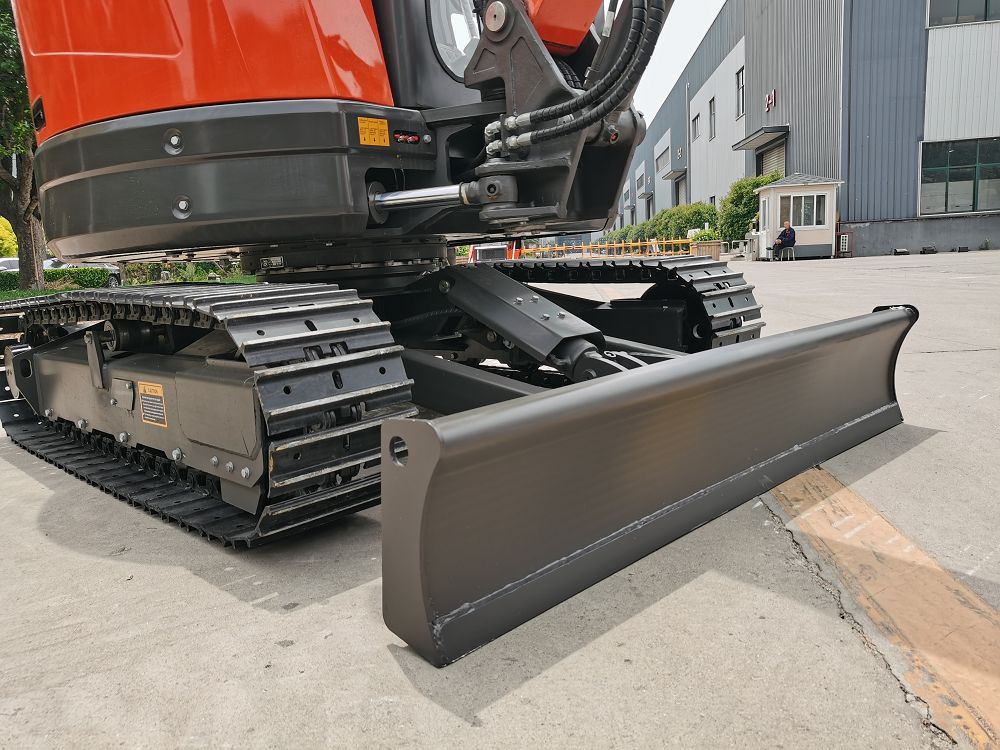

| Height of blade | 350mm | |
| WORKING RANGE | Maximum Digging height | 4800mm |
| Maximum Dumping height | 3406mm | |
| Maximum Digging depth | 3208mm | |
| Max. Vertical digging depth | 2957mm | |
| Maximum Digging distance(working radius) | 5480mm | |
| Maximum digging distance (on ground) | 5359mm | |
| Minimum swing radius | 2530mm | |
| Max.height when min.swing radius | 3655mm | |
| Maximum Lifting height of blade | 365mm | |
| Maximum Cutting depth of blade | 385mm | |
| Boom swing angle(Left/Right) | 55°/65° |
