China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 0.6t mini excavator | jh8006 in China. With abundant experience, we warmly welcome you to buy cheap 0.6t mini excavator | jh8006 made in China here from our factory. For price consultation, contact us.
Key Features
The smallest JIAHE crawler excavator, the JH8006, features a powerful gasoline engine and zero-tail design.Ideal for tight spaces and light-duty work. With a 600 kg operating weight and a slim 700 mm width, it easily accesses narrow job sites such as farms, gardens, and indoor projects.
Compact Power:
Longxin G300FA gasoline engine,6.8 kW / 3600rpm, EPA 4 & Euro 5 compliant, perfect for precision work in tight spaces
Reliable Hydraulics:
Equipped with top-brand pump, valves, slewing and driving motors for smooth and consistent performance
Flexible Undercarriage:
Rubber tracks reduce ground damage and provide stability on soft or uneven terrain
Lightweight & Maneuverable:
Open canopy design and minimal footprint allow operation in narrow lanes and indoor sites
Precision Digging:
0.01 m³ bucket capacity enables fine excavation for small-scale projects
 |  |
Applications
Residential & Urban
Sidewalk repair, landscaping, flowerbed and garden digging
Agriculture & Nursery
Small trenching, orchard maintenance, greenhouse work
Industrial & Light Construction
Pipeline installation, minor site preparation, confined-space excavation
Special Projects
Utility repairs, small-scale renovations, indoor or basement digging
 |  |
Parameters
| Model | JH8006 | |
ENGINE | Engine Model | Loncin / G300FA |
Fuel Injection | ||
Four strokes | ||
Water cooling | Air Cooled | |
Turbo-charging | Normally Aspirated | |
Air to air intercooler | - | |
No. of cylinders | - | |
Rated power/speed | 6.8kw/2500rpm | |
Maximum torque/speed | 20.3N/2500rpm | |
Displacement | 0.302L | |
Main performance | Swing speed | 12r/min |
Grade-ability | 35% | |
Bucket digging force | 7.45KN | |
Arm digging force | 4.5KN | |
Maximum tractive force | 3.8*2KN | |
Hydraulic system | Main pump | Tianjing xingzou |
Rated flow of main pump | 19.4L/Min | |
Main safety valve pressure | 20MPa | |
Undercarriage | Travel speed(H/L) | 1.8km/h |
Ground pressure | 18.5KPa | |
Track roller number | 2*2 | |
Track number | 35 | |
Oil Capacity | Fuel tank capacity | 5.5L |
Hydraulic tank capacity | 8L | |
Engine oil capacity | 0.95L | |
Coolant | / | |
Final drive | / | |

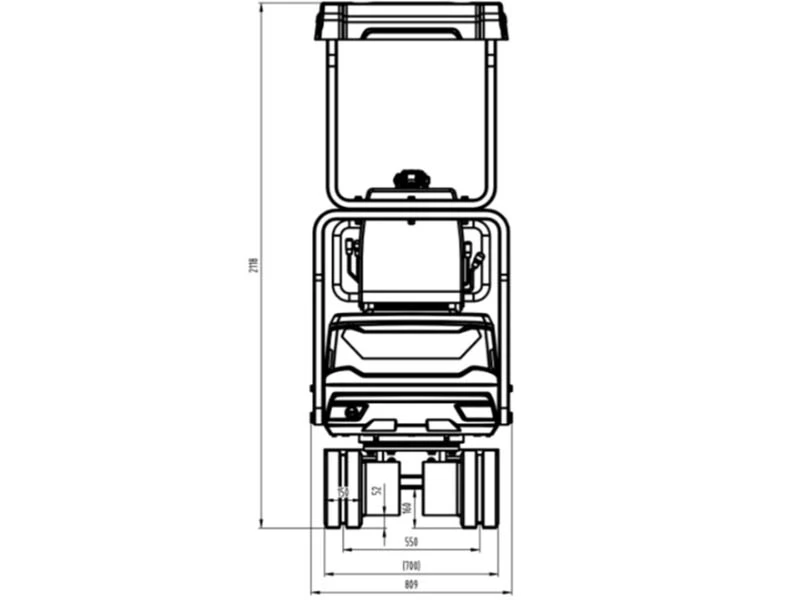

Main Dimensions
 |  |
MACHINE SIZE | Overall length | 2235mm |
Overall width | 700mm | |
Overall height | 1619mm | |
Overall height(cab top) | 2117mm | |
Counter weight clearance | 376mm | |
Min.ground clearance | 160/52mm | |
Min.tail swing radius | 619mm | |
Track ground length | 773mm | |
Track length | 1081mm | |
Track gauge | 550mm | |
Track width | 150mm | |
Track shoes width(std) | 150mm | |
Turn-able width | 700mm | |

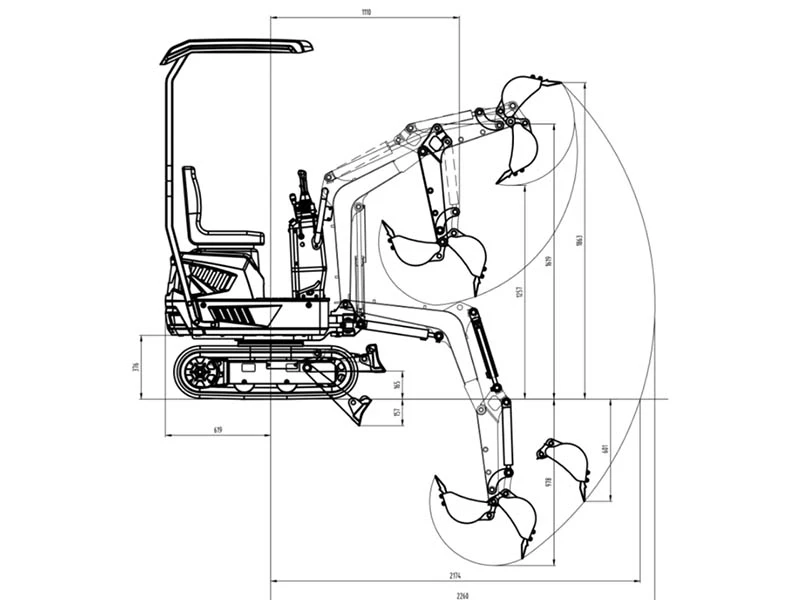

WORKING RANGE | Max.digging height | 1863mm |
Max.dumping height | 1257mm | |
Max.digging depth | 978mm | |
Max.vertical wall digging depth | 601mm | |
Max.digging reach | 2260mm | |
Max.digging reach at ground level | 2174mm | |
Min.swing radius | 1110mm | |
Min.height at min.swing radius | 2117/1619mm | |
Counter weight height | 376mm | |
Ground length(Transportation) | 2183mm | |
Standard | Length of boom | 1010mm |
Length of arm | 545mm | |
Bucket capacity | 0.01m³ |
