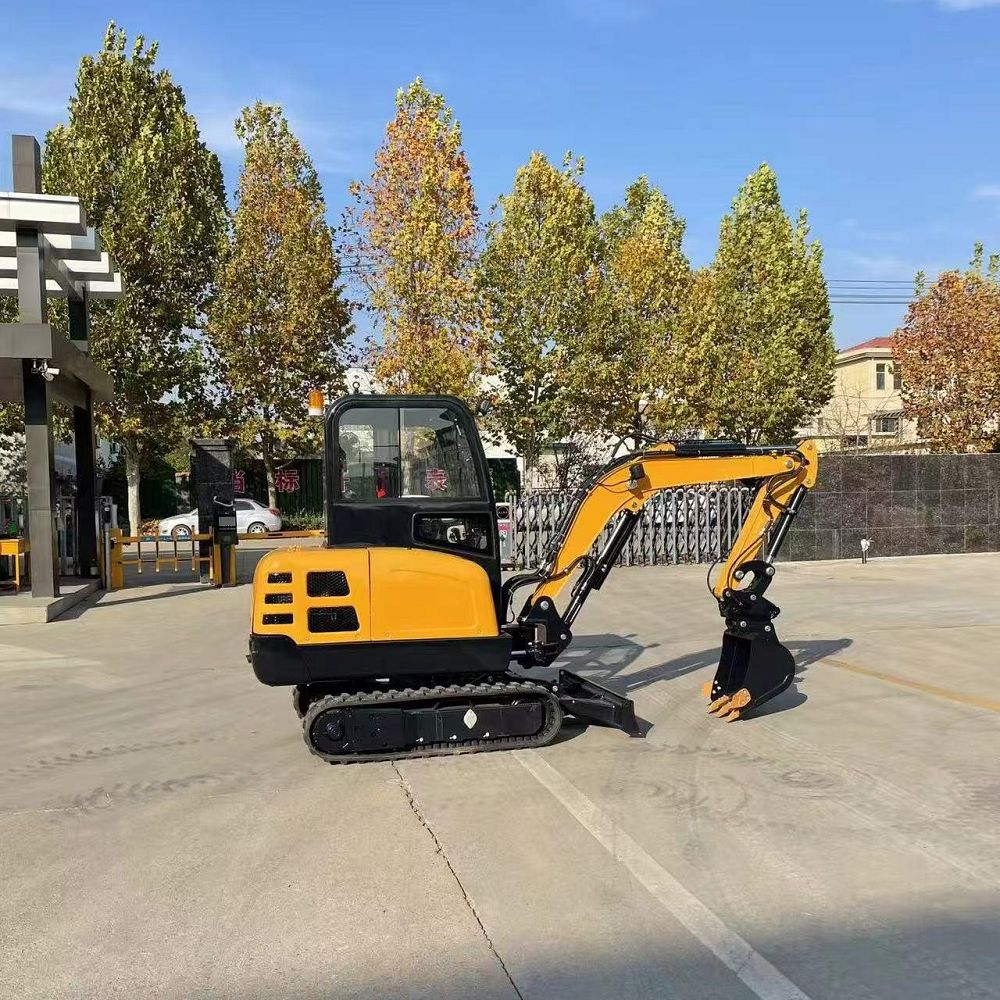

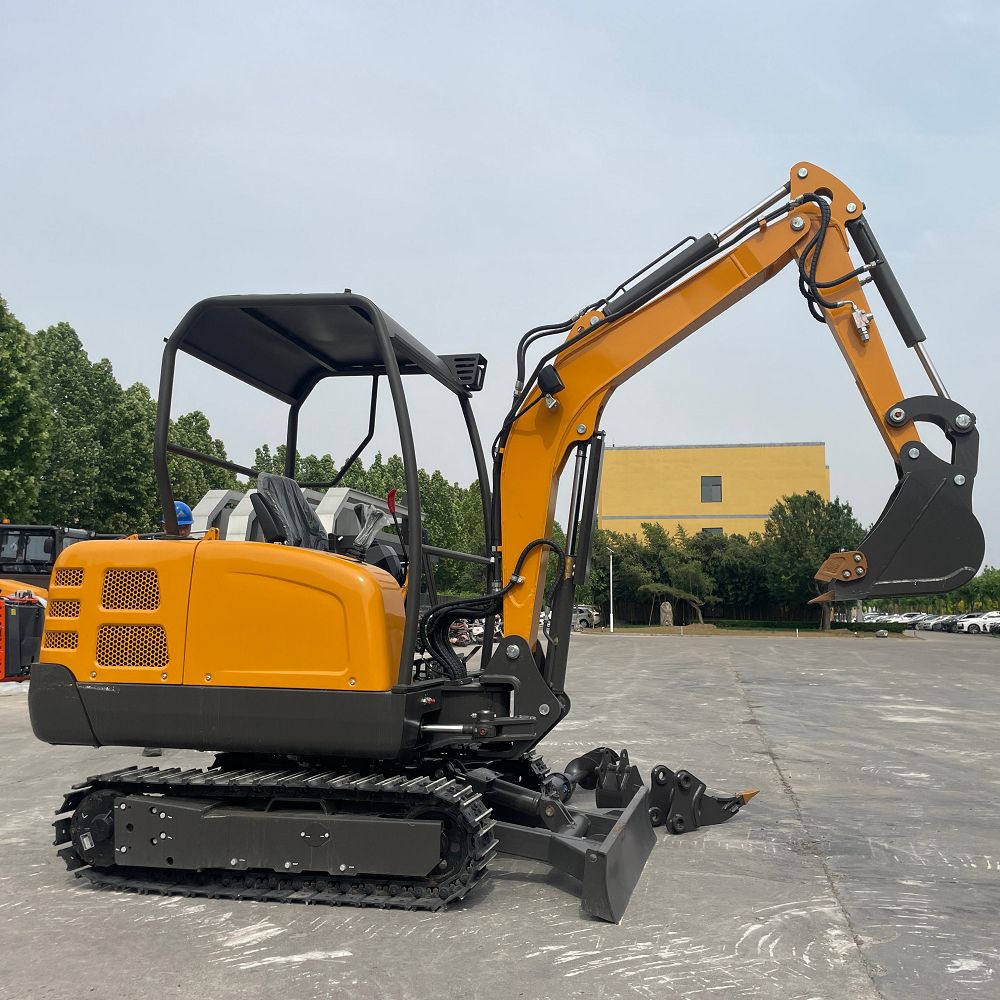

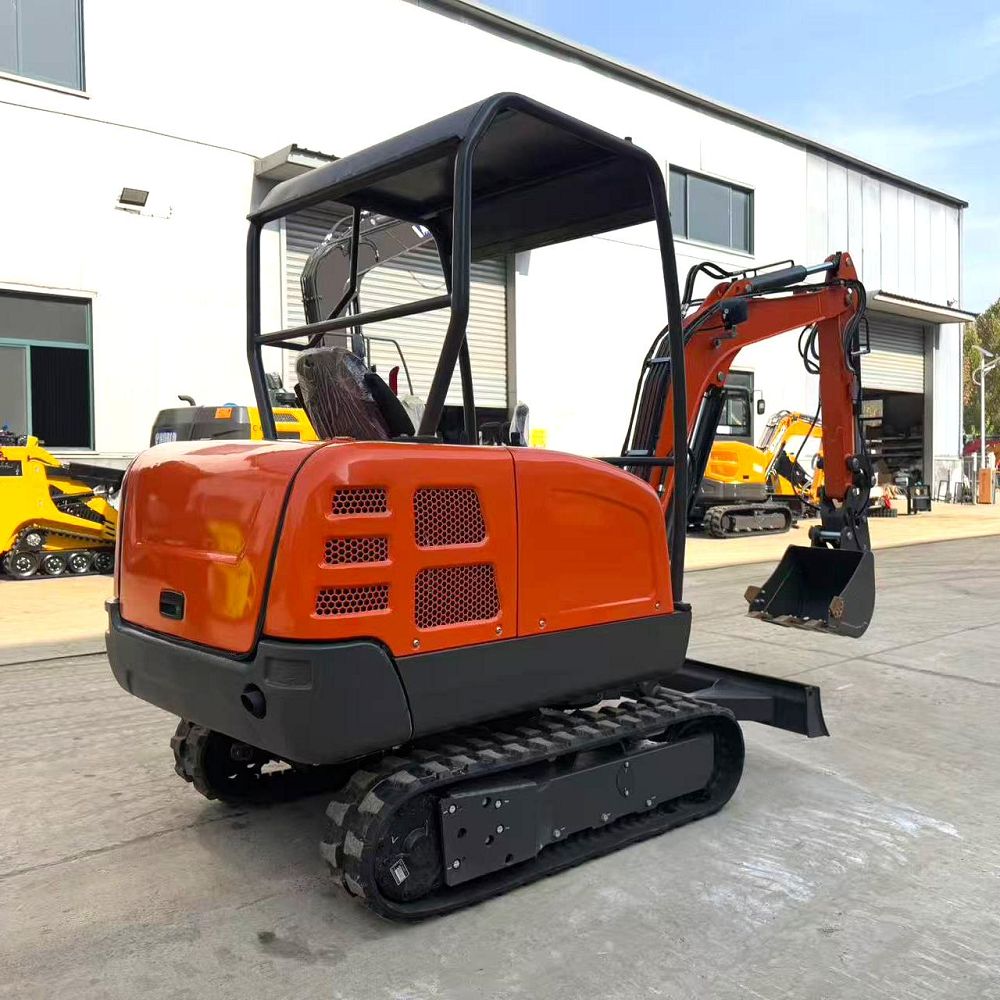

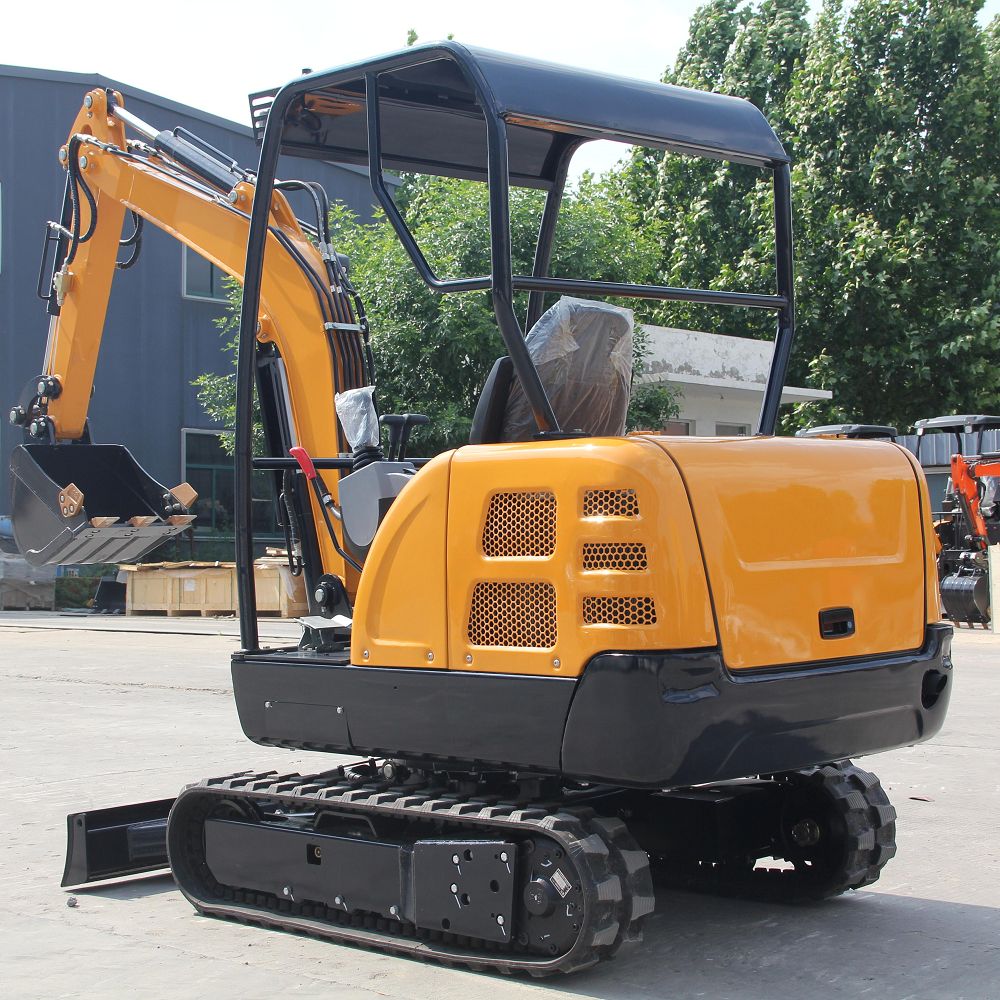

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 2.2t mini excavator | jh8022 in China. With abundant experience, we warmly welcome you to buy cheap 2.2t mini excavator | jh8022 made in China here from our factory. For price consultation, contact us.
Key Features
High-Strength Structure:
Reinforced frame, steel plates, and robot-welded design for impact resistance and long service life
Advanced Hydraulic System:
Precise, responsive operation; optional rubber or steel tracks for all terrains
Multi-Attachment Capability:
Dual-line quick-coupler supports breakers, 4-in-1 buckets, augers, and other tools
Modular Components:
Rapid replacement reduces downtime; CE-certified ergonomic cab with optional AC and monitoring
Durable & Efficient:
Designed for continuous demanding tasks with low maintenance
 |  |
Applications
Municipal:
Sidewalk renovation, pipe networks, greening and landscaping
Construction:
Basement excavation, indoor demolition, foundation work, high-speed rail platforms
Agriculture & Forestry:
Orchards, farmland water management, tree planting
Industrial:
Plant maintenance, equipment installation, logistics
 |  |
Parameters
| Model | JH8022 | |
>>>> SPECIFICATIONS: | ||
ENGINE | Emission Standard | EPA4,Euro 5 |
Make /Model | Kubota D1105 engine | |
Power /Rotation speed | 14kw(19HP)@2000rpm | |
Number of cylinder | 3 | |
TRACK SYSTEM | Maximum Travel speed | 2.5km/h |
Width of track shoe | 230mm | |
Number of track shoe per side | 38pcs | |
Number of upper roller per side | 0 | |
Number of bottom roller per side | 4 | |
PERFORMANCE PARAMETER | Standard Bucket capacity | 0.1m³ |
Swing speed | 12rpm | |
Maximum Grade ability | 30° | |
Maximum Bucket digging force | 15.3KN | |
Maximum Arm digging force | 10.5KN | |
Hydraulic system pressure | 18Mpa | |
Machine weight | 2200kg | |
Boom length | 1850mm | |
Arm length | 1000mm | |
Main Dimensions
 |
 |  |
MACHINE SIZE | Overall dimension (L*W*H) | 4170mm*1300mm*2280mm |
Axle base(Track length on ground) | 1230mm | |
Track gauge | 1070mm | |
Min.Ground clearance | 230mm | |
Swing radius at tail | 1180mm | |

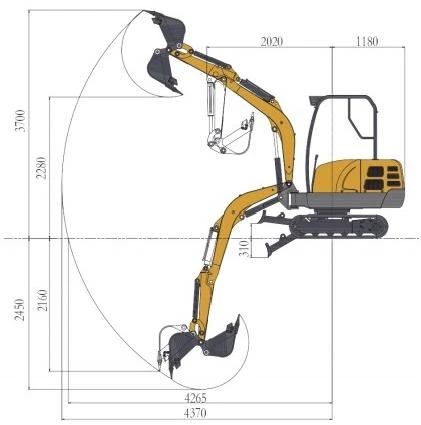

WORKING RANGE | Maximum Digging height | 3700mm |
Maximum Dumping height | 2290mm | |
Maximum Digging depth | 2450mm | |
Maximum Vertical digging depth | 2160mm | |
Maximum Digging radius | 4370mm | |
Minimum swing radius | 2020mm | |
Maximum Lifting height of blade | 240mm | |
Maximum Cutting depth of blade | 310mm | |
Boom swing angle(Left/Right) | 70°/50° |
