China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 2.5t mini excavator | jh8025 in China. With abundant experience, we warmly welcome you to buy cheap 2.5t mini excavator | jh8025 made in China here from our factory. For price consultation, contact us.
Key Features
KUBOTA D1105 engine, 14kW/2200rpm, EPA 4, Euro 5 – reliable power with low fuel consumption.
CHINA brand pump, valves, slewing and driving motors for stable hydraulic performance.

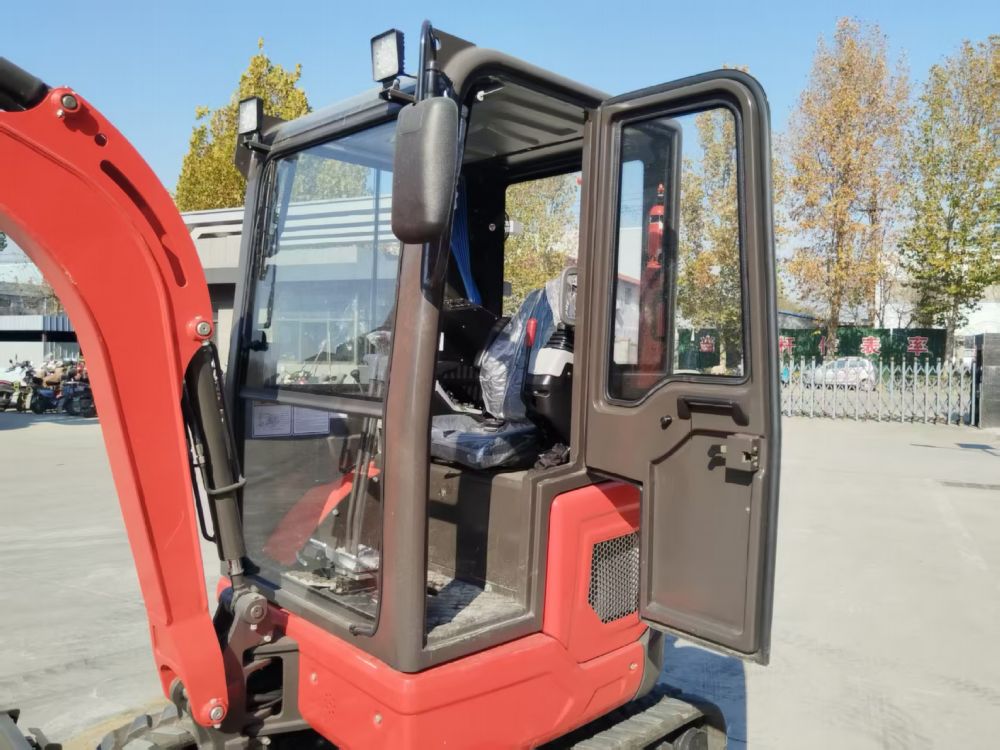

Closed cabin with AC and hydraulic pilot servo system for precise, comfortable operation.
250mm rubber tracks for excellent traction and mobility in urban and soft-ground sites.

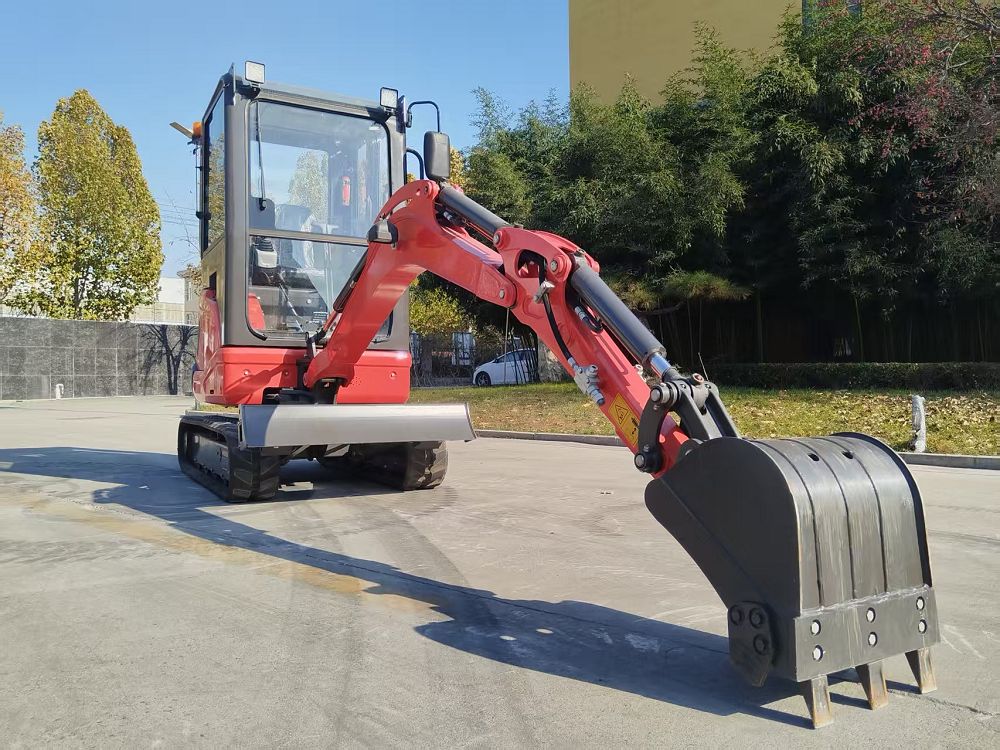

Equipped with breaker pipeline system, 0.07m³ bucket, and dozer blade for versatile tasks.
 |  |
Applications
Municipal and urban construction: road repair, sidewalk paving, pipeline installation.
Confined-space excavation: basements, small-scale demolitions, indoor projects.
Landscaping and agricultural work: orchard maintenance, farm construction.
Industrial and special projects: warehouse digging, small-scale foundation works.
 |  |
Parameters
| Model | JH8025 | |
ENGINE | Model | Kubota D1105 |
Fuel Injection | Direct Injection | |
Four strokes | 4 | |
Water cooling | Water Cooled | |
Turbo-charging | Normally Aspirated | |
Air to air intercooler | - | |
No. of cylinders | 3 | |
Rated power/speed | 14kw/2200rpm | |
Maximum torque/speed | 70.3N/1600m | |
Displacement | 1.123L | |
Main performance | Swing speed | 10r/min |
Grade-ability | 35% | |
Bucket digging force | 15.2KN | |
Arm digging force | 9.2KN | |
Maximum tractive force | 38.4Kn | |
Hydraulic system | Main pump | Lezhuo |
Rated flow of main pump | 48.4L/Min | |
Main safety valve pressure | 23MPa | |
Undercarriage | Travel speed(H/L) | 4.3/2.5km/h |
Ground pressure | 26.5KPa | |
Track roller number | 3*2 | |
Track number | 86*2 | |
Oil Capacity | Fuel tank capacity | 22L |
Hydraulic tank capacity | 20L | |
Engine oil capacity | 5.1L | |
Coolant | 8L | |
Final drive | 0.3L | |
Main Dimensions
MACHINE SIZE | Overall length | 3555mm |
Overall width | 1200/1500mm | |
Overall height | 2720mm | |
Overall height(cab top) | 2405mm | |
Counter weight clearance | 484mm | |
Min.ground clearance | 166mm | |
Min.tail swing radius | 810mm | |
Track ground length | 1530mm | |
Track length | 1923mm | |
Track gauge | 950/1250mm | |
Track width | 250mm | |
Track shoes width(std) | 250mm | |
Turn-able width | 1200mm | |
WORKING RANGE | Max.digging height | 3675mm |
Max.dumping height | 2440mm | |
Max.digging depth | 2628mm | |
Max.vertical wall digging depth | 2098mm | |
Max.digging reach | 4225mm | |
Max.digging reach at ground level | 4165mm | |
Min.swing radius | 1771mm | |
Min.height at min.swing radius | 2720mm | |
Counter weight height | 484mm | |
Ground length(Transportation) | 3963mm | |
Standard | Length of boom | 2000mm |
Length of arm | 950mm | |
Bucket capacity | 0.07m³ |
