China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 6.5t small excavator | jh8065 in China. With abundant experience, we warmly welcome you to buy cheap 6.5t small excavator | jh8065 made in China here from our factory. For price consultation, contact us.
Key Features
Upgraded Structure & Stability
The front boom is redesigned to a side boom, and the track width is increased by 8cm for better stability.
Optional Engine
Kubota engine is available to meet different customer emission requirements.
Comfortable Operation
Closed cabin with A/C seals out dust and noise, keeping operators comfortable and safe during long work.
Reliable Power & Protection
High-performance engine delivers strong, stable power with high efficiency and reliability.High-strength engine hood fully protects core components.
Durable Performance
Reinforced boom structure ensures high durability, smooth movement and stable performance in tough conditions.Wear-resistant tracks provide strong traction and stability on all terrains.
 |  |
Applications
Municipal:
pipe reconstruction, road widening, bridge maintenance.
Infrastructure:
foundation excavation, roadbed filling, site leveling.
Agricultural water conservancy:
farmland reconstruction, river dredging.
Mining & earthwork:
heavy excavation, loading, quarry work.
Demolition:
concrete breaking, waste handling.
 |  |
Parameters
| Model | JH8065 | |
>>>> SPECIFICATIONS: | ||
ENGINE | Emission Standard | Euro V /EPA |
Make /Model | Kubota/V2607 | |
Power /Rotation speed | 42kw@2000rpm | |
Type | Diesel with water-cooled, | |
TRACK SYSTEM | Maximum Travel speed | 2.4/4.3 km/h |
Width of track shoe | 400mm | |
Number of track shoe per side | 40pcs | |
Number of upper roller per side | 1 | |
Number of bottom roller per side | 5 | |
PERFORMANCE PARAMETER | Standard Bucket capacity | 0.21m³ |
Swing speed | 11rpm | |
Maximum Grade ability | 35°(70%) | |
Maximum Bucket digging force | 48KN | |
Maximum Arm digging force | 35KN | |
Hydraulic system pressure | 28Mpa | |
Machine weight | 5900kg | |
Fuel tank | 87L | |
Hydraulic oil tank | 100L | |

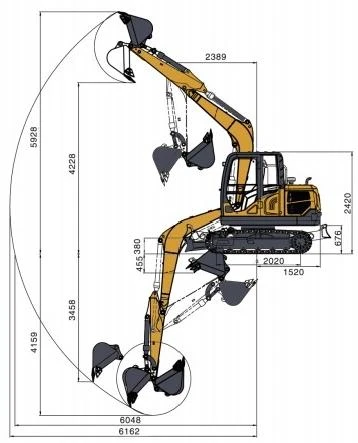

Main Dimensions
 |  |
 |
MACHINE SIZE | Overall dimension (L*W*H) | 5802mm*1960mm*2420mm |
Height of cabin | 2600mm | |
Track length on ground(Axle base) | 1990mm | |
Track gauge | 1560mm | |
Minimum Ground clearance | 353mm | |
Swing radius at tail | 1520mm | |
WORKING RANGE | Maximum Digging height | 5928mm |
Maximum Dumping height | 4228mm | |
Maximum Digging depth | 4158mm | |
Maximum Vertical digging depth | 3458mm | |
Maximum Digging radius | 6162mm | |
Minimum swing radius | 2389mm | |
Maximum Lifting height of blade | 380mm | |
Maximum Cutting depth of blade | 455mm |
