China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 7.5t small excavator | jh8075 in China. With abundant experience, we warmly welcome you to buy cheap 7.5t small excavator | jh8075 made in China here from our factory. For price consultation, contact us.
Key Features
High-Performance Engine
Stable and strong power output for excavation, loading, crushing and various working conditions.
Advanced Hydraulic System
Load-sensitive pump & pilot control for fast response, smooth operation and high efficiency.
High-Strength Body
Key parts made of wear-resistant steel with reinforced welding, strong impact resistance for harsh environments.
Comfortable & Safe Cab
Fully enclosed cab with dustproof, noise reduction and shock-absorbing design for long-time operation.
Durable & Low Maintenance
Wear-resistant tracks and bearings, reduced maintenance and longer service life.
 |  |
Applications
Municipal:
Pipe reconstruction, road widening, bridge maintenance.
Infrastructure:
Foundation excavation, roadbed filling, site leveling.
Agricultural water conservancy:
Farmland reconstruction, river dredging.
Mining & earthwork:
Heavy excavation, loading, quarry work.
Demolition:
Concrete breaking, waste handling.
 |  |
Parameters
| Model | JH8065 | |
>>>> SPECIFICATIONS: | ||
| ENGINE | Emission Standard | EPA4 |
| Make /Model | Kubota/V2607 engine | |
| Power /Rotation speed | 42.4kw@2000rpm | |
| Number of cylinder | 4 | |
| TRACK SYSTEM | Maximum Travel speed | 2.5/4.5km/h |
| Width of track shoe | 450mm | |
| Number of track shoe per side | 39pcs | |
| Number of upper roller per side | 1 | |
| Number of bottom roller per side | 5 | |
| PERFORMANCE PARAMETER | Standard Bucket capacity | 0.28m³ |
| Swing speed | 11rpm | |
| Maximum Grade ability | 35° | |
| Maximum Bucket digging force | 56KN | |
| Maximum Arm digging force | 38KN | |
| Hydraulic system pressure | 27Mpa | |
| Machine weight | 7500kg | |
| Fuel tank | 120L | |
| Hydraulic oil tank | 100L | |

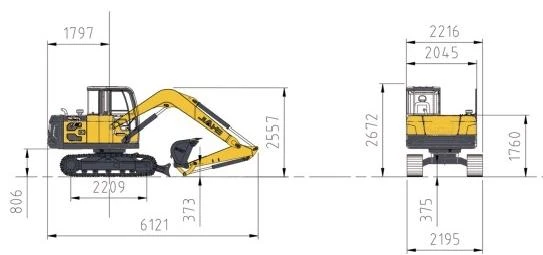

Main Dimensions
 |  |
| MACHINE SIZE | Overall dimension (L*W*H) | 6121mm*2195mm*2672mm |
| Height of cabin | 2672mm | |
| Track length on ground(Axle base) | 2209mm | |
| Track gauge | 1745mm | |
| Minimum Ground clearance | 375mm | |
| Swing radius at tail | 1797mm | |

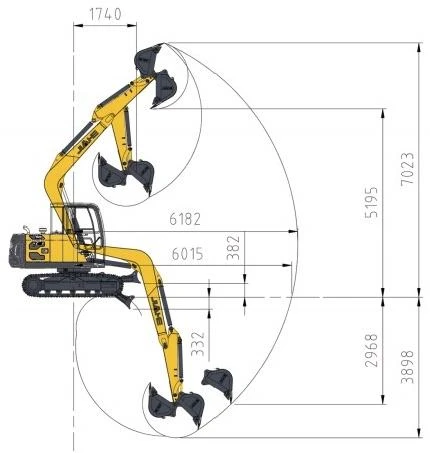

| WORKING RANGE | Maximum Digging height | 7023mm |
| Maximum Dumping height | 5195mm | |
| Maximum Digging depth | 3898mm | |
| Maximum Vertical digging depth | 2968mm | |
| Maximum Digging radius | 6182mm | |
| Minimum swing radius | 1740mm | |
| Maximum Lifting height of blade | 382mm | |
| Maximum Cutting depth of blade | 332mm |
