China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 9t small excavator | jh8090 in China. With abundant experience, we warmly welcome you to buy cheap 9t small excavator | jh8090 made in China here from our factory. For price consultation, contact us.
Highlights
Powerful & Fuel-Efficient Engine
Equipped with an internationally branded engine, strong power and energy-saving. Advanced turbocharging ensures stable performance even on plateaus.
Wide Visibility & Safe Operation
Enlarged windows greatly reduce blind spots, delivering clear view and higher safety for daily working.
Efficient Heat Dissipation
Funnel-shaped fan cover optimizes air intake and cooling, keeping stable performance under long working hours.
Buffer Cylinders for Durability
Boom, arm and bucket cylinders with buffer structure reduce vibration and wear, extending service life.
 |  |
Applications
Municipal:
Pipe reconstruction, road widening, bridge maintenance.
Infrastructure:
Foundation excavation, roadbed filling, site leveling.
Agricultural water conservancy:
Farmland reconstruction, river dredging.
Mining & earthwork:
Heavy excavation, loading, quarry work.
Demolition:
Concrete breaking, waste handling.
 |  |
Parameters
| Model | JH8090 | |
>>>> SPECIFICATIONS: | ||
| ENGINE | Emission Standard | EPA4 |
| Make /Model | Cummins / QSF2.8 | |
| Power /Rotation speed | 55KW/2500rpm | |
| Number of cylinder | 4 | |
| TRACK SYSTEM | Maximum Travel speed | 2.4/4.4km/h |
| Width of track shoe | 450mm | |
| Number of track shoe per side | 39pcs | |
| Number of upper roller per side | 1 | |
| Number of bottom roller per side | 5 | |
| PERFORMANCE PARAMETER | Standard Bucket capacity | 0.4m³ |
| Swing speed | 11rpm | |
| Maximum Grade ability | 35° | |
| Maximum Bucket digging force | 58KN | |
| Maximum Arm digging force | 40KN | |
| Hydraulic system pressure | 27Mpa | |
| Machine weight | 8500kg | |
| Fuel tank | 150L | |
| Hydraulic oil tank | 120L | |

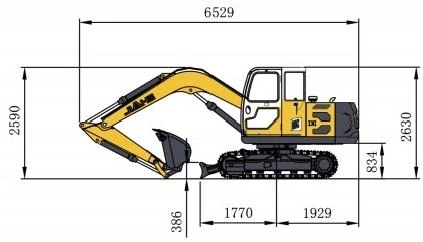

Main Dimensions
 |  |
 |
| MACHINE SIZE | Overall dimension (L*W*H) | 6529mm*2278mm*2630mm |
| Height of cabin | 2630mm | |
| Track length on ground(Axle base) | 2209mm | |
| Track gauge | 1745mm | |
| Minimum Ground clearance | 375mm | |
| Swing radius at tail | 1929mm | |

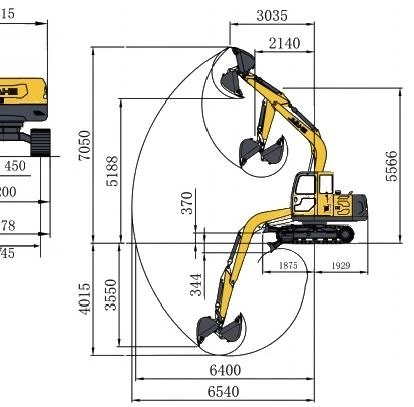

| WORKING RANGE | Maximum Digging height | 7050mm |
| Maximum Dumping height | 5188mm | |
| Maximum Digging depth | 4015mm | |
| Maximum Vertical digging depth | 3550mm | |
| Maximum Digging radius | 6540mm | |
| Minimum swing radius | 2140mm | |
| Maximum Lifting height of blade | 370mm | |
| Maximum Cutting depth of blade | 344mm |
