China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 7.5t wheel excavator | jh9075 in China. With abundant experience, we warmly welcome you to buy cheap 7.5t wheel excavator | jh9075 made in China here from our factory. For price consultation, contact us.
Key Features
Dual Control Options
Available with hydraulic pilot control or mechanical control to suit different operator preferences and working conditions.
Precise & Responsive Operation
The hydraulic pilot system provides smooth and accurate control for precision tasks such as pipeline installation and demolition work.
Versatile for Multiple Applications
Designed for a wide range of environments including city construction, road building, landscaping, and mining operations.
Strong Terrain Adaptability
Capable of operating efficiently on asphalt roads, muddy ground, and uneven terrain without performance loss.
High Traveling Speed
Allows fast relocation between job sites without the need for auxiliary transport equipment.
Easy Maintenance
Accessible service points and modular components simplify maintenance, reduce downtime, and improve long-term reliability.
 |  |
Applications
Construction · Road building · Mining · Landscaping · Utility installation
 |  |
Parameters
| Model | JH9075 | ||
ENGINE | Emission Standard | Tier 3/ Stage III | |
Make /Model | Yuchai / YC4DK85 | ||
Power /Rotation speed | 62.5kw//2200rpm | ||
Type | Diesel with water-cooled, | ||
PERFORMANCE PARAMETER | Standard Bucket capacity | 0.3m³ | |
Swing speed | 11rpm | ||
Maximum Grade ability | 25° | ||
Travel speed | 28km/h | ||
Maximum Bucket digging force | 45KN | ||
Maximum Arm digging force | 36KN | ||
Hydraulic system pressure | 24Mpa | ||
Machine weight | 7500kg | ||
Fuel tank | 125L | ||
Hydraulic oil tank | 90L | ||

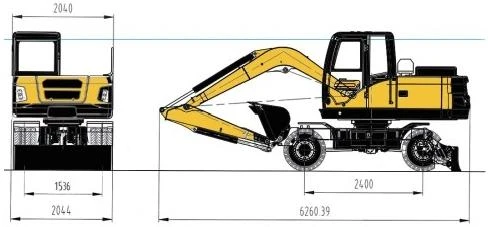

Main Dimensions
 |
 |
MACHINE SIZE | Overall dimension (L*W*Hmm) | 6300*2000*2850mm |
Tread width | 8.25-16 | |
Width of chassis | 2040mm | |
Length to center of rollers | 2400mm | |
Minimum Ground clearance | 260mm | |
Swing radius at tail | 2365mm | |

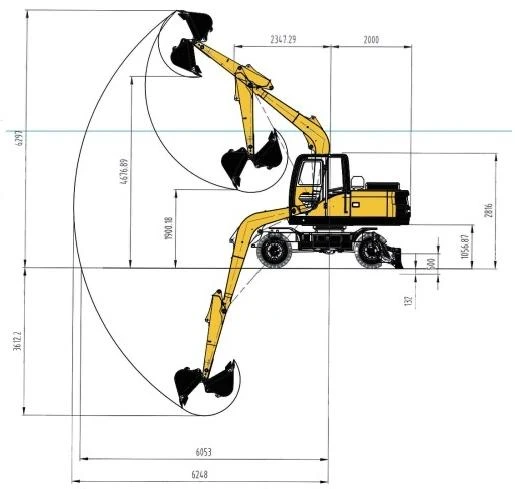

WORKING RANGE | Maximum Digging height | 6245mm |
Maximum Dumping height | 4630mm | |
Maximum Digging depth | 3820mm | |
Maximum Vertical digging depth | 2700mm | |
Maximum Digging radius | 6360mm | |
Minimum swing radius | 2450mm | |
Length of boom | 3350mm | |
Length of arm | 1750mm |
