China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 6.5t wheel excavator | jh9065 in China. With abundant experience, we warmly welcome you to buy cheap 6.5t wheel excavator | jh9065 made in China here from our factory. For price consultation, contact us.
Key Features
Hydraulic Pilot Control
Advanced hydraulic pilot servo system ensures smooth, precise, and responsive machine control for high-accuracy operations.
Quick Coupler System
Supports rapid attachment changes, allowing seamless switching between breakers, grapples, augers, and other tools for multiple applications.
High Travel Speed
Wheeled mobility allows fast road travel between job sites, reducing transport time and eliminating the need for trailers for short distances.
Low Ground Pressure
Optimized weight distribution minimizes ground pressure, reducing damage to pavement, sidewalks, and landscaped areas.
Superior Maneuverability
Compact structure and 360° swing capability enable efficient operation in narrow streets and confined urban environments.
Ideal for Municipal Applications
Perfectly suited for urban infrastructure projects such as pipeline installation, utility maintenance, water supply networks, and municipal construction.
 |  |
| Model | JH9065 | |
Bucket Capacity | 0.21 | m³ |
Swing Speed | 0-12 | rmp |
Gradeability | 25 | ° |
Max Bucket Digging Force | 45 | KN |
Max Arm Digging Force | 36 | KN |
Engine Model | 4TNV98 | |
Power/Rotate Speed | 44.4/2000 | KW/rmp |
Tire Model | 700-15 | |
System Pressure | 20 | Mpa |
 |  |
Machine Size
 |  |
 |
Size L*W*H | 5696*1960*2712 | mm |
Cabin Height | 2712 | mm |
Axle Base | 2200 | mm |
Wheel(Track) Distance | 1560 | mm |
Ground Clearance | 235 | mm |
Tail Swing Radius | 1540 | mm |

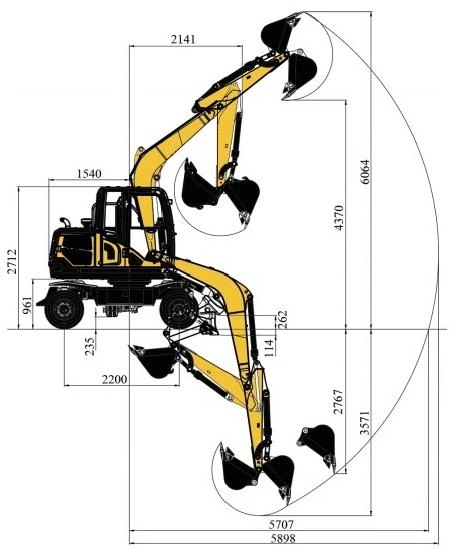

Working Range
Max Digging Height | 6064 | mm |
Max Dumping Height | 4370 | mm |
Max Digging Depth | 3571 | mm |
Max Vertical Digging Depth | 2767 | mm |
Max Digging Radius | 5707 | mm |
Min Swing Radius | 2141 | mm |
Max Dozer Blade Lifting Distance | 262 | mm |
Max Dozer Blade Cutting Distance | 114 | mm |
