China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 15t wheel excavator | jh9150 in China. With abundant experience, we warmly welcome you to buy cheap 15t wheel excavator | jh9150 made in China here from our factory. For price consultation, contact us.
Key Features
Precision Hydraulic Pilot Control
Hydraulic pilot servo system delivers smooth, precise control of boom, arm, and bucket movements, improving accuracy while reducing operator fatigue.
Global Emission-Compliant Engine
Engine options meet multiple international emission standards, ensuring powerful performance with environmentally responsible operation.
Premium Operator Cabin
Fully sealed cabin with air conditioning, LCD display, and LED lighting provides a comfortable, quiet, and safe working environment.
Reinforced Structure
Strengthened chassis with hydraulic power steering and wheel-side reduction axle improves durability, maneuverability, and stability across challenging terrains.
Efficient Mobility
High travel speed and road-ready design allow fast relocation between job sites without additional transport equipment.
 |  |
Applications
Urban construction · Landscaping and tree transplantation · Small mining and quarry operations · Agricultural land development · Irrigation and drainage projects
 |  |
Specifications
| Model | JH9150 | |
ENGINE | Emission Standard | Tier 2/ StageII |
Make /Model | Cummins /6BTAA5.9 | |
Power /Rotation speed | 133kw@2000rpm | |
Type | Diesel with water-cooled, | |
PERFORMANCE PARAMETER | Standard Bucket capacity | 0.6m³ |
Swing speed | 11rpm | |
Maximum Grade ability | 25° | |
Travel speed | 28km/h | |
Maximum Bucket digging force | 91KN | |
Maximum Arm digging force | 55KN | |
Hydraulic system pressure | 32Mpa | |
Machine weight | 15000kg | |
Fuel tank | 210L | |
Hydraulic oil tank | 220L | |

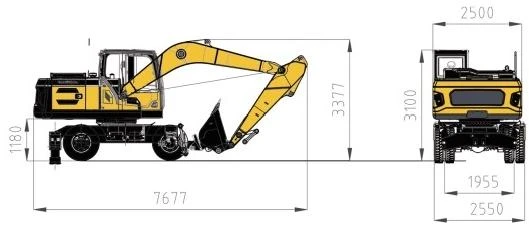

Machine Size
 |
 |
MACHINE SIZE | Overall dimension (L*W*Hmm) | 7680mm*2500mm*3255mm |
Tread width | 9.00-20 | |
Width of chassis | 1000mm | |
Length to center of rollers | 2600mm | |
Minimum Ground clearance | 350mm | |
Swing radius at tail | 2365mm | |

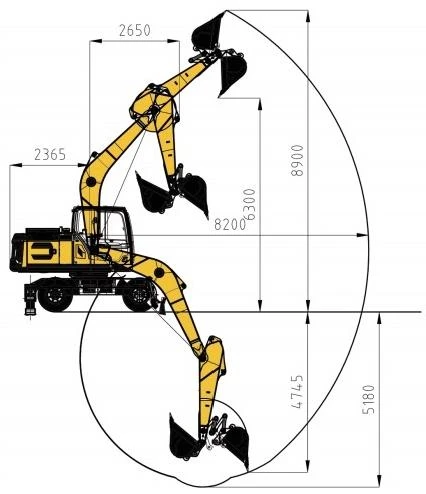

WORKING RANGE | Maximum Digging height | 8950mm |
Maximum Dumping height | 6350mm | |
Maximum Digging depth | 5180mm | |
Maximum Vertical digging depth | 4745mm | |
Maximum Digging radius | 8200mm | |
Minimum swing radius | 2650mm |
