China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 18t wheel excavator | jh9180 in China. With abundant experience, we warmly welcome you to buy cheap 18t wheel excavator | jh9180 made in China here from our factory. For price consultation, contact us.
Key Features
Precision Hydraulic Pilot Control
Hydraulic pilot servo system provides smooth and precise control of boom, arm, and bucket movements while reducing operator fatigue.
Spacious Operator Cabin
Large fully enclosed cab with air conditioning, ergonomic seat, and panoramic windows ensures operator comfort and excellent visibility.
Heavy-Duty Working Equipment
Reinforced boom, bucket, and wear-resistant teeth expand the working range and improve durability for demanding excavation tasks.
Robot-Welded Structure
Automated welding technology ensures consistent joint strength, improving structural reliability and long-term durability.
Reinforced Chassis Design
Forged articulated components and strengthened chassis increase load-bearing capacity and stability in rough working conditions.
Cost-Effective Operation
High fuel efficiency, durable components, and easy maintenance reduce operating costs and improve long-term productivity.
 |  |
Applications
Earthmoving · Trenching · Loading · Demolition · Slope protection · Mining and quarry operations · Infrastructure construction
 |  |
Specification
| Model | JH9180 | |
ENGINE | Emission Standard | Tier 2/ Stage Ⅱ |
Make /Model | Cummins / 6BTAA5.9-C178 | |
Power /Rotation speed | 133kw//2000rpm | |
Type | Diesel with water-cooled, | |
PERFORMANCE PARAMETER | Standard Bucket capacity | 0.8m³ |
Swing speed | 11rpm | |
Maximum Grade ability | 25° | |
Travel speed | 28km/h | |
Maximum Bucket digging force | 100KN | |
Maximum Arm digging force | 70KN | |
Hydraulic system pressure | 32Mpa | |
Machine weight | 16500kg | |
Fuel tank | 210L | |
Hydraulic oil tank | 220L | |

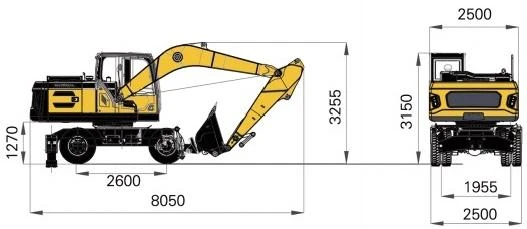

Machine Size
 |
 |
MACHINE SIZE | Overall dimension (L*W*Hmm) | 8050mm*2500mm*3255mm |
Tread width | 10.00-20 | |
Width of chassis | 1000mm | |
Length to center of rollers | 2600mm | |
Minimum Ground clearance | 430mm | |
Swing radius at tail | 2365mm | |

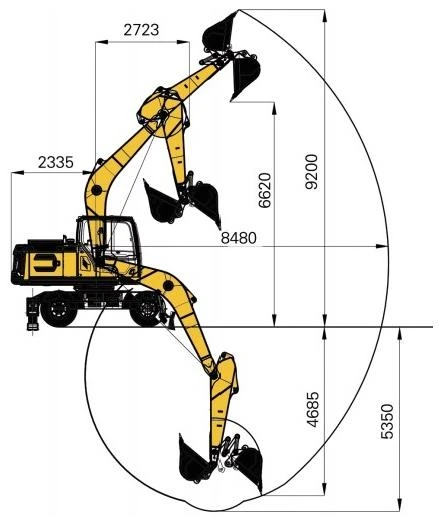

WORKING RANGE | Maximum Digging height | 9200mm |
Maximum Dumping height | 6620mm | |
Maximum Digging depth | 5350mm | |
Maximum Vertical digging depth | 4850mm | |
Maximum Digging radius | 8480mm | |
Minimum swing radius | 2720mm |
