China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 21.5t wheel excavator | jh9215 in China. With abundant experience, we warmly welcome you to buy cheap 21.5t wheel excavator | jh9215 made in China here from our factory. For price consultation, contact us.
Key Features
Precision Hydraulic Pilot Control
Hydraulic pilot servo system ensures smooth and precise operation, improving efficiency while reducing operator fatigue during demanding tasks.
Spacious Enclosed Cabin
Large fully sealed cab with air conditioning, ergonomic suspension seat, and panoramic visibility provides a comfortable and safe working environment.
Heavy-Duty Structural Components
Reinforced chassis, boom, and arm made from high-strength steel ensure durability and reliability under heavy loads.
Dual-Speed Travel System
Low and high-speed traveling motor provides strong torque for rough terrain and fast mobility for efficient relocation between job sites.
Powerful Hydraulic Performance
Upgraded hydraulic system delivers strong digging force, faster cycle times, and stable lifting performance.
Built for Tough Conditions
Robust working equipment and reinforced structure ensure reliable performance in demanding construction and mining environments.
 |  |
Applications
Mining · Infrastructure construction · Bridge projects · Highway and railway construction · River engineering · Large-scale earthworks
 |  |
Specification
| Model | JH9215 | |
ENGINE | Emission Standard | Tier 2/ Stage Ⅱ |
Make /Model | Cummins / 6BTAA5.9-C205 | |
Power /Rotation speed | 153kw//2000rpm | |
Type | Diesel with water-cooled, | |
PERFORMANCE PARAMETER | Standard Bucket capacity | 1m³ |
Swing speed | 11rpm | |
Maximum Grade ability | 25° | |
Travel speed | 28km/h | |
Maximum Bucket digging force | 140KN | |
Maximum Arm digging force | 100KN | |
Hydraulic system pressure | 34Mpa | |
Machine weight | 21500kg | |
Fuel tank | 350L | |
Hydraulic oil tank | 220L | |

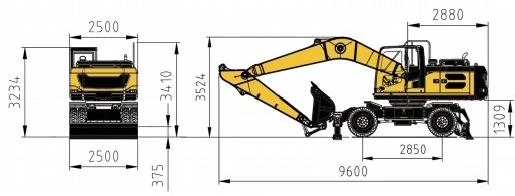

Machine Size
 |
 |
MACHINE SIZE | Overall dimension (L*W*Hmm) | 9600mm*2500mm*3524mm |
Tread width | 10.00-20 | |
Width of chassis | 1000mm | |
Length to center of rollers | 2850mm | |
Minimum Ground clearance | 380mm | |
Swing radius at tail | 2880mm | |

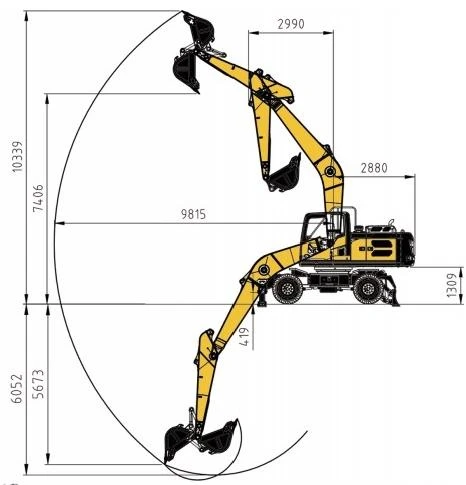

WORKING RANGE | Maximum Digging height | 10339mm |
Maximum Dumping height | 7406mm | |
Maximum Digging depth | 6052mm | |
Maximum Vertical digging depth | 5673mm | |
Maximum Digging radius | 9815mm | |
Minimum swing radius | 2990mm |
