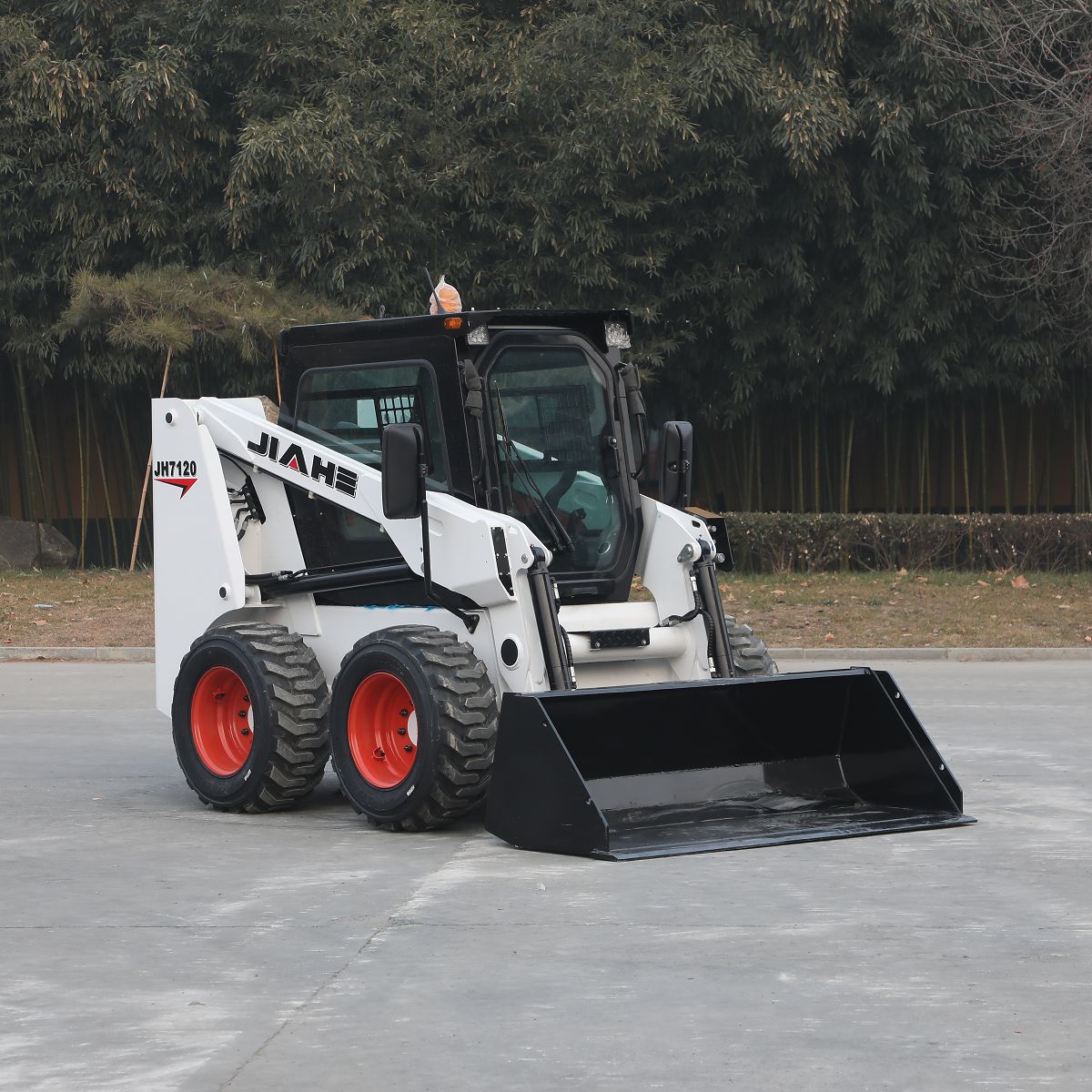

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 1.2t wheel skid steer | jh7120 in China. With abundant experience, we warmly welcome you to buy cheap 1.2t wheel skid steer | jh7120 made in China here from our factory. For price consultation, contact us.
Key Features

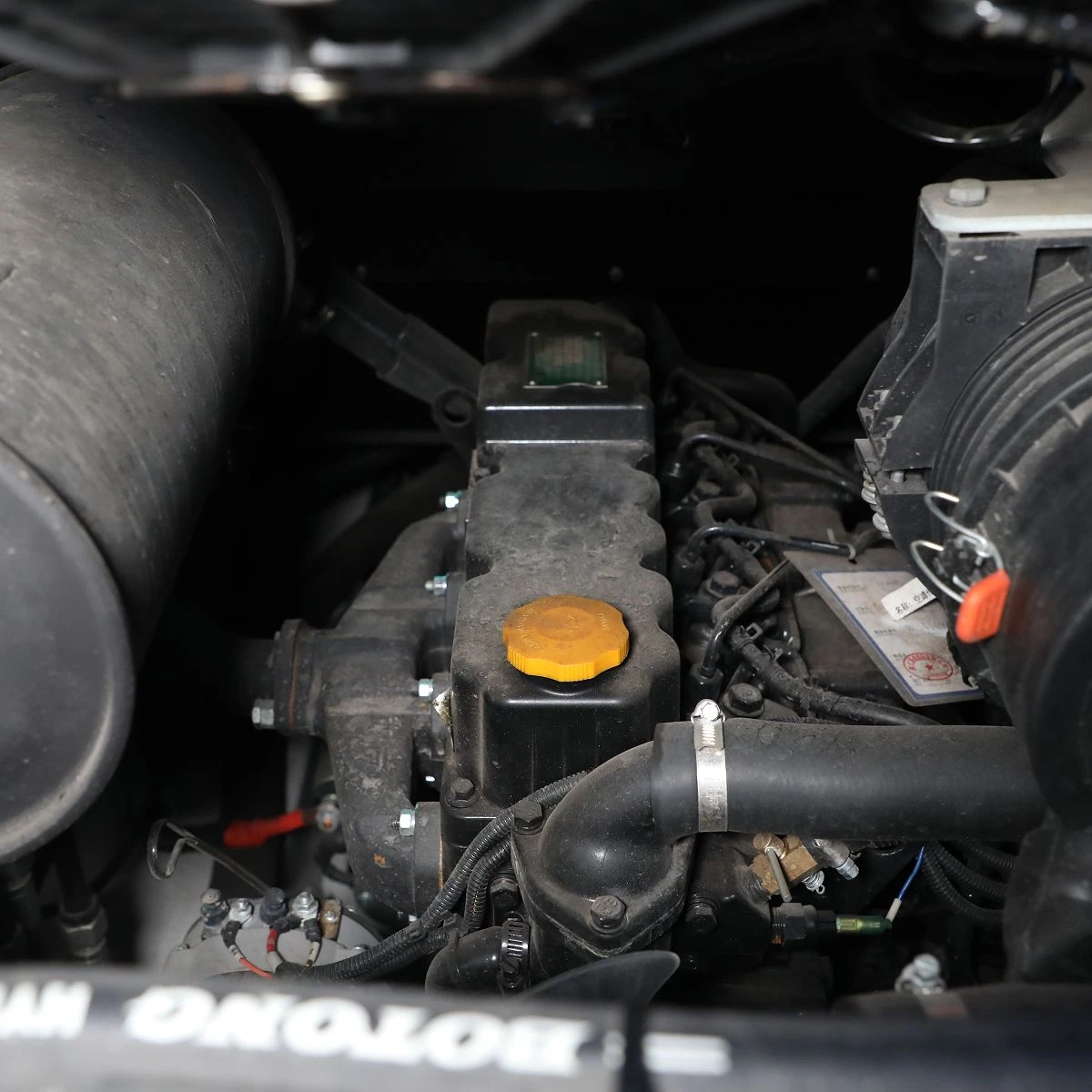

1. Powerful Engine Options
Powered by Xinchai, Cummins or Kubota diesel engines, delivering strong torque, reliable performance, and excellent fuel efficiency for demanding construction and material-handling operations.
2. High Load Capacity & Stable Performance
With a rated loading capacity of 1200 kg and an operating weight of 3500 kg, the skid steer loader provides excellent lifting capability, stability, and efficiency when working under heavy loads or complex terrain.
3. Quick Attachment System for Multi-Function Work
Equipped with a universal quick-attach coupler, allowing fast switching between buckets, pallet forks, sweepers, hydraulic breakers, grapples, snow removal blades, and other attachments to perform loading, lifting, drilling, crushing, cleaning, and road maintenance.
4. Compact Design & Flexible Maneuverability
The compact skid steer structure and zero-turn steering enable superior maneuverability in narrow construction sites, warehouses, farms, and urban job sites, greatly improving productivity in confined working spaces.
 |  |
Main Applications
Infrastructure construction, municipal engineering, agriculture, industrial material handling, port and dock operations, road cleaning, snow removal, warehouse logistics, livestock farms, and indoor demolition or confined job-site operations.
 |  |
Parameters
| Model | JH7120 |
Engine model | Xingchai A498BZG |
Rated power/speed | 55KW/2500rpm |
Standard system pressure | 21MPa |
Pilot pressure | 2.5Mpa |
Bucket capacity | 0.54 m³ |
Travel speed | 11.5km/h |
Rated load | 1250kg |
Machine weight | 3500kg |
Length without bucket | 2657 mm |
Length with bucket | 3602 mm |
Bucket width | 1850 mm |
Total height | 1983 mm |
Maximum height of bucket pin | 2751 mm |
Maximum height of horizontal bucket | 2588 mm |
Departure angle | 20° |
Maximum bucket retraction angle on flat ground | 21.3° |
Tilting height | 1890 mm |
Loading distance at maximum unloading height | 682 mm |
Ground track length | 1534 mm |
Ground clearance | 188 mm |
Maximum working height | 3659 mm |
Tail length | 806 mm |
Bucket tilting angle at maximum height | 81.2° |
Tilting angle at maximum height | 54.1° |
