China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 380kg wheel skid steer | lz380 in China. With abundant experience, we warmly welcome you to buy cheap 380kg wheel skid steer | lz380 made in China here from our factory. For price consultation, contact us.
Key Features

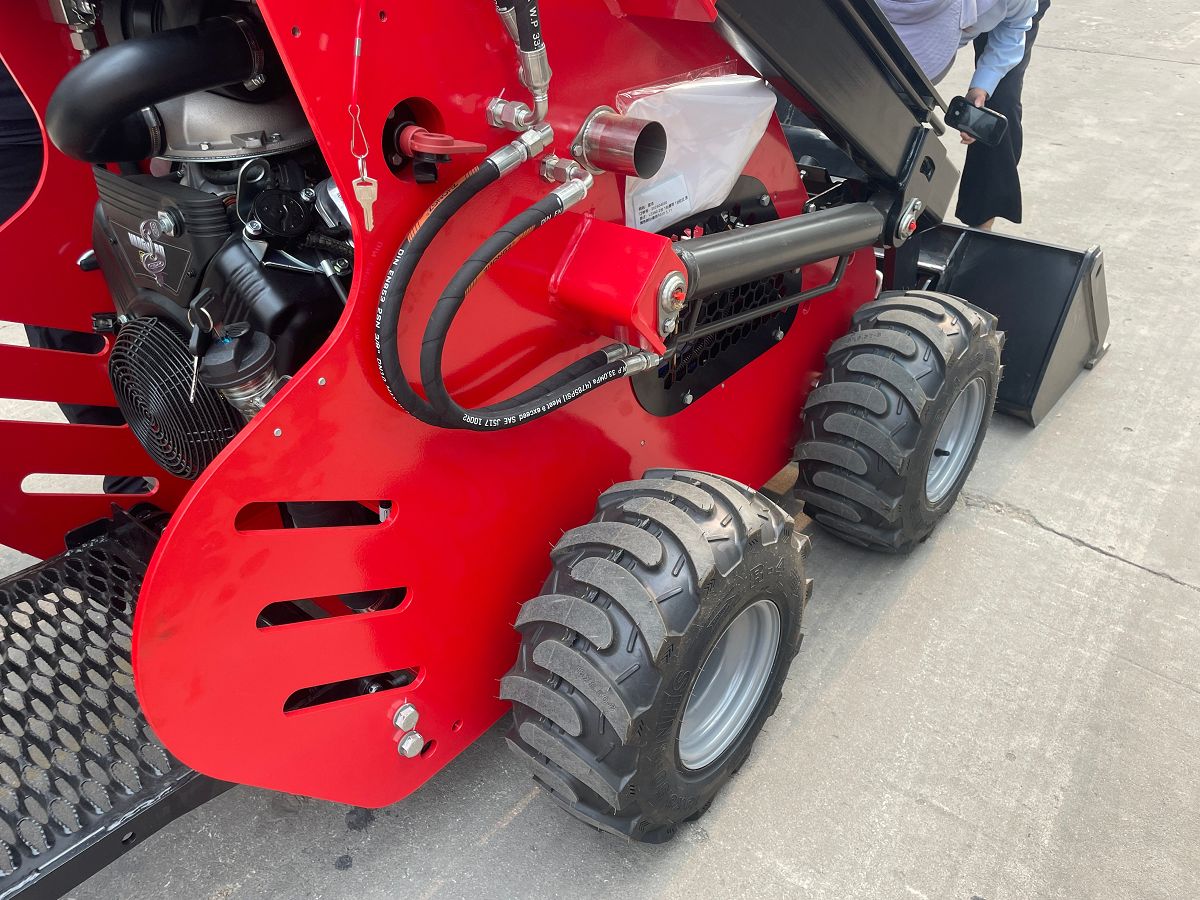

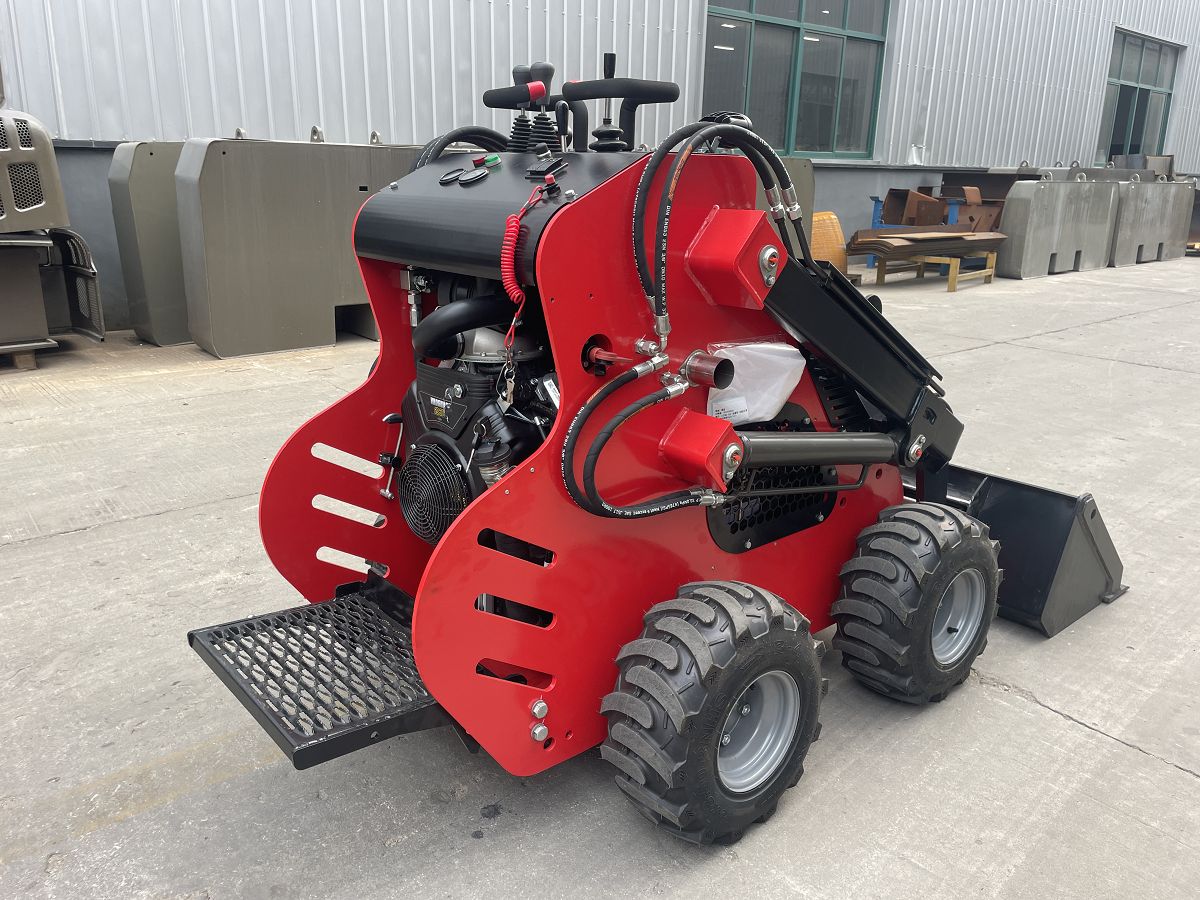

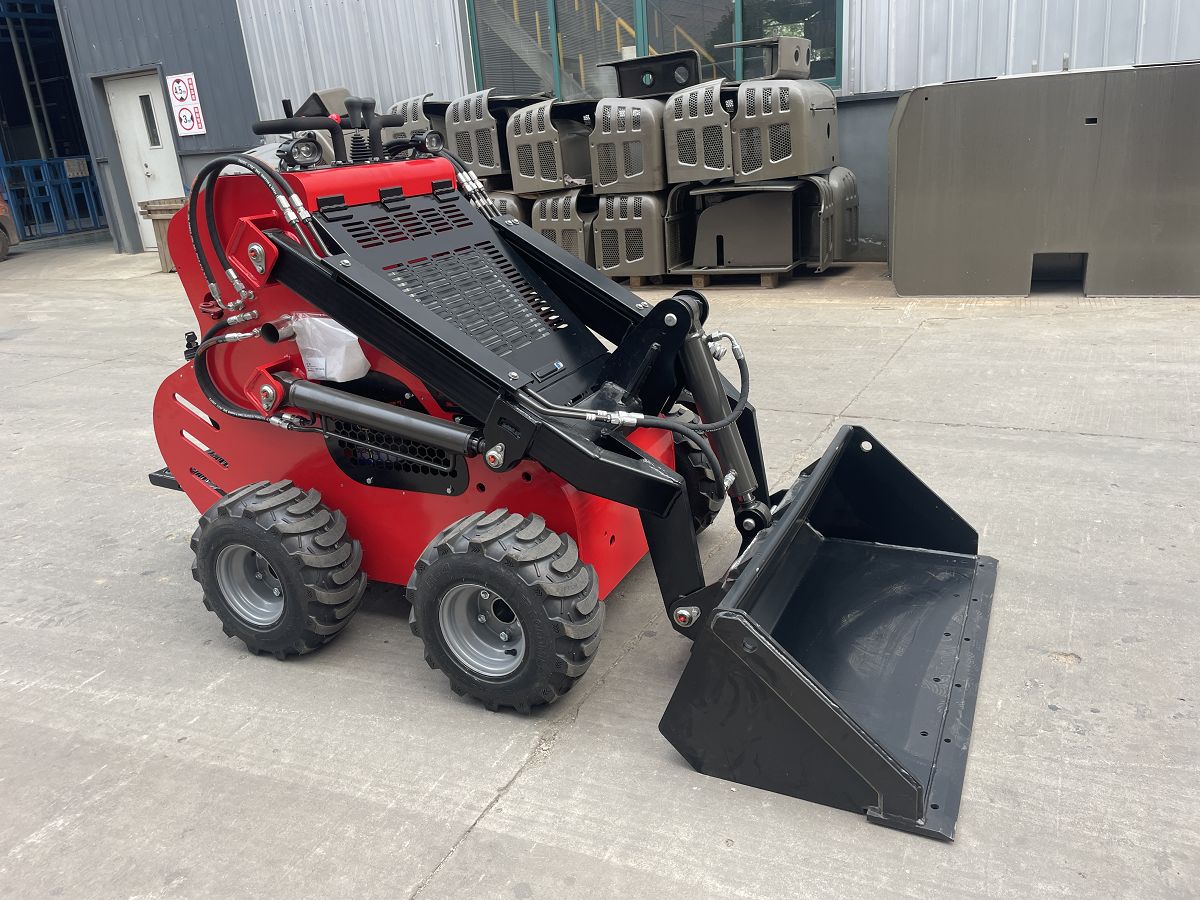

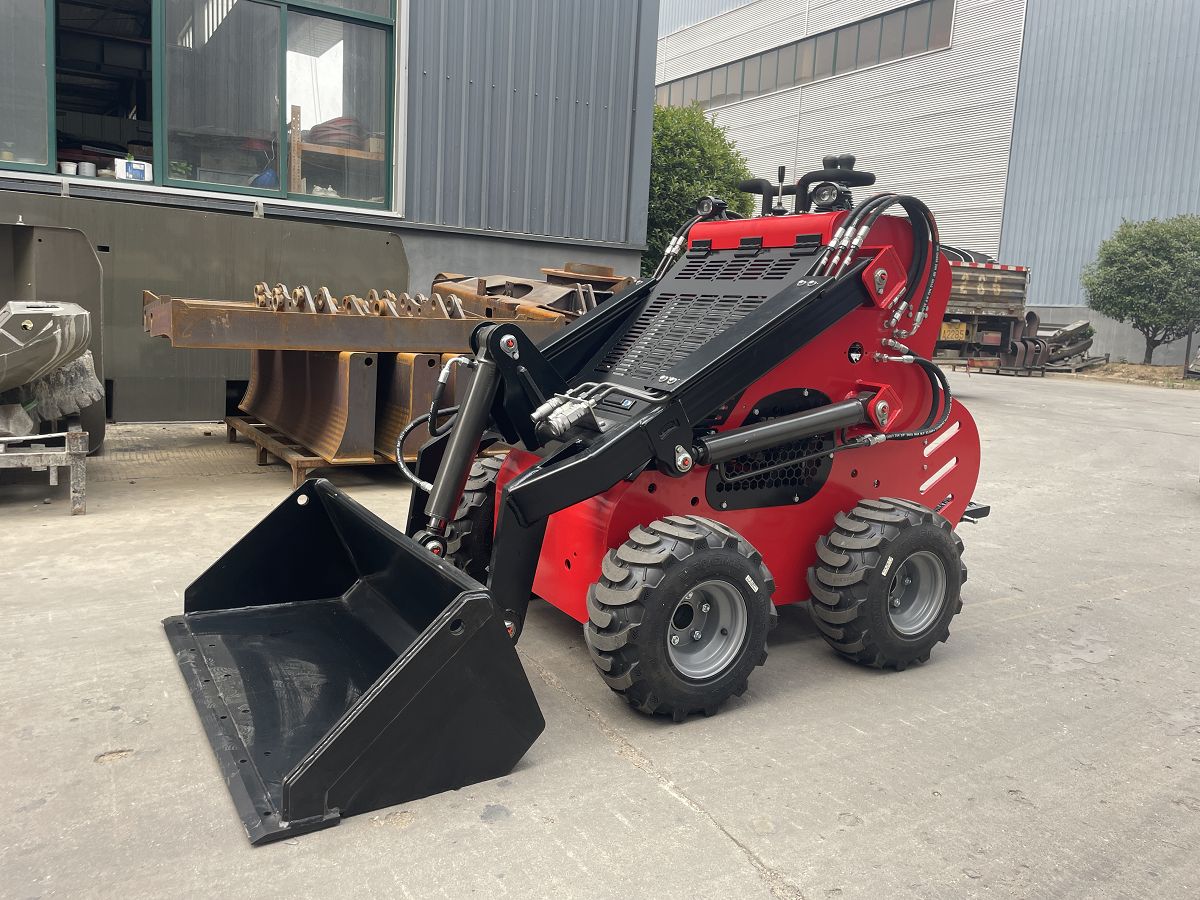

Designed for tight-access jobs and light-duty handling, the LZ380 mini skid steer combines compact size with reliable performance. Powered by a Briggs & Stratton Vanguard gasoline engine, it delivers 17.2 kW (23 HP) for efficient operation across farms, landscaping, construction, and small demolition sites.
With an 850kg lifting capacity, 0.12 m³ bucket, and only 830 mm width, it easily passes through narrow spaces while maintaining strong stability. The machine features a 20 MPa hydraulic system for smooth and responsive control, along with quick-attach compatibility for buckets, forks, and augers-making it a versatile solution for various tasks.
Powerful & Compliant Engine:
23HP Briggs & Stratton gasoline engine, meeting EPA4 and EURO V standards for strong performance and environmental compliance.
High Auxiliary Flow:
Large hydraulic flow supports a wide range of attachments for multi-purpose applications.
Extensive Attachment Options:
Compatible with digger, trencher, auger, bucket, 4-in-1 bucket, fork, sweeper, mower, ripper, stump grinder, grapple, tiller, concrete mixer, hydraulic breaker, angle blade, leveler, snow blower, and more.
Compact & Agile Design:
360° skid steering and compact structure enable efficient operation in tight and narrow spaces.
Wheels or Tracks Available:
Optional wheeled or crawler configurations to adapt to different terrains.
Easy Maintenance:
Service-friendly design reduces downtime and lowers maintenance costs.
Versatile Applications:
Ideal for urban construction, agriculture, landscaping, and municipal maintenance.
Flexible & Cost-Effective:
Compact size and stand-on design offer an economical solution where larger machines lack maneuverability.
 |  |
 |  |
Parameters
| Model | LZ380T | |
LZ380 MINI SKID STEER LOADER PARAMETER | ||
Parameter | Metric | Inch |
Max lifting height | 2178 mm | 85.7 inch |
Max pin height | 1890 mm | 74.4 inch |
Max dumping height | 1395 mm | 54.9inch |
Max point of unloading distance | 620 mm | 24.4 inch |
Bucket swing angle | 79° | 79° |
Bucket discharging angle | 36° | 36° |
Bucket opening angle | 14° | 14° |
Departure angle | 25° | 25° |
Total height | 1374mm | 54.1 inch |
Ground clearance | 90 mm | 3.54 inch |
Wheel base | 705 mm | 27.8 inch |
Total length without bucket | 1900 mm | 74.8 inch |
Total width | 830mm | 32.7inch |
Bucket width | 835 mm | 32.9inch |
Total length | 2400 mm | 94.5 inch |
Turning radius | 1850 mm | 72.8 inch |
Engine | Engine model | Briggs&Stratton Vanguard | |||||
Rated power | 17.2KW/23HP | ||||||
Speed(rpm) | 3800 | ||||||
Noise(Db) | ≤90 | ||||||
Hydraulic system | System pressure(Mpa) | 20 | |||||
Cycle time (s) | Lift | Discharge | Lower | ||||
4.10 | 1.9 | 3.65 | |||||
Parameter | Metric | inch | |||||
Capacity | 240 Kg | 533 Lb | |||||
Bucket capacity | 0.12m3 | 4.26 ft3 | |||||
Max lifting weight | 850Kg | 1888Lb | |||||
Speed | 6Km/h | 3.71mlie/h | |||||
Operating weight | 1185kg | 2633Lb | |||||
