China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 380kg track skid steer | lz380t in China. With abundant experience, we warmly welcome you to buy cheap 380kg track skid steer | lz380t made in China here from our factory. For price consultation, contact us.
Key Features

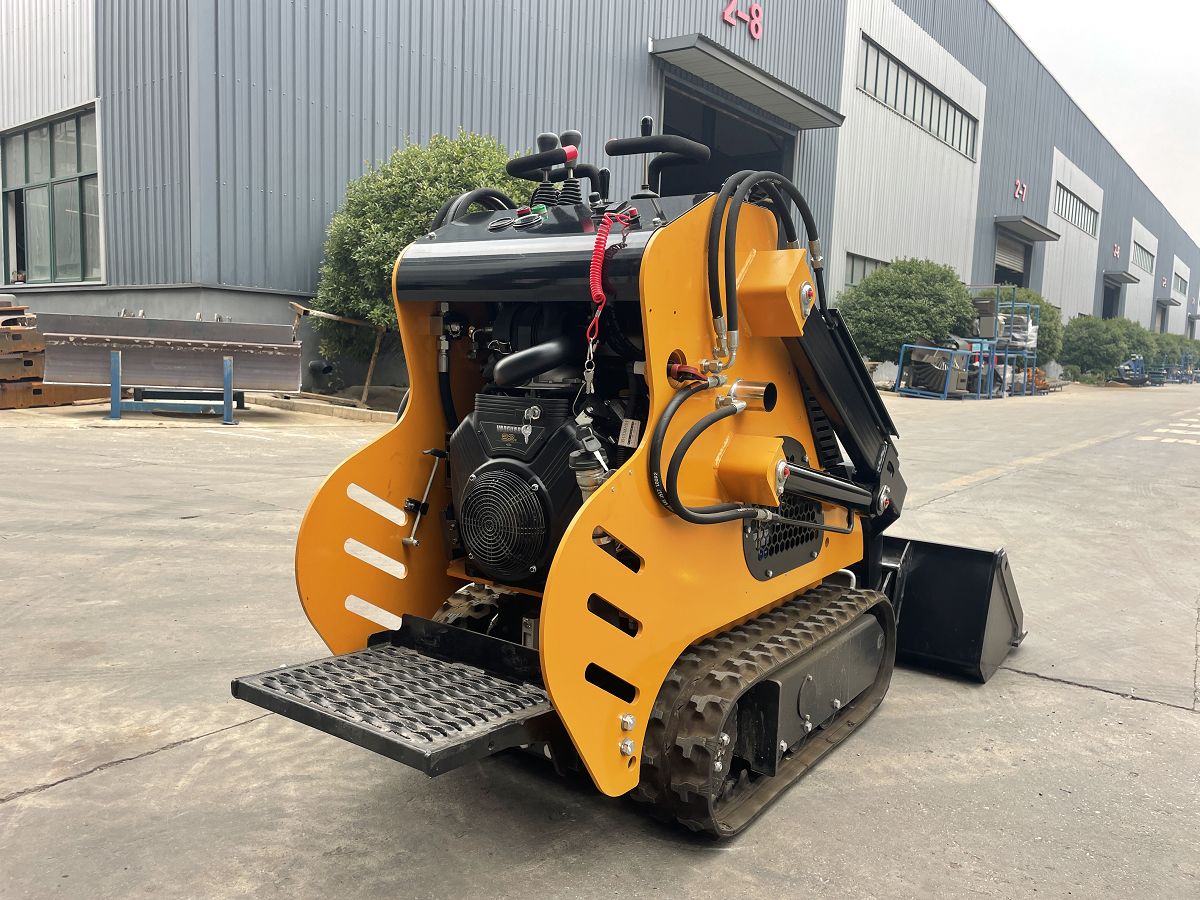

Reliable Gasoline Engine
Equipped with a 23HP Briggs & Stratton Vanguard gasoline engine, delivering stable performance, fuel efficiency, and reliable power for various working conditions.
Multi-Functional Attachments
Compatible with a wide range of attachments including auger, trencher, bucket, 4-in-1 bucket, fork, sweeper, mower, ripper, stump grinder, grapple, tiller, concrete mixer, hydraulic breaker, angle blade, and snow blower, enabling one machine to handle multiple tasks efficiently.
Stand-On Design for Precision Control
Ergonomic stand-on platform provides better visibility and precise operation, especially in narrow spaces, greenhouses, orchards, and confined urban environments.
Crawler Technology for Complex Terrain
Crawler system enhances traction and stability, allowing smooth operation on soft ground, slopes, and uneven terrain while minimizing surface damage.
 |  |
Main Applications
Agriculture & greenhouse operations (soil turning, fertilizing, fruit transport)
Orchard and terrace handling in complex terrain
Municipal works & emergency rescue (flood control, debris removal)
Narrow space construction & demolition (alleys, urban sites)
 |  |
Parameters
| Model | LZ380T | |
LZ380 TRACK MINI SKID STEER LOADER PARAMETER | ||
Parameter | Metric | Inch |
Max lifting height | 2178 mm | 85.7 inch |
Max pin height | 1890 mm | 74.4 inch |
Max dumping height | 1395 mm | 54.9inch |
Max point of unloading distance | 620 mm | 24.4 inch |
Bucket swing angle | 79° | 79° |
Bucket discharging angle | 36° | 36° |
Bucket opening angle | 14° | 14° |
Departure angle | 25° | 25° |
Total height | 1374mm | 54.1 inch |
Ground clearance | 90 mm | 3.54 inch |
Wheel base | 705 mm | 27.8 inch |
Total length without bucket | 1900 mm | 74.8 inch |
Total width | 830mm | 32.7inch |
Bucket width | 835 mm | 32.9inch |
Total length | 2400 mm | 94.5 inch |
Turning radius | 1850 mm | 72.8 inch |
ngine | Engine model | Briggs&Stratton Vanguard | |||||
Rated power | 17.2KW/23HP | ||||||
Speed(rpm) | 3800 | ||||||
Noise(Db) | ≤90 | ||||||
Hydraulic system | System pressure(Mpa) | 20 | |||||
Cycle time (s) | Lift | Discharge | Lower | ||||
4.10 | 1.9 | 3.65 | |||||
Parameter | Metric | inch | |||||
Capacity | 240 Kg | 533 Lb | |||||
Bucket capacity | 0.12m3 | 4.26 ft3 | |||||
Max lifting weight | 850Kg | 1888Lb | |||||
Speed | 6Km/h | 3.71mlie/h | |||||
Operating weight | 1185kg | 2633Lb | |||||
