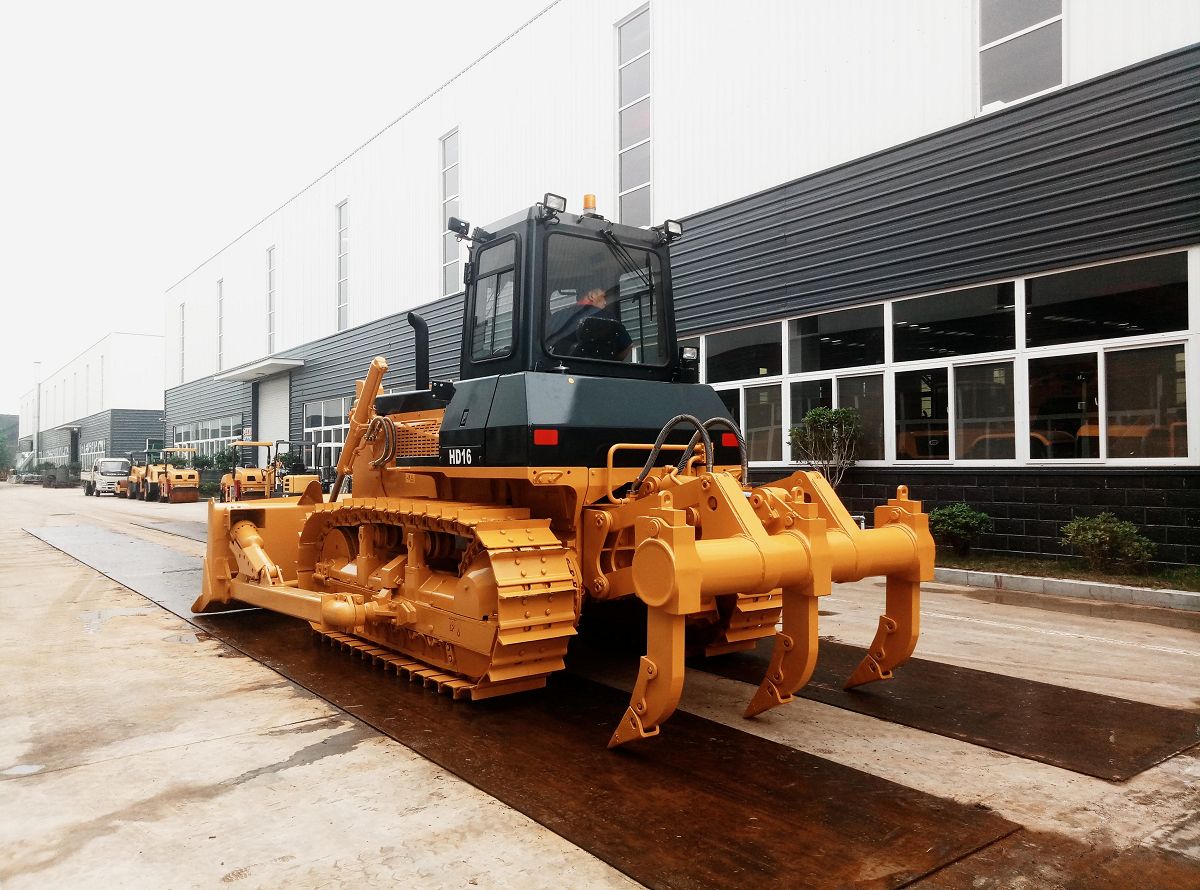

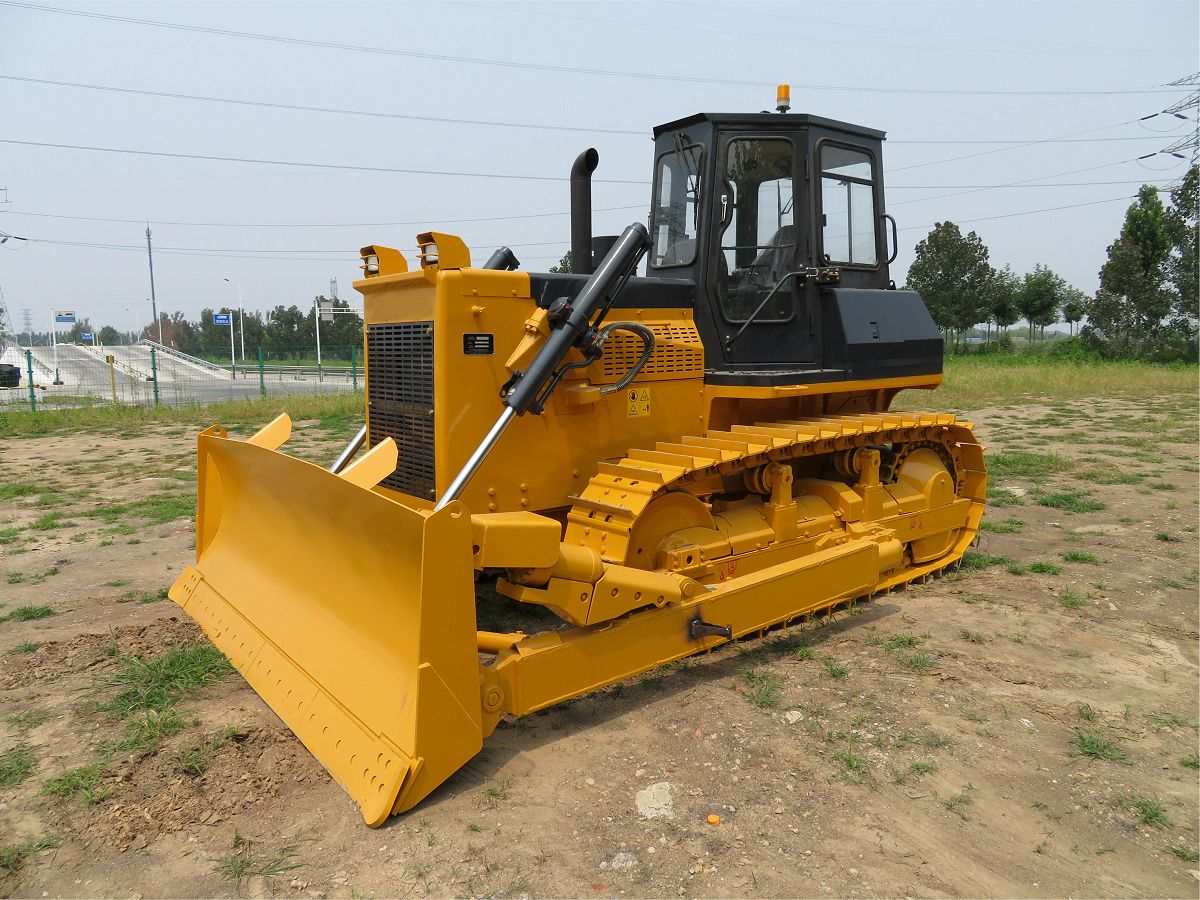

HD16 Bulldozer
Reliable Diesel Power
Weichai WD10G178E25 engine delivers strong torque and improved fuel efficiency, ensuring consistent performance for small-to-medium earthmoving tasks.
Hydraulic Efficiency
Advanced hydraulic system with overload protection provides stable lifting and precise operation, reducing component wear and enhancing reliability.
Compact & Stable Structure
Full box welded frame offers resistance to bending and twisting. Swing-type balance beam suspension improves stability on uneven terrain.
Versatile Blades & Attachments
Standard tilt blade and optional three-shank ripper handle clay, frozen soil, and bulk materials efficiently.
 |  |
Main Applications
Road and small-scale infrastructure projects
Agriculture and land leveling
Municipal works and bulk material handling
Model | HD16 |
Type | 160HP Standard Hydraulic Crawler Type |
| Engine model | Weichai WD10G178E25 |
Displacement(L) | 9.726 |
Rated power(kw/rpm) | 131/1850 |
Max.torque(N.m/rpm) | 830/1000-1200 |
Operating weight | 16.4T |
Dimension(no ripper)(mm) | 4990×3440×3110 |
Min ground clearance(mm) | 405 |
Ground pressure(MPa) | 0.067 |
Track gauge(mm) | 1880 |
Dozing capacity(m³) | 4.5 |
Blade width(mm) | 3440 |
Blade height(mm) | 1150 |
Max drop below ground(mm) | 540 |
Track shoe width(mm) | 510 |
Pitch(mm) | 203.2 |
Quantity of track link(each side) | 37 |
Quantity of Carrier rollers(each side) | 2 |
Quantity of Track rollers(each side) | 6 |
Max pressure (MPa) | 14 |
Discharge L/min | 213 |
Max tractor force(KN) | 146 |
Grade ability | 30° |
Forward Speed (Km/h) | F1:0-3.29 |
F2:0-5.82 | |
F3:0-9.63 | |
Rear Speed (Km/h) | R1:0-4.28 |
R2:0-7.59 | |
R3:0-12.53 |
♦ Notice : Material and specifation are subject to change without notice , Feature machine in photos may include additional equipment
