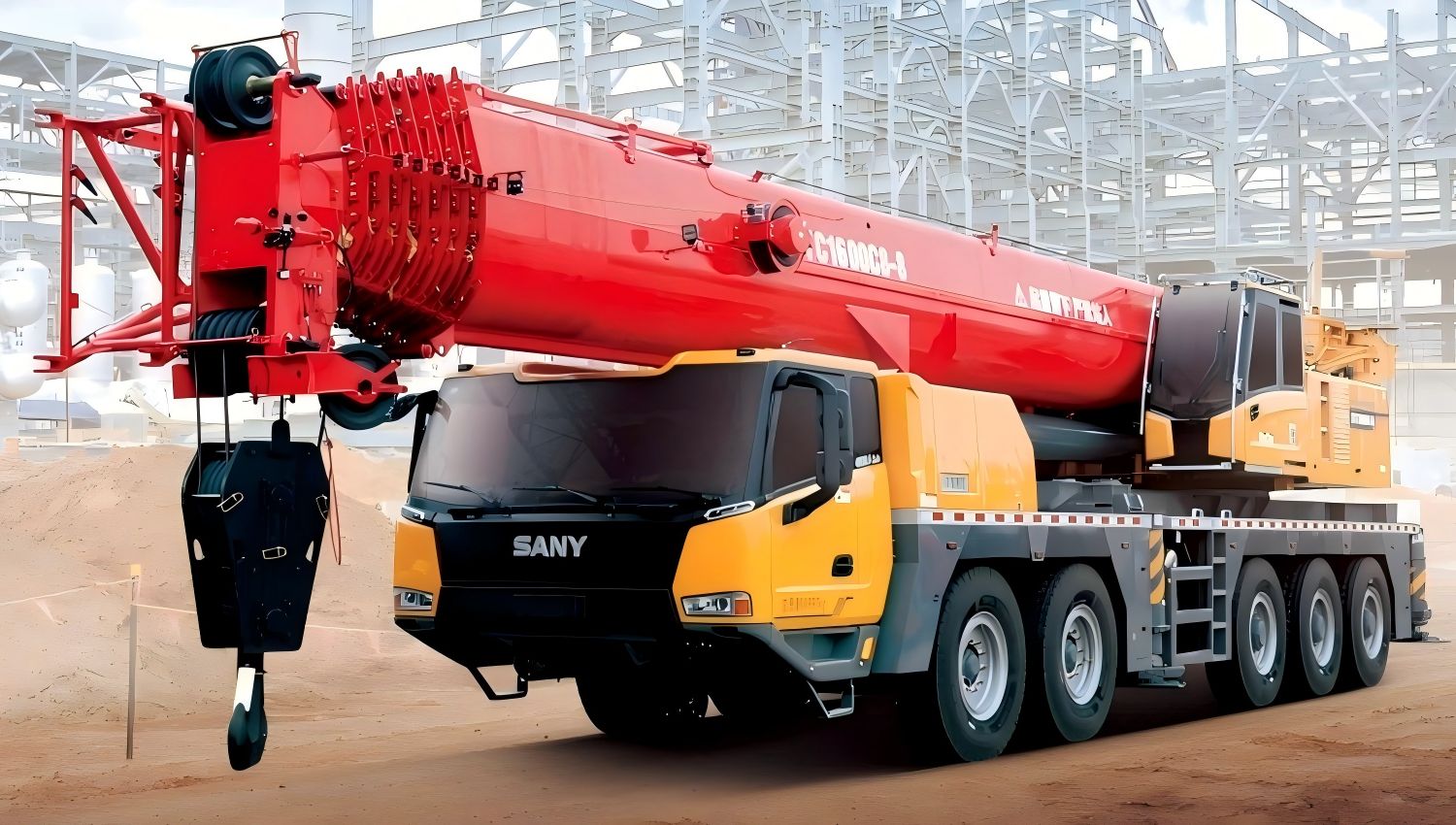

Product Details
Leading Performance – Structure 3.0 Platform
Stable Heavy-Duty Transport – 1.0 Platform
Fully adopts the 3rd-generation hybrid frame structure, with frame cross-section area increased by 9%, load-bearing capacity improved by 15%, and deformation reduced by 25%
Counterweight structure optimized, featuring auxiliary counterweight self-assembly technology, eliminating "small backpack" limitations; assembly/disassembly requires no auxiliary crane
220T-class large cross-section main boom, optimized via response surface simulation analysis; full-extension boom deflection reduced by 10%, high-frequency performance improved by 5%
Heavy-load transport technology with wear-resistant tires, high-strength axles, and multi-axle balanced suspension, enabling 13% higher load-bearing travel capacity
Advanced Control – i-Hoisting 2.0 System
Intelligent & Comfortable – i-Crane Smart Lifting System
Newly upgraded intelligent flow control system, with dual independent pump supply, delivering precise, fast, and smooth operation for more accurate lifting
Working condition recommendation + one-button automatic telescoping, enabling rapid boom extension/retraction based on optimal conditions for more convenient lifting
Slewing adaptive control technology, automatically adjusts slewing torque based on real-time vehicle load; smooth start/stop with minimal vibration and impact ensures steadier lifting
Customizable parameters for slewing, telescoping, luffing, and winch operations, with 3 response modes to meet different working condition requirements, making operation intuitive and efficient
 |  |
Vehicle dimensions
| Model | STC1600C8-8 | |||
type | project | unit | parameter | |
Size parameters | Total length of the machine | mm | 17362 | |
Total width of the machine | mm | 3000 | ||
Total height of the machine | mm | 4000 | ||
weight parameter (Regular announcement status) | Total mass of the entire machine | kg | 54990 | |
load | uniaxial and biaxial loads | kg | 20490 | |
Three-axis, four-axis, and five-axis loads | kg | 34500 | ||
weight parameter (Overload Alert Status) | Total mass of the entire machine | kg | 60000 | |
load | uniaxial and biaxial loads | kg | 24000 | |
Three-axis, four-axis, and five-axis loads | kg | 36000 | ||
pour ：Standard announcement status: Grouped in 5+8 configurations, excluding auxiliary hooks, lifting arms, counterweights, support legs, and fish tanks.
Overload alert status: Grouped as 7+8 units, without auxiliary hooks, lifting arms, counterweights, or support legs.
Main Technical Parameters
type | project | unit | parameter | |
On-board power parameters | engine type | - | Dongkang QSC6.9CS4 220C | |
maximum power of engine | kW/rpm | 154/2200 | ||
Maximum engine output torque | N·m/rpm | 820/1600 | ||
Downhill driving parameters | engine type | - | Yuchai YCK18470-64A (National VI emission standard) Weichai WP12.460E52 (National VI emission standard) | |
maximum power of engine | kW/rpm | 34/1900 338/1900 | ||
Maximum engine output torque | N·m/rpm | 2200/150-1400 2200/1000-1400 | ||
Driving parameters | Maximum speed | km/h | 85 | |
minimum turning radius | m | 11.75 | ||
Approach angle / Departure angle | ° | ±9/11 | ||
maximum gradability | % | 45 | ||
Fuel consumption per 100 kilometers | L | ≤58 (Announcement Status) | ||
Key performance parameters | maximum rated total lifting capacity | T | 160 | |
Rotation radius of the tail section of the turntable (without counterweight) | m | 4.8 | ||
Leg support spacing (lateral × longitudinal) | m | 8.3(5.5)-7.7 | ||
Lifting arm length | basic arm | m | 14.8 | |
longest main boom | m | 8.8 | ||
Longest main lifting arm + auxiliary lifting arm | m | 99.6 | ||
Longest main lifting arm + extension arm (optional) + auxiliary lifting arm | m | 118.6 | ||
maximum lifting moment | basic arm | kN·m | 5400 | |
longest main boom | kN·m | 2608 | ||
Longest main lifting arm + auxiliary lifting arm | kN·m | 1164 | ||
Longest main lifting arm + extension arm (optional) + auxiliary lifting arm | kN·m | 790 | ||
Nominal load A | Number of pulleys | multiplying power | Hook weight/kg |
9 | 0 | 1 | 310 |
75 | 5 | 11 | 735 |
project | parameter | Wire rope diameter / length | maximum single span tensile force |
main winch | Single rope speed: 0-135 m/min | 20mm/375m | 9 |
gyration | 0-15r/min | ||
Stroke length / Drag length | 80s/100s(10~79°) | ||
Extending arm / Contracting arm | 800s/60s(15.1m~90m) | ||
Vertical leg extension/retraction | 40s/45s | ||
Horizontal support leg extended/retracted | 25s/30s | ||
