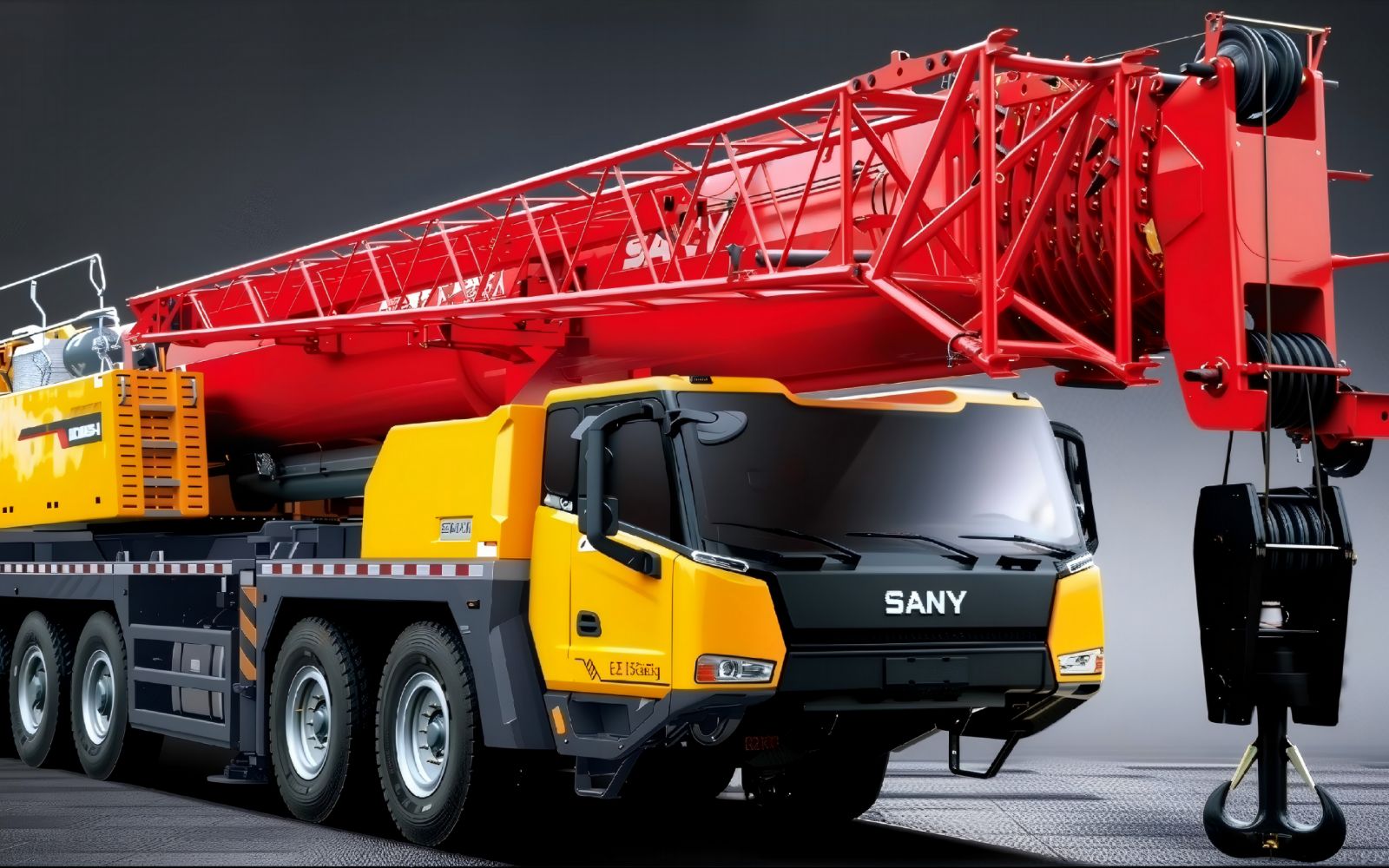

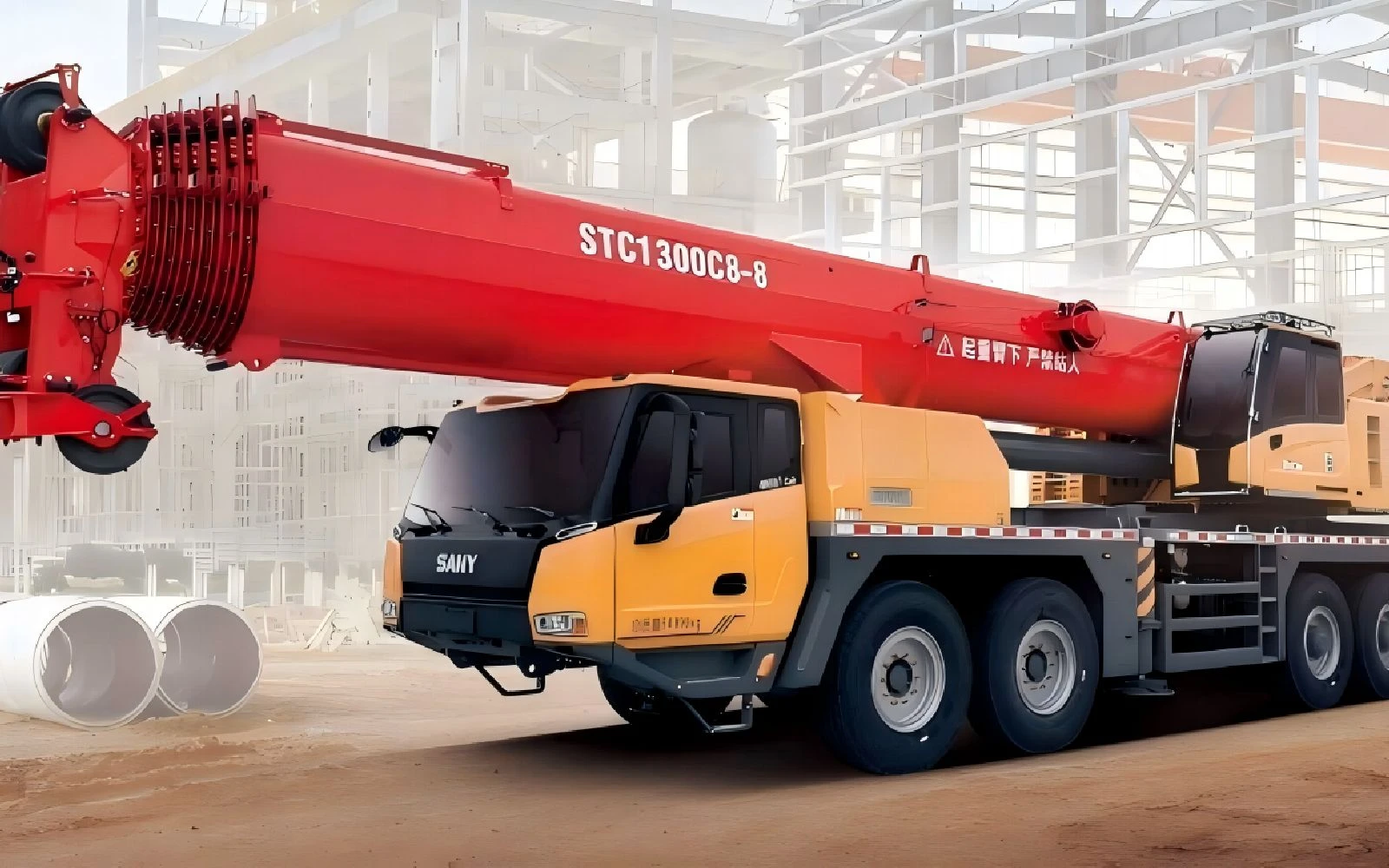

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 130t truck crane | stc1300c8-8 in China. With abundant experience, we warmly welcome you to buy cheap 130t truck crane | stc1300c8-8 made in China here from our factory. For price consultation, contact us.
Product Details
Leading Performance – Structure 3.0 Platform
Stable Heavy-Duty Transport – 1.0 Platform
Compact 3.0 cross-section design; 2–8 section booms 2.3% thicker, 8-section boom circumference 7.1% larger, overall performance increased by 5%
Auxiliary counterweight self-assembly/disassembly technology, allowing single-person operation without auxiliary crane, cost-effective and efficient
3rd-generation hybrid frame, with frame cross-section 6% and 8% higher torsional resistance
Multi-axle balanced suspension technology, enabling 15% higher heavy-load transport capacity and extending axle service life by 5%
Energy Saving – i-ECO 1.0 System
Advanced Control – i-Hoisting 2.0 System
Dual-engine power, equipped with Cummins non-DEF engine, operation without urea addition
Slewing adaptive control system, providing 80% smoother rotation
i-ECO fuel-saving technology, matching engine torque to working conditions, improving energy utilization, reducing operating fuel consumption by 20%
Flow-split and merge technology, enhancing compound motion stability by 50%
 |  |
 |  |
Parameters
| Model | STC1300C8-8 | |||
type | project | unit | parameter | |
Size parameters | Total length of the machine | mm | 16680 | |
Total width of the machine | mm | 3000 | ||
Total height of the machine | mm | 4000 | ||
weight parameter (Regular announcement status) | Total mass of the entire machine | kg | 54990 | |
load | uniaxial and biaxial loads | kg | 20354 | |
Three-axis, four-axis, and five-axis loads | kg | 34636 | ||
▲ Note: Standard announcement status-disassembled 6-8 section arms, without ailerons, hooks, ballast, or descending tip pulley. The 15-ton ballast is placed inside the winch box, with no additional ballast or auxiliary winch included.
Technical Specification
type | project | unit | parameter | |
On-board power parameters | engine type | - | Dongkang QSC6.5/QSC4.220C | |
maximum power of engine | kW/rpm | 154/2200 | ||
Maximum engine output torque | Nm/rpm | 820/1600 | ||
Downhill driving parameters | engine type | - | Yuchai YCK01430-60 (National VI emission standard) | |
maximum power of engine | kW/rpm | 316/900 | ||
Maximum engine output torque | Nm/rpm | 2100/1000-1500 | ||
Driving parameters | Maximum speed | km/h | 85 | |
minimum turning radius | m | ≤12 | ||
Approach angle / Departure angle | ° | ≥22/14 | ||
maximum gradability | % | 50% | ||
Fuel consumption per 100 km (speed 50 km/h) | L | ≤58 (highway condition) | ||
Key performance parameters | maximum rated total lifting capacity | t | 130 | |
Rotation radius of the tail section of the turntable (without counterweight) | m | 4.76 | ||
Leg span (lateral/longitudinal) | m | 8.3(5.5)/7.55 | ||
Lifting arm length | basic arm | m | 14.2 | |
longest main boom | m | 85.5 | ||
Longest main lifting arm + auxiliary lifting arm | m | 97.3 | ||
Longest main lifting arm + extension arm (optional) + auxiliary lifting arm | m | 115.1 | ||
maximum lifting moment | basic arm | kN·m | 4733.4 | |
longest main boom | kN·m | 2305 | ||
Longest main lifting arm + auxiliary lifting arm | kN·m | 9055 | ||
Longest main lifting arm + extension arm (optional) + auxiliary lifting arm | kN·m | 529.2 | ||
ook and Magnification | specified A | Number of pulleys | multiplying power | Hook weight/kg |
8 | 0 | 1 | 250 | |
60 | 5 | 11 | 585 |
working speed | project | parameter | Wire rope diameter/length | maximum single coil pull-out force |
main winch | Single rope speed: 0-135 m/min | 20mm/370m | 7.5t | |
gyration | 0-15r/min | |||
Start amplitude / End amplitude |
| |||
Extending arm / Contracting arm | 760s/740s(14.2m~85.5m) | |||
Vertical leg extension/retraction | 60s/55s | |||
Horizontal support leg extended/retracted | 20s/30s | |||
