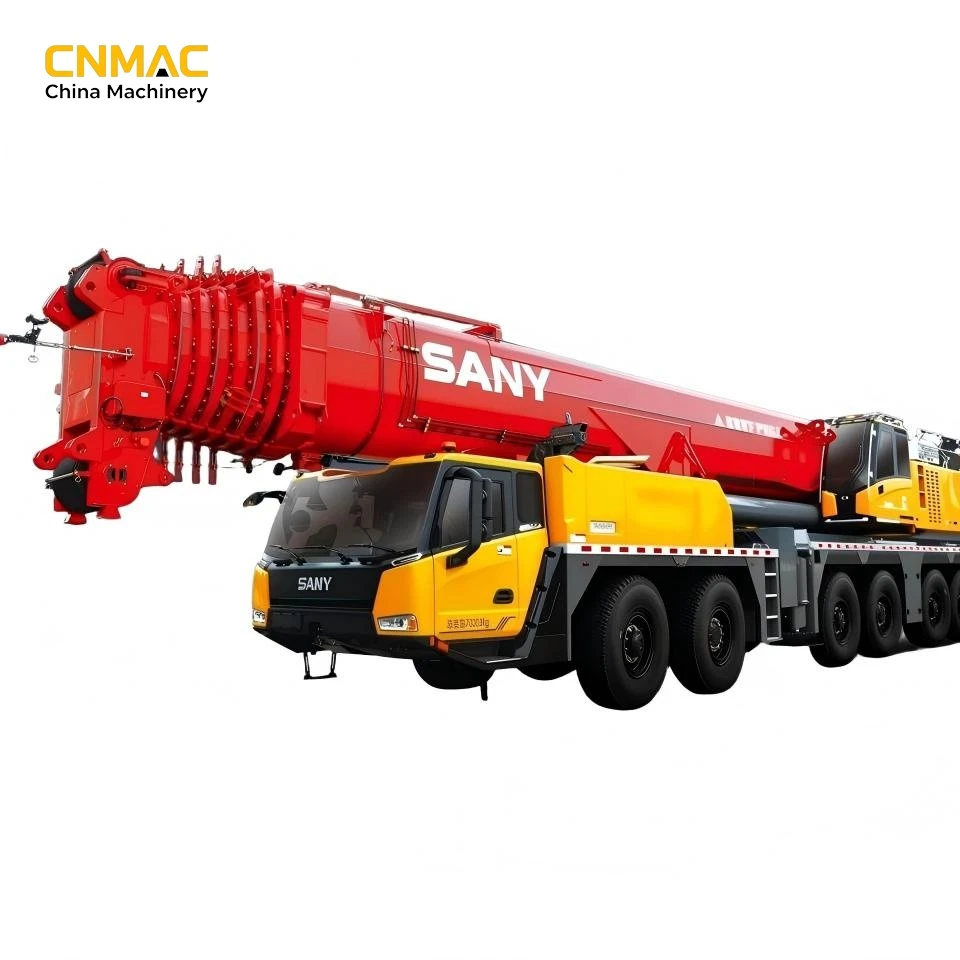

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 500t all-terrain crane | sac5000c8-8 in China. With abundant experience, we warmly welcome you to buy cheap 500t all-terrain crane | sac5000c8-8 made in China here from our factory. For price consultation, contact us.
Overview
Six-axle chassis with dual engines, equipped with an 8-section boom reaching 95 m, and a 40 m fixed jib (luffing type).
Supports self-assembly and disassembly.
Configured with 1431 load-bearing structural system, 535 large tires, heavy-duty carrier, brand-new dual-cabin design, and a completely new model platform.
Outstanding Lifting Performance
Main Boom: 8-section U-type boom, max length 95 m
Fixed Jib: Multiple configurations from 60 m to 120 m, with variable angles of 0°, 20°, and 40°
Max lifting height: up to 138.5 m
Short-radius configuration: Enables high performance under compact setup, with lifting efficiency increased by over 100% in certain conditions
Wind power applications: Extended 47 m wind power jib, covering wind turbine components up to 100 m hub height
Excellent Travel Performance
All-wheel steering on 6th axle structure, with 4-axle drive
Multiple steering modes for strong adaptability in complex job sites
Intelligent multi-angle voice interaction system, real-time machine monitoring, adaptive control, and improved driving comfort
Powerful drivetrain with optimized transmission and braking system for enhanced safety and stability
Standard slip ring system and large-diameter reel improve transfer efficiency
No speed limitation during boom transportation; maximum travel speed up to 40 km/h
High Efficiency & Reliability
Multi-stage filtration system with electro-hydraulic proportional control and multi-level pressure regulation for optimized performance
Advanced boom tension control technology with one-button automatic extension/retraction, improving working efficiency by 20%
Mid-to-long boom lifting capacity increased by 5%–10%
Active anti-bending safety correction technology ensures safer long-boom operations
Flexible configuration combinations to adapt to narrow working environments
Safety & Reliability
Multi-function wireless remote control system for safer and more convenient operation
Equipped with safety protection programs and fault diagnosis system
High-precision, high-stability load moment limiter (LMI) for comprehensive lifting protection
Multiple camera systems for real-time monitoring and data feedback
GCP System (Remote Monitoring)
Advanced remote equipment monitoring and management system for the domestic market
Enables real-time operation tracking, process coordination, and remote fault diagnosis
Intelligent monitoring interface with multi-screen display for full visibility of equipment status and maintenance conditions
 |  |
 |  |
 |  |  |
Main Technical Parameters
| Model | SAC5000C8-8 | |||
main technical parameters table | ||||
type | project | unit | parameter | |
rated load weight | maximum lifting capacity | t | 500 | |
Size parameters (available for purchase) | Total length of the machine | mm | 17745 | |
Full width of the machine | mm | 3000 | ||
total height of the machine | mm | 4000 | ||
Excessive wheelbase | first and second wheelbase | mm | 1750 | |
Second and third wheelbases | mm | 3370 | ||
Third and fourth wheelbases | mm | 1750 | ||
Fourth and fifth wheelbases | mm | 2200 | ||
Fifth and sixth wheelbases | mm | 1750 | ||
total mass of the machine | The entire machine has 2-8 arms and outrigger. | kg | 72000 | |
First, second, and third axis loads | kg | 12000 | ||
Weight parameter (Announcement status) | Fourth, fifth, and sixth axis loads | kg | 12000 | |
power rating | kW/rpm | 485/1800 | ||
Power parameters (downshift) | acrot orque | N.m/rpm | 3200/900-1400 | |
power rating | kW/rpm | 221/2200 | ||
Power parameters (in the car) | acrot orque | N.m/rpm | 1200/1400-1600 | |
maximum speed | km/h | 70 | ||
Driving parameters | minimum turning radius | m | 12 | |
Wheel Mode | – | 12×8+12 | ||
minimum ground clearance | mm | 355 | ||
approach angle | * | 16 | ||
departure angle | * | 12 | ||
maximum gradability | – | 44% | ||
Fuel consumption per 100 kilometers | L | ≤112 | ||
Temperature range | ℃ | -20~+40 | ||
Key performance parameters | minimum rated amplitude | m | 3 | |
number of arm segments | – | 8 | ||
Arm shape | – | U C-arm C | ||
maximum lifting capacity | t·m | 1500 | ||
brachium | basic arm | m | 16.4 | |
full extension arm | m | 95 | ||
longest main arm + longest fixed auxiliary arm | m | 138.5 | ||
Leg span (long × short) | m | 9.6×9.6 | ||
collar arm mounting angle | * | 0/20/40 | ||
main technical parameters table | |||
type | project | unit | parameter |
working speed parameter | Maximum lifting speed of main winch with single rope (no load) | m/min | 130 |
Maximum time for full extension of the main arm (automatic extension) | s | 1150 | |
full boom up/down time | s | 95/95 | |
swiveling speed | r/min | 1.2 | |
air-conditioning | Car air conditioning | - | Heating, Cooling |
Get off the car and turn on the air conditioner. | - | Heating, Cooling | |
axle weight | axle weight | 1 | 2 | 3 | 4 | 5 | 6 | total weight |
t | 12 | 12 | 12 | 12 | 12 | 12 | 72 | |
remarks | Excluding the second to eighth telescopic arms, rear support legs, hooks, counterweights, lifting interface devices, and other accessories. | |||||||
Hook and Magnification | Hook capacity (t) | Number of pulleys | Number of threads | weight (kg) | remarks | |||
200 | 9 | 18 | 2440 | apolegamy | ||||
160 | 7 | 14 | 1627 | standard configuration | ||||
80 | 3 | 7 | 723 | apolegamy | ||||
32 | 1 | 3 | 521 | apolegamy | ||||
12.5 | 0 | 1 | 526 | apolegamy | ||||
working speed | project | unit | parameter | |
full extension time of the main arm | s | 1150 | ||
hoist time | s | 95/95 | ||
swiveling speed | r/mirn | 1.2 | ||
Lift speed (maximum single rope) | Main winch (Level 4) | m/min | 130 | |
Horizontal Zoom | S | 50/50 | ||
leg extension time | S | 50/55 | ||
