Product Description

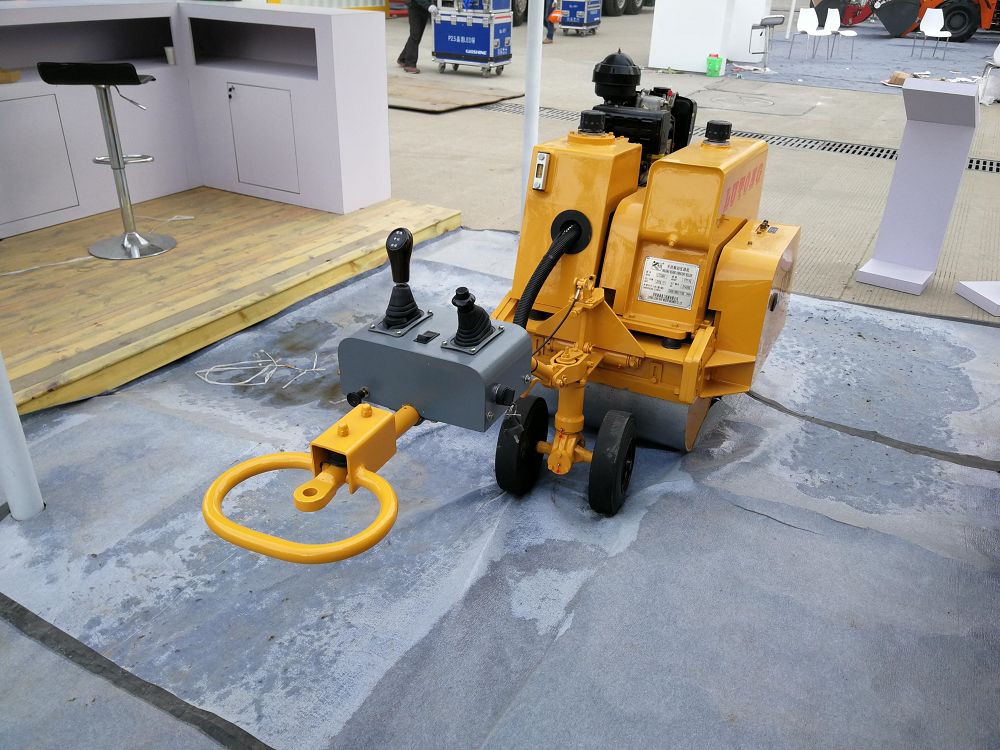

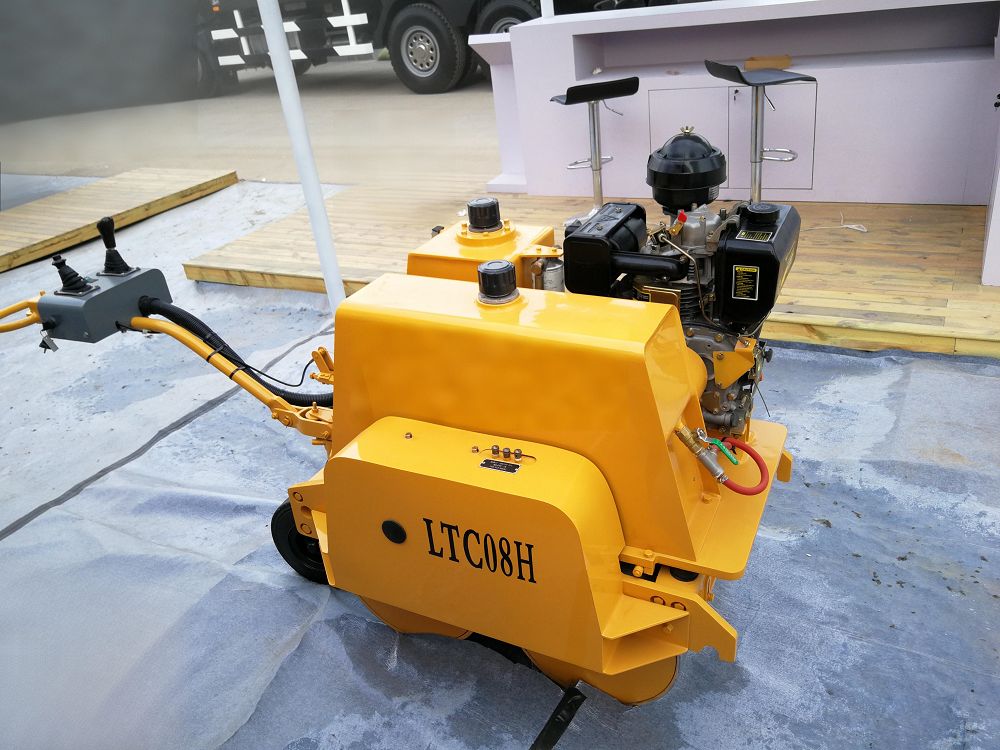

LTC08H Hydraulic walking behind vibrating road roller can be used for municipal road construction, highway maintenance, nd rolling work at narrow road surface,such as foundation of groove wider than 0.8m, building construction, back filling for pipeline and gymnasium ground.
 |  |
 |  |
Main Features
1:The whole machine has a nice shape, compact structure and small size; it can do rolling work in narrow ground;
2:All wheel drive, strong climbing capability;

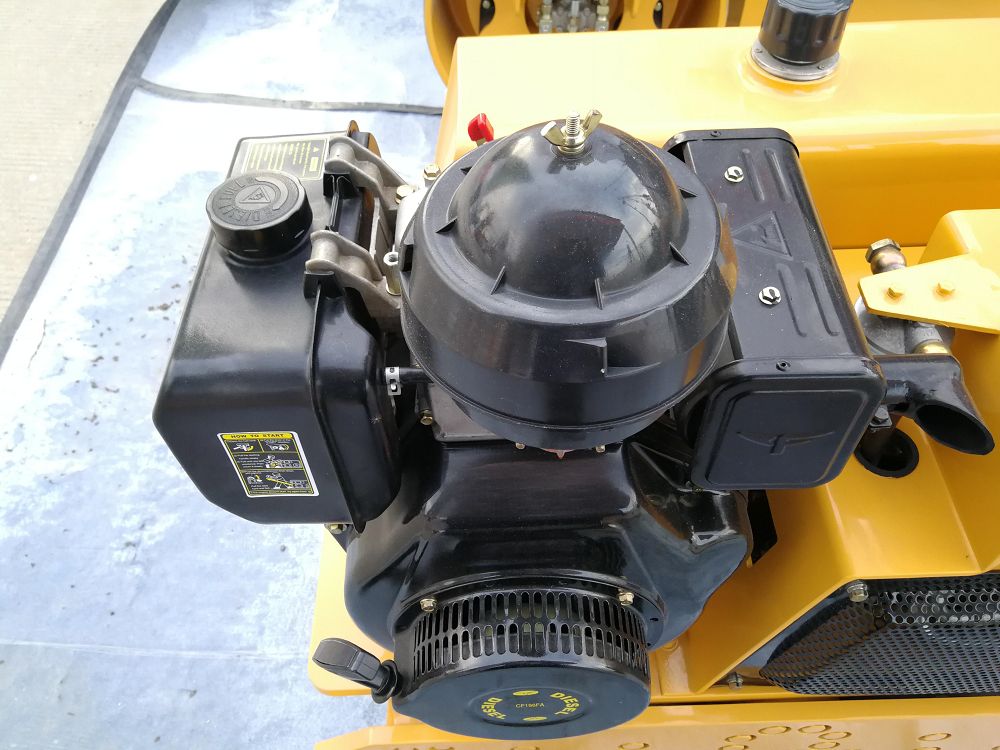

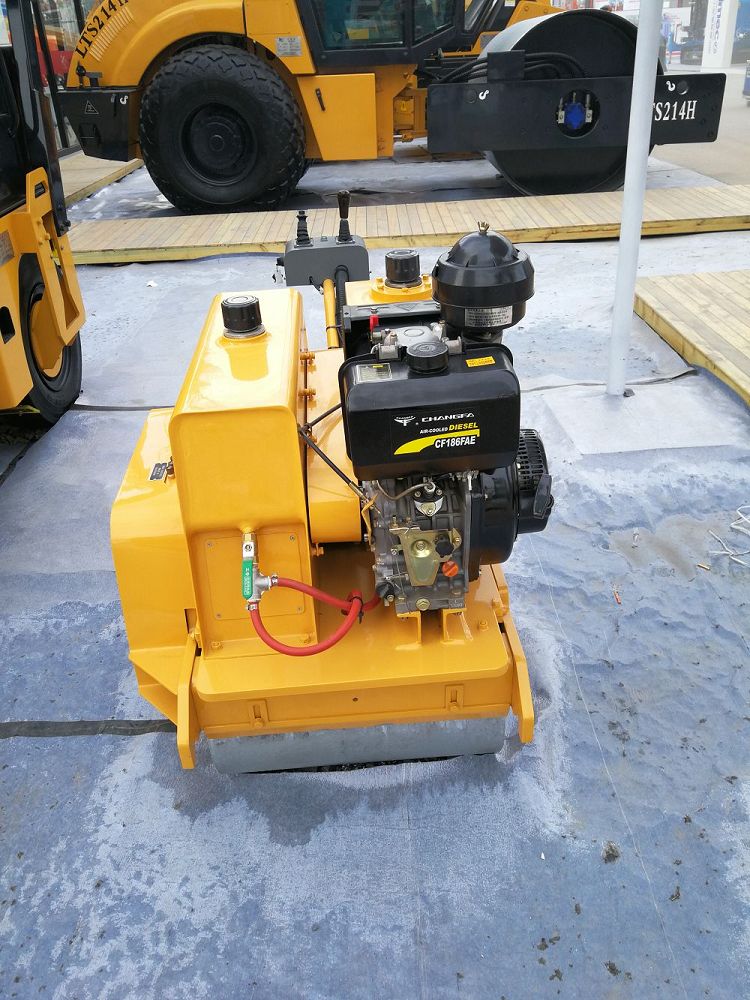

3:Using CFI86F vertical direct-spray air-cooled engine, with both electrical and manual start up devices;

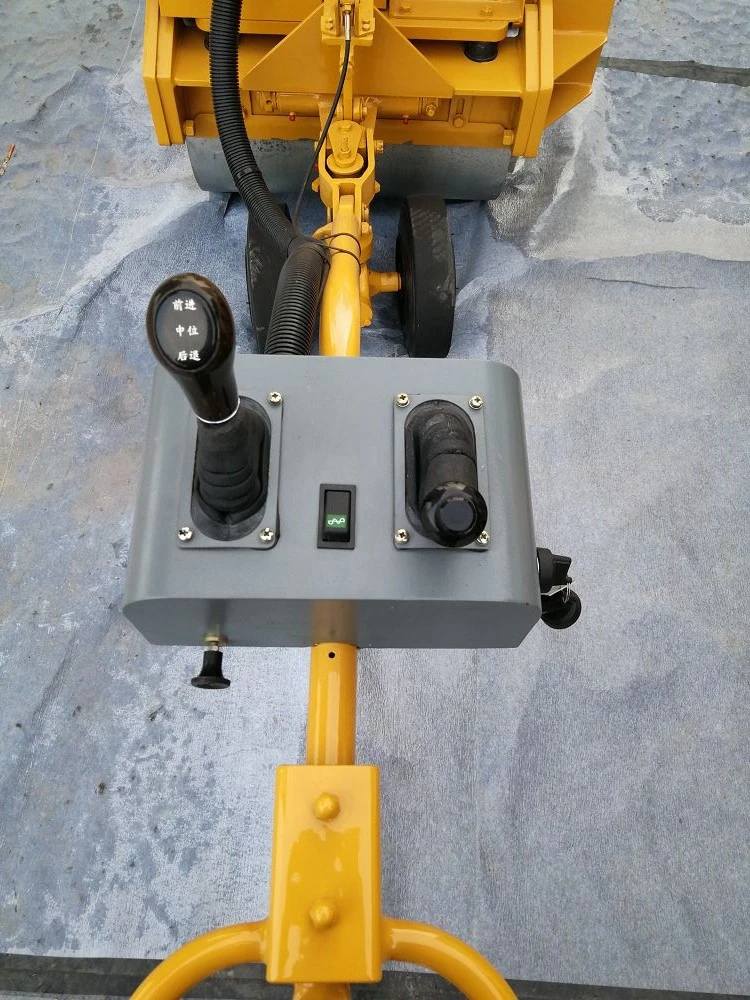

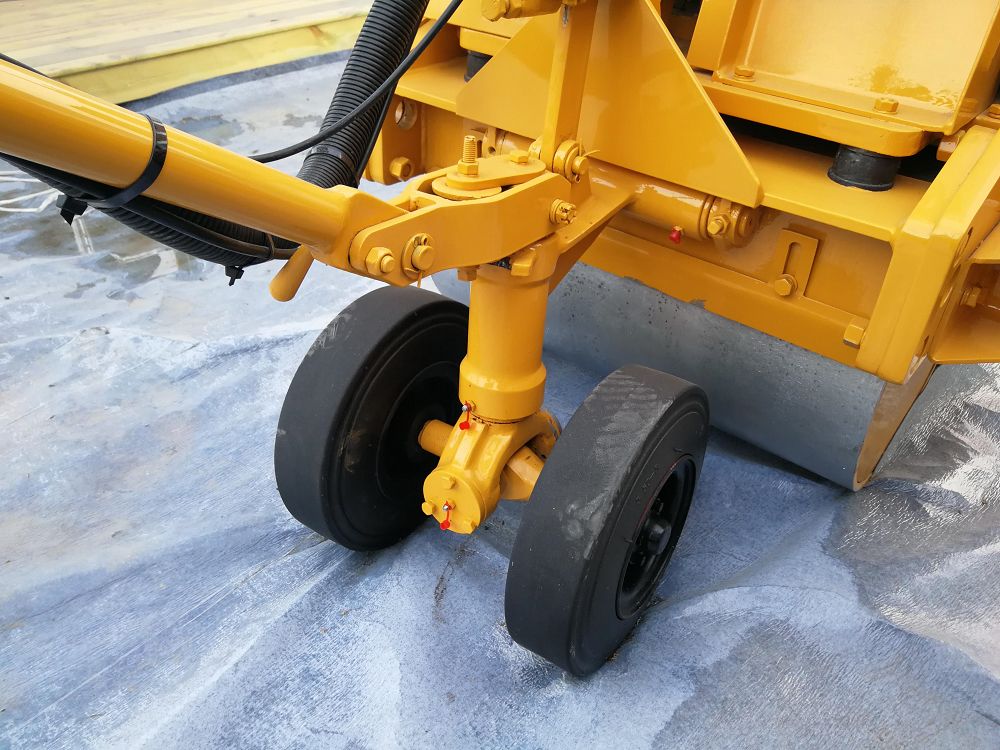

4:Designed with guide wheel and joystick, it is labor saving and easy to control.Adopt imported pump and starting motor,CVT.
 |  |
Model | LTC08H |
Operating mass | 770kg |
Static linear load | 62/62N/cm |
Vibration amplitude | 0.25mm |
Centrifugal force | 12Kn |
Vibration frequency | 48Hz |
Travel speed | 0-4Km/h |
Grade ability | 40% |
Turning radius | 2700mm |
Overall dimension (LxWxH) | 2400x880x1100mm |
Vibration drum diameter | 400mm |
Drum width | 600mm |
Wheel base | 470mm |
Diesel engine power | 5.68Kw |
Diesel engine model | CF186F |
Sprinkler tank capacity | 32L |
Driving pump | DANFOSS |
Driving motor | Eton |
Ship | 30units/40HQ |
