China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 4t hydraulic drive road roller | ltc204 in China. With abundant experience, we warmly welcome you to buy cheap 4t hydraulic drive road roller | ltc204 made in China here from our factory. For price consultation, contact us.
Product Introduction

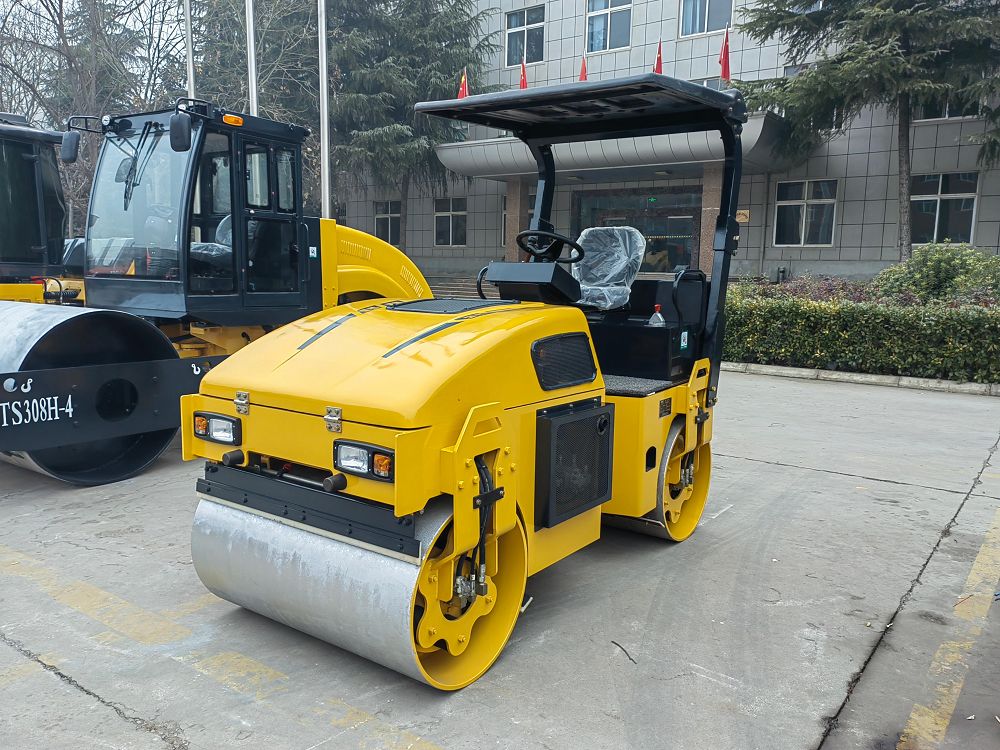

LTC204 double steel-wheeled vibratory roller, applicable for maintenance of municipal roads , as well as the compaction of the narrow road surfaces such as groove foundation, building construction, pipeline backfill and stadium.
 |  |
Main Characteristic
4T compact design –
Ideal for narrow roads & confined job sites
Hydraulic double-drum drive & vibration –
Stable, efficient compaction
2×30 kN vibration force + 50 Hz frequency –
Strong and consistent density
Dual drum structure –
Uniform compaction & smooth surface finish

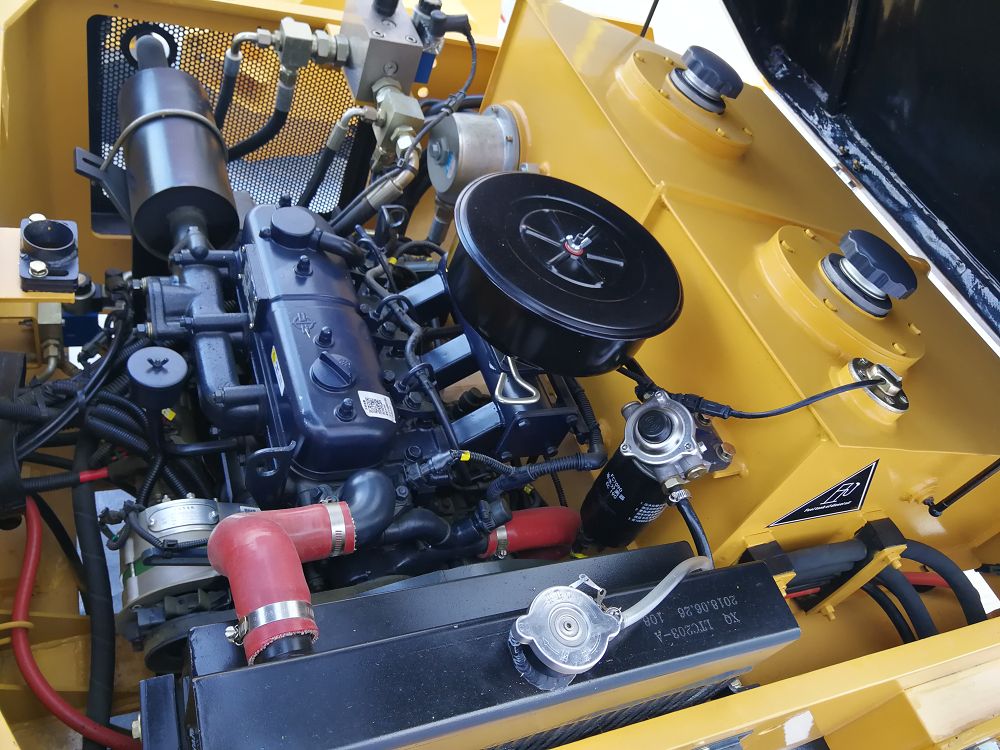

ZN390B diesel engine (26.5 kW) –
Reliable, easy maintenance
Water spray & scraper system –
Clean drums, better asphalt quality
0–12 km/h travel speed & 25% gradeability –
Flexible on different terrains
200 L water tank –
Longer continuous operation
 |  |
Model | LTC204 |
Operating mass | 4000kg |
Static linear load | Front 150/ Rear 150N/cm |
Vibration amplitude | Front 0.5/ Rear 0.5mm |
Centrifugal force | 2x30Kn |
Vibration frequency | 50Hz |
Max Travel speed | 0-12Km/h |
Ground clearance | 320mm |
Electrical voltage | 24V |
Grade ability | 25% |
Overall dimension (LxWxH) | 2900x1400x2520mm |
Drum diameter | 700mm |
Drum width | 1300mm |
Wheel base | 2010mm |
Diesel engine power | 26.5Kw |
Diesel engine model | ZN390B |
Water tank capacity | 200L |
Ship | 2units/20GP 4units/40HQ |
