Product Introduction

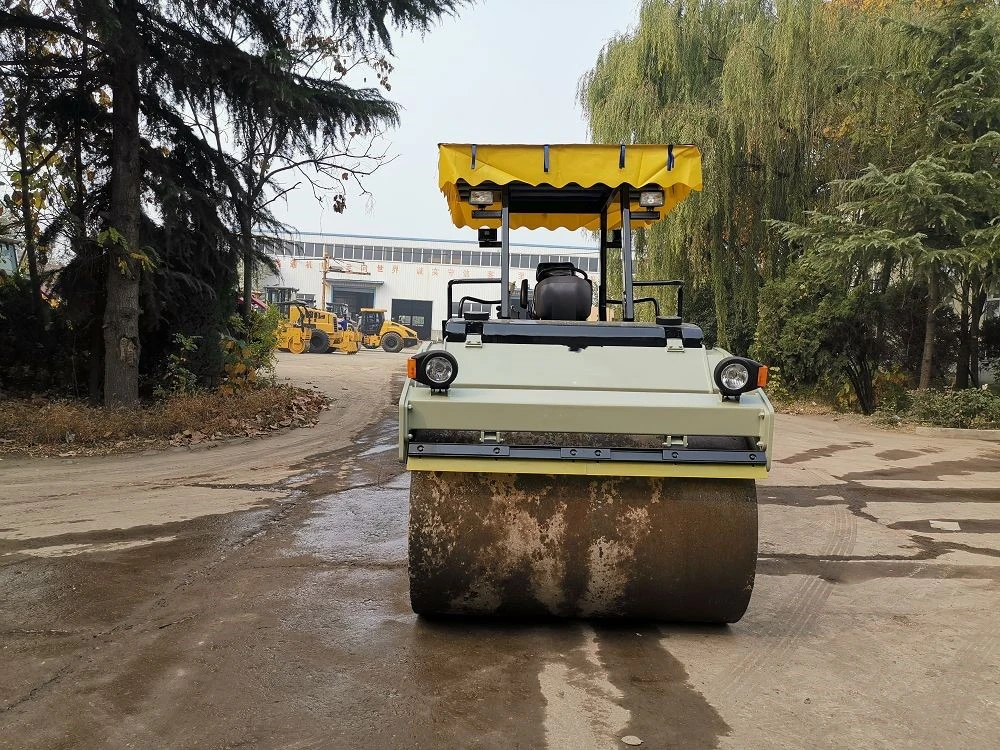

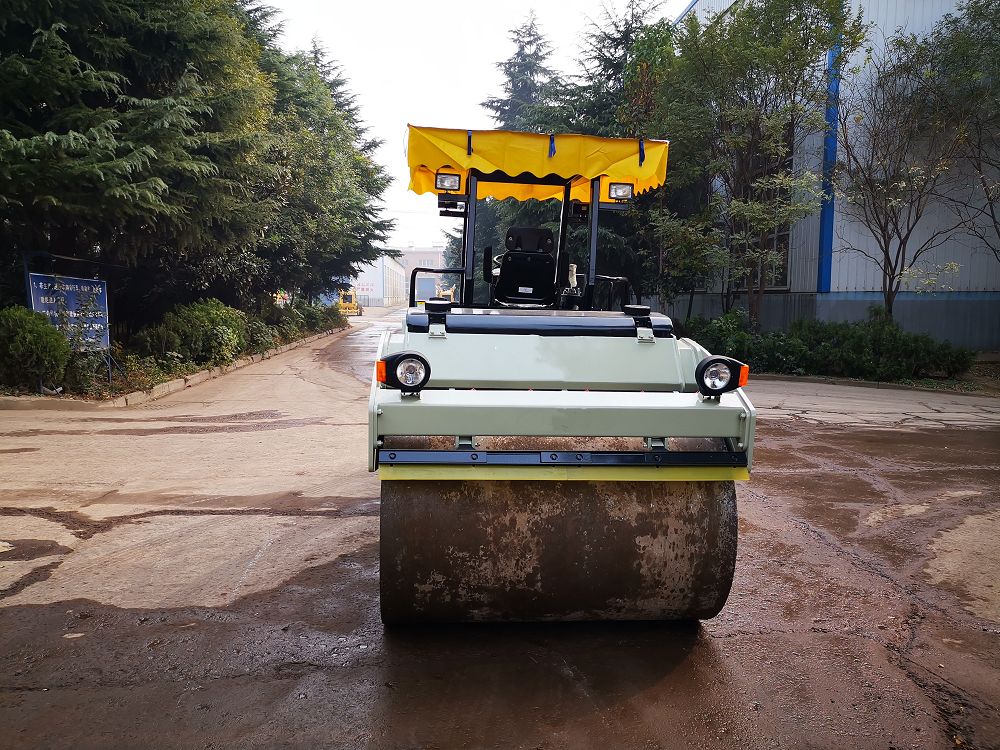

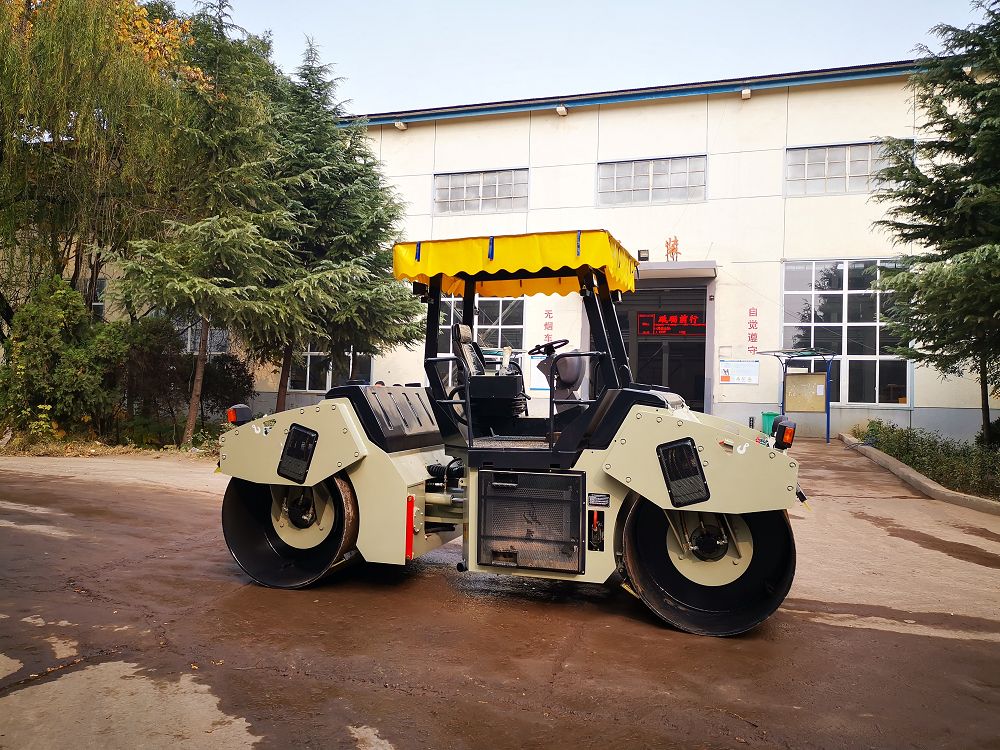

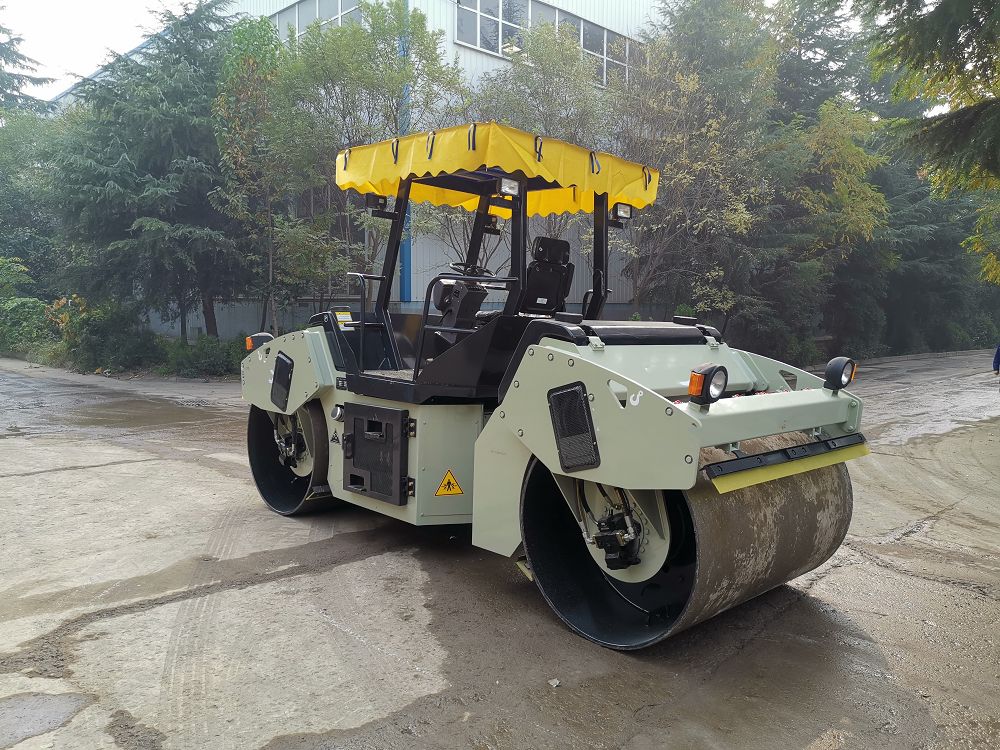

LTC210 Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller. It is Primarily used for the compaction of road bituminous course, sand gravel mixtures and RCC material, Being a universal compaction equipment for highway, municipal road, park area and industry ground etc.
 |  |
Main Characteristic
10T class rollers
Are widely used as primary compaction equipment for medium to large projects
Dual vibration system
Allows one machine to handle multiple layers (sub-base + asphalt)
Premium components (Cummins + Danfoss)
Increase reliability and resale value
Crab steering advantage
Improves edge compaction and jobsite efficiency
 |  |
Model | LTC210 |
Operating mass | 10000kg |
Font axle load | 5000kg |
Rear axle load | 5000kg |
Static linear load | 238N/cm |
Form of frame | fork-type |
Type of water spray | pressure |
Water tank capacity | 400x2 L |
Fuel tank capacity | 80 L |
Hydraulic oil tank capacity | 65 L |
Vibration amplitude | 0.67(High)/0.34(Low)mm |
Vibration frequency | 45(high)/50(low)Hz |
Centrifugal force | 90x2(hihg)/69x2(low)Kn |
Travel Speed | 0-10Km/h |
Steering angle | ±30° |
Electrical voltage | 24V |
Grade ability | 40% |
Turning radius | 6000mm |
Overall dimension (LxWxH) | 4558x1840x2674mm |
Vibration drum diameter | 1150mm |
Drum width | 1730mm |
Wheel base | 3217mm |
Diesel engine power | 75Kw/2400rpm |
Diesel engine model | CUMMINS 4BT3.9 |
Ship | 1 unit/40HQ 3units/2x40HQ |
Optional：Edge cutter,Canopy. | |
