Product Introduction

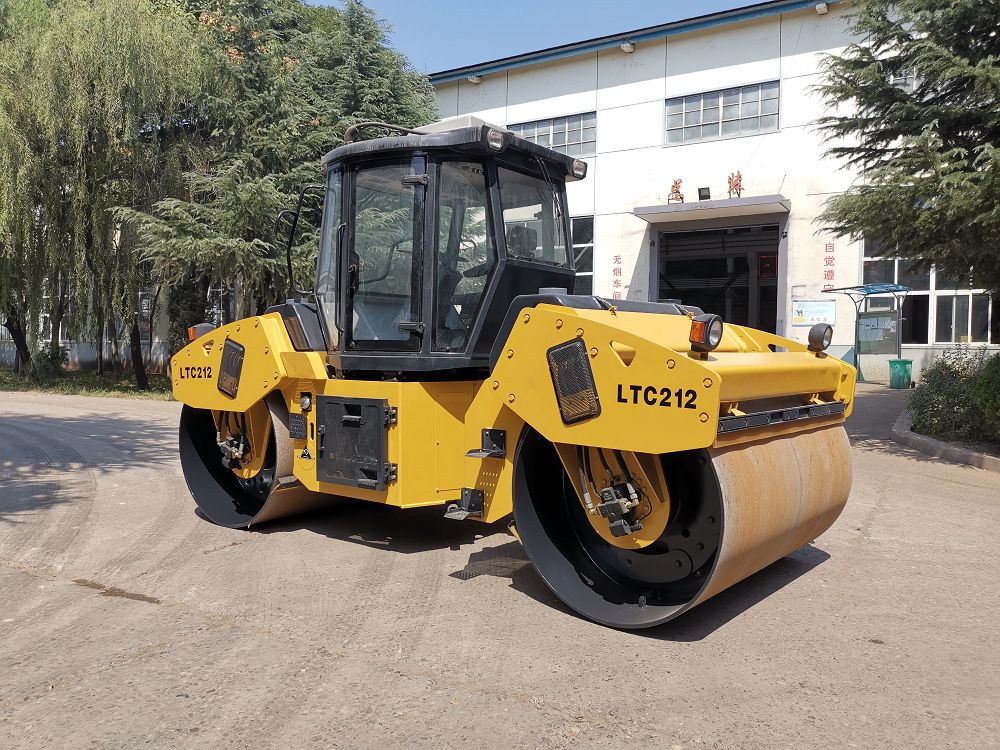

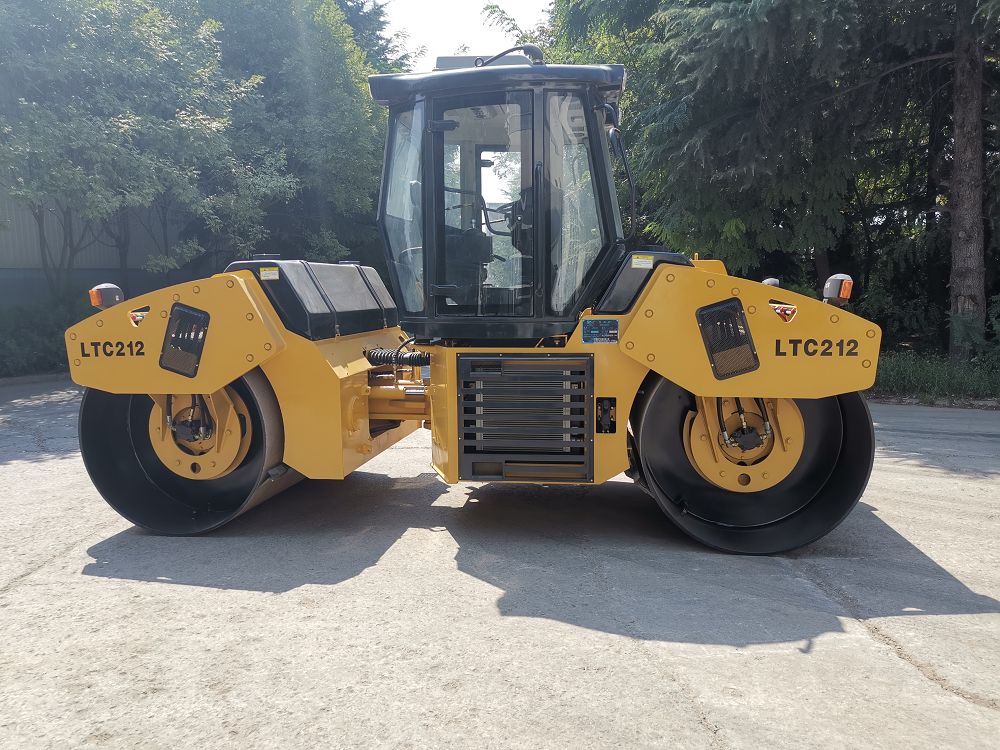

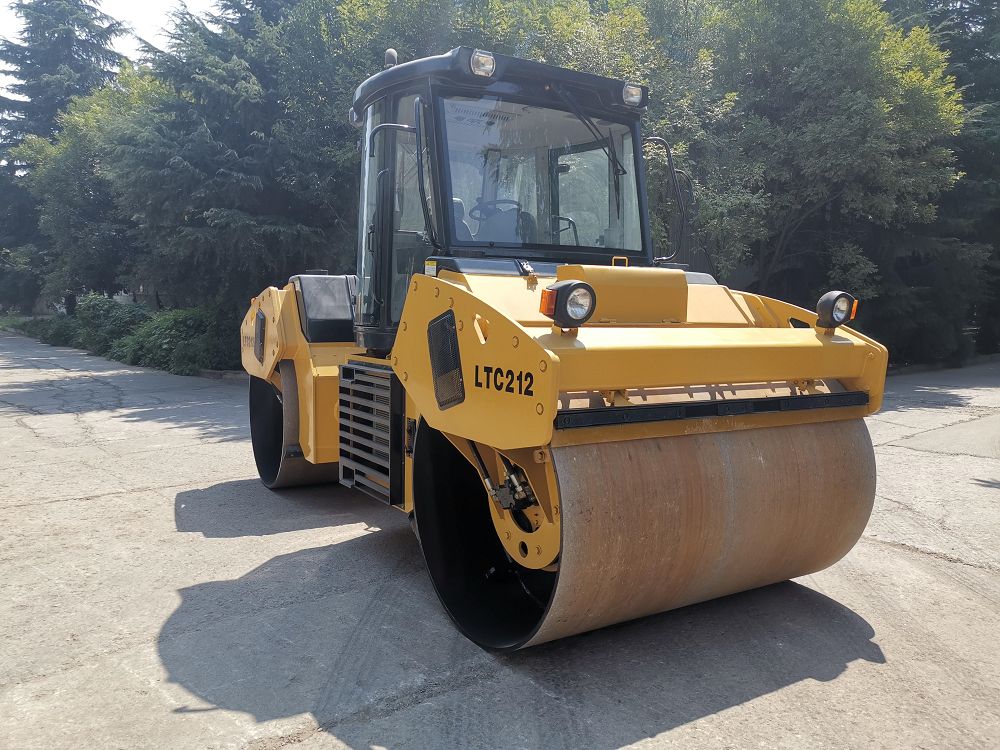

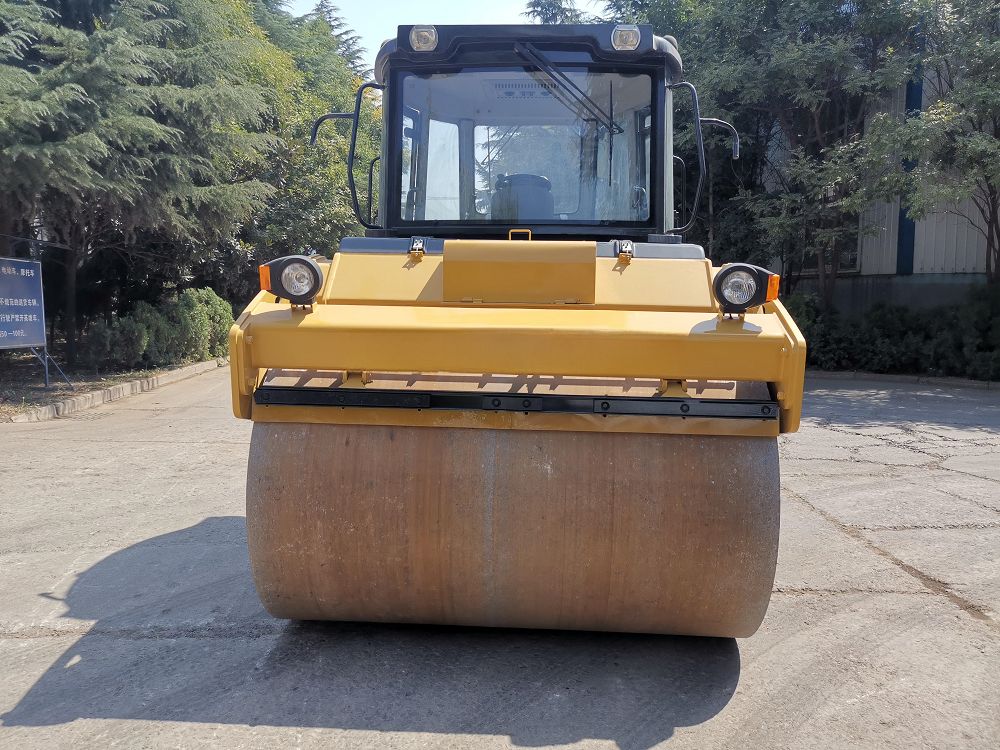

LTC212 Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller. It is Primarily used for the compaction of road bituminous course, sand gravel mixtures and RCC material, Being a universal compaction equipment for highway, municipal road, park area and industry ground etc.
 |  |
Main Characteristic
12T heavy-duty tandem roller –
Ideal for highways & large-scale projects
Full hydraulic drive & vibration –
Smooth control, high efficiency
Dual frequency & dual amplitude –
Suitable for asphalt & base compaction
Cummins diesel engine –
Reliable performance, easy maintenance
Danfoss hydraulic components –
Stable system, long service life
Articulated steering + optional crab steering –
Excellent maneuverability
Spacious cabin with A/C –
Improved operator comfort
Tiltable cabin –
Easy maintenance access
Fork-type frame –
Strong stability & superior compaction performance
Fork-type frame –
Strong stability & superior compaction performance
 |  |
Model | LTC212 |
Operating mass | 12000kg |
Font axle load | 6000kg |
Rear axle load | 6000kg |
Static linear load | 286N/cm |
Form of frame | fork-type |
Type of water spray | pressure |
Water tank capacity | 600x2 L |
Fuel tank capacity | 154 L |
Hydraulic oil tank capacity | 65 L |
Vibration amplitude | 0.8(High)/0.4(Low)mm |
Vibration frequency | 46(high)/40(low)Hz |
Centrifugal force | 160x2(hihg)/90x2(low)Kn |
Travel Speed | 0-10Km/h |
Steering angle | ±30° |
Electrical voltage | 24V |
Grade ability | 40% |
Turning radius | 7000mm |
Overall dimension (LxWxH) | 5060x2250x3300mm |
Vibration drum diameter | 1350mm |
Drum width | 2100mm |
Wheel base | 3717mm |
Diesel engine power | 110Kw/2300rpm |
Diesel engine model | CUMMINS 6BT5.9 |
Ship | 1 unit/40HQ |
Optional：Edge cutter,Canopy. | |
