China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 14t hydraulic drive road roller | ltc214 in China. With abundant experience, we warmly welcome you to buy cheap 14t hydraulic drive road roller | ltc214 made in China here from our factory. For price consultation, contact us.
Product Introduction

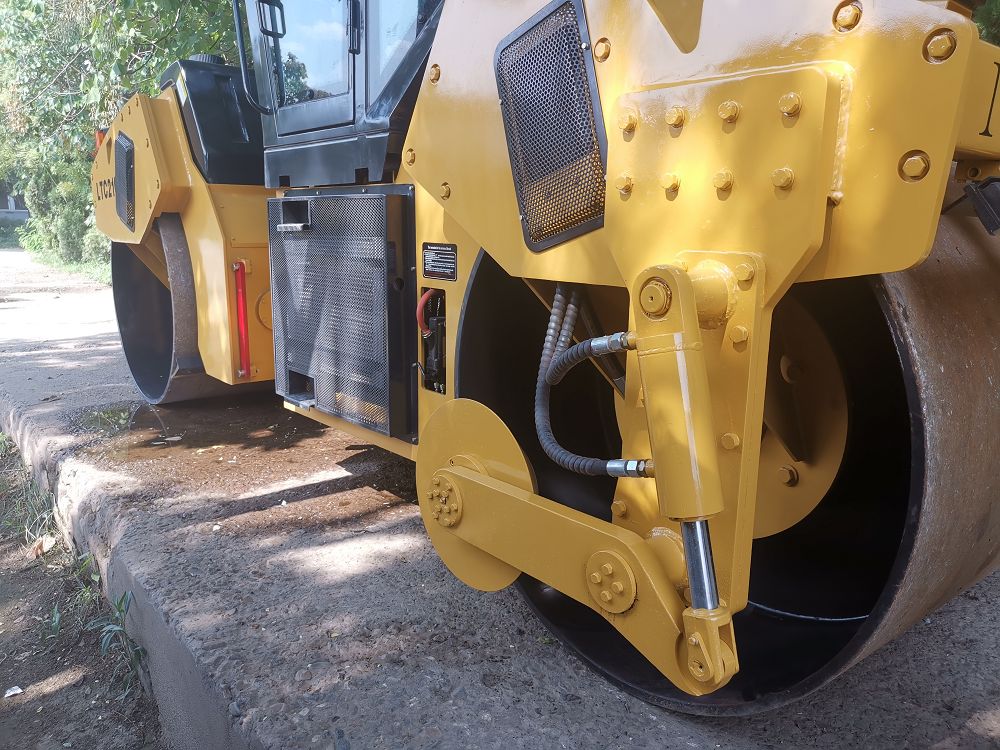

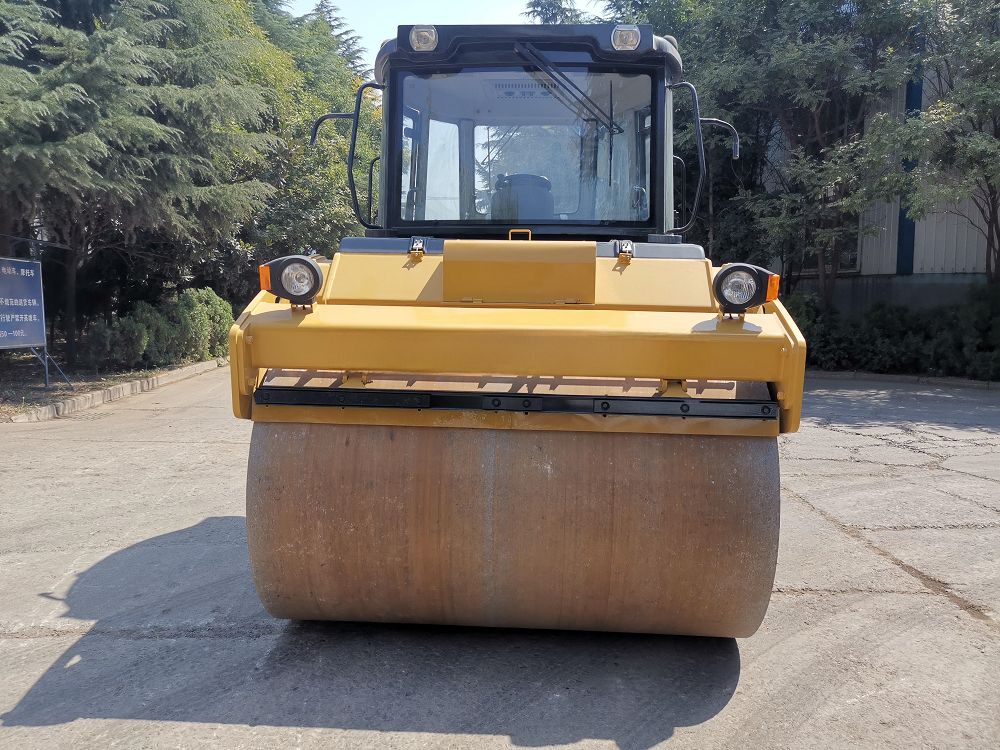

LTC214 Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller. It is Primarily used for the compaction of road bituminous course, sand gravel mixtures and RCC material, Being a universal compaction equipment for highway, municipal road, park area and industry ground etc.
 |  |
Main Characteristic
14T rollers are core equipment for highway base and asphalt compaction
High centrifugal force (2×160 kN) ensures deep compaction with fewer passes
Dual vibration system allows multi-layer application with one machine
Premium setup (Cummins + Danfoss) increases reliability and global competitiveness
Larger drum width (2100 mm) improves job efficiency and coverage
 |  |
Model | LTC214 |
Operating mass | 14000kg |
Font axle load | 7000kg |
Rear axle load | 7000kg |
Static linear load | 333N/cm |
Form of frame | fork-type |
Type of water spray | pressure |
Water tank capacity | 600x2 L |
Fuel tank capacity | 154 L |
Hydraulic oil tank capacity | 65 L |
Vibration amplitude | 0.8(High)/0.4(Low)mm |
Vibration frequency | 46(high)/40(low)Hz |
Centrifugal force | 160x2(high)/90x2(low)Kn |
Travel Speed | 0-10Km/h |
Steering angle | ±30° |
Electrical voltage | 24V |
Grade ability | 40% |
Turning radius | 7000mm |
Overall dimension (LxWxH) | 5060x2250x3300mm |
Vibration drum diameter | 1350mm |
Drum width | 2100mm |
Wheel base | 3717mm |
Diesel engine power | 110Kw/2300rpm |
Diesel engine model | CUMMINS 6BT5.9 |
Ship | 1 unit/40HQ |
Optional：Edge cutter,Canopy. | |
