China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 3t combined hydraulic drive road roller | ltc203p in China. With abundant experience, we warmly welcome you to buy cheap 3t combined hydraulic drive road roller | ltc203p made in China here from our factory. For price consultation, contact us.
Product Description

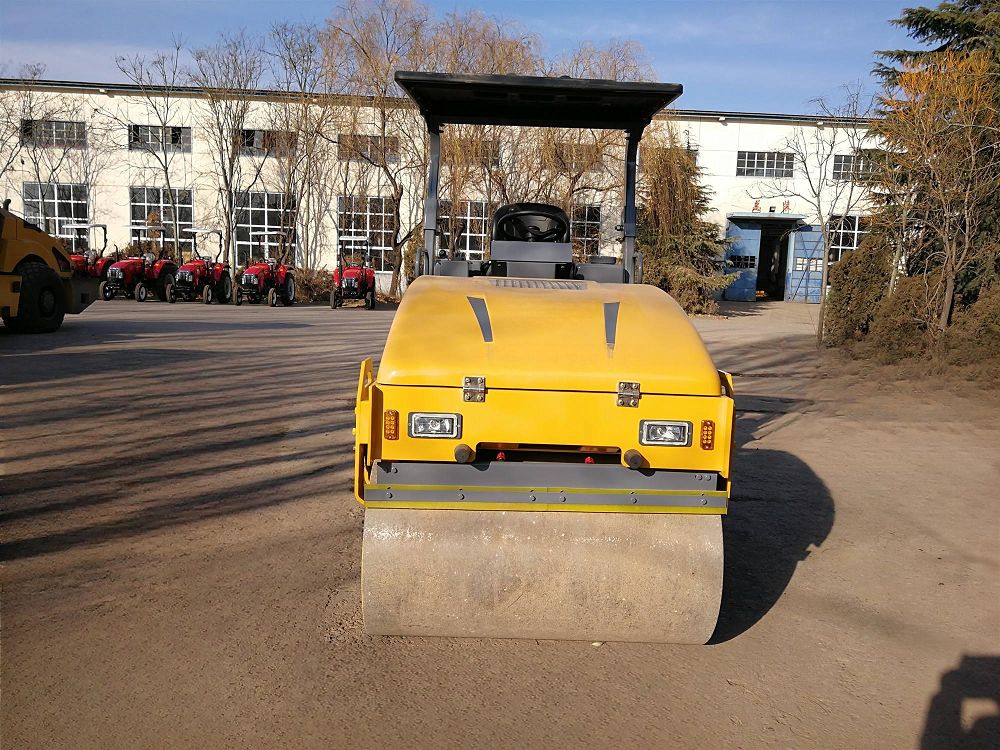

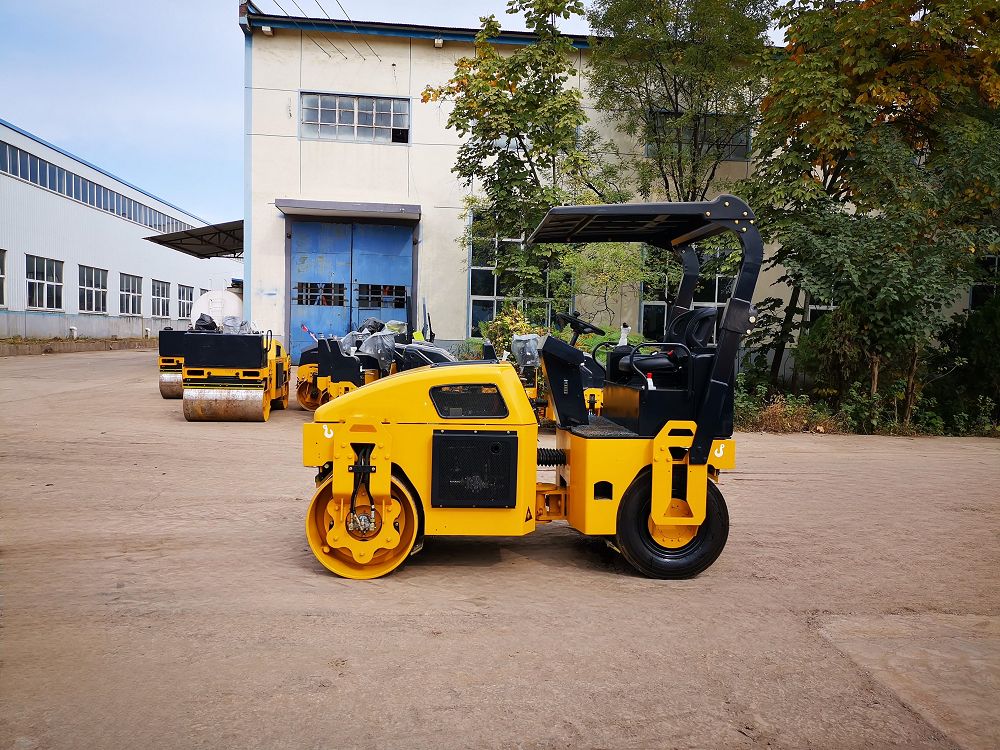

LTC203P front drum rear tire hydraulic drive combined roller, applicable for maintenance of municipal roads , as well as the compaction of the narrow road surfaces such as groove foundation, building construction, pipeline backfill and stadium.
 |  |
Main Characteristic
Hydraulic double-wheel drive & vibration –
Reliable performance with excellent function-to-price ratio.
Front and rear hydraulic drive –
Front drum vibration ensures efficient compaction.

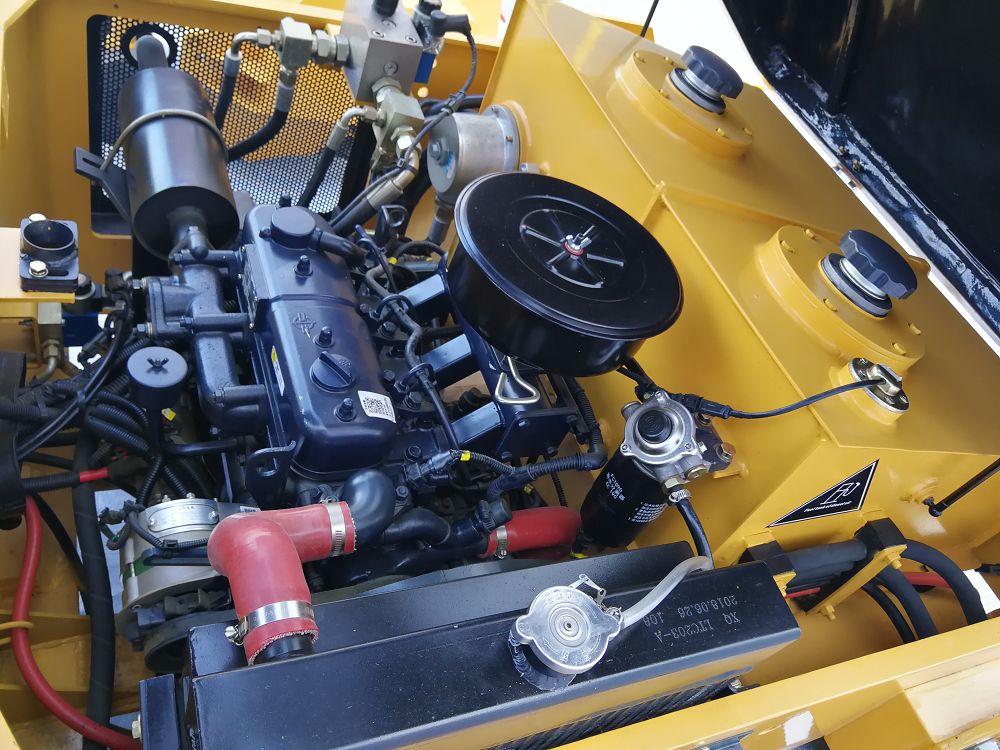

N390 diesel engine –
Easy to operate and maintain.
Scraping & water spray on all wheels –
Optional advanced sprinkler system allows intermittent spraying for optimal performance.
Compact integral design –
Perfect for narrow sites.
Rear tires with four smooth drums –
Improves asphalt compaction quality and climbing ability.
High-end operator seat –
Enhanced comfort and reduced fatigue.
 |  |
Model | LTC203P |
Operating mass | 3000kg |
Static linear load | Front 120/ Rear 103N/cm |
Vibration amplitude | 0.5mm |
Centrifugal force | 30Kn |
Vibration frequency | 50Hz |
Max Travel speed | 0-12Km/h |
Ground clearance | 320mm |
Electrical voltage | 24V |
Grade ability | 30% |
Overall dimension (LxWxH) | 2760x1400x2520mm |
Drum diameter | 700mm |
Drum width | 1250mm |
Quantity of rear tire | 4 Pic |
Specification of rear tire | 7.50-15 |
Wheel base | 2010mm |
Diesel engine power | 26.5Kw |
Diesel engine model | ZN390B |
Water tank capacity | 200L |
Ship | 2units/20GP 4units/40HQ |
