Product Introduction

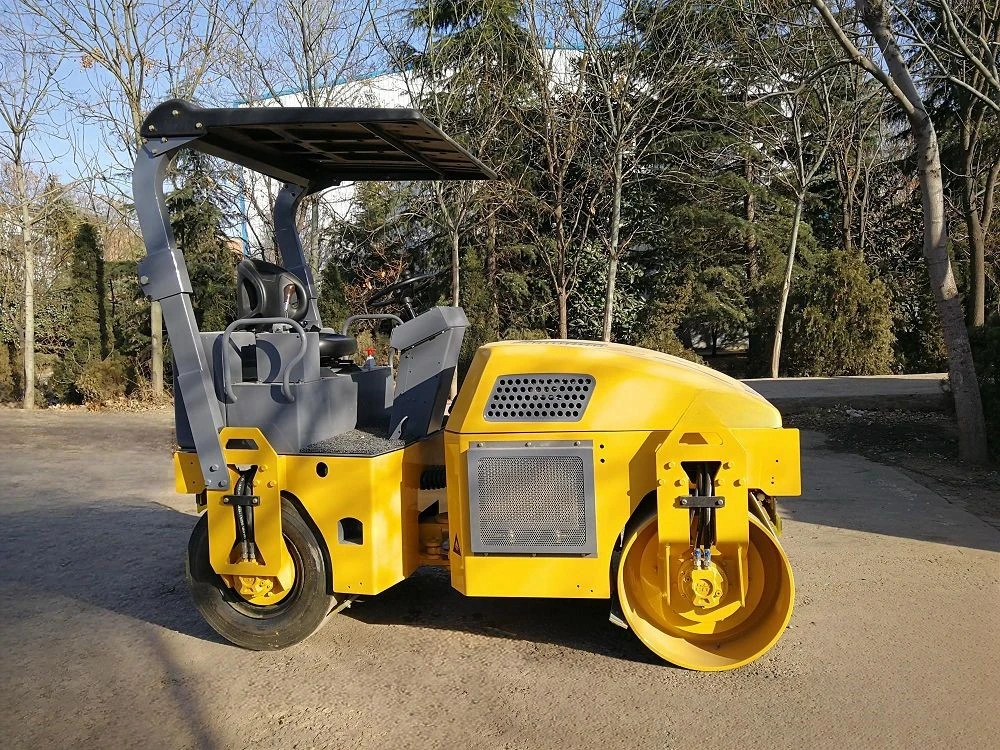

LTC204P front drum rear tire hydraulic drive combined roller, applicable for maintenance of municipal roads , as well as the compaction of the narrow road surfaces such as groove foundation, building construction, pipeline backfill and stadium.
 |  |
Main Characteristic
Hydraulic dual-wheel drive with vibration and steering –
Stable, reliable, and cost-effective.
Front and rear hydraulic drive –
Front drum vibration for uniform compaction.
N390B diesel engine –
User-friendly, low-maintenance, and efficient.
Integrated scraping & water spray on all wheels –
Optional advanced pump allows intermittent spraying, enhancing performance.
Compact all-in-one design –
Ideal for narrow or confined sites.
Rear four-smooth-tire configuration –
Improves asphalt compaction quality and climbing ability.
Premium operator seat –
Boosts comfort and reduces fatigue during long shifts.
 |  |
Model | LTC204P |
Operating mass | 3800kg |
Static linear load | Front 150/ Rear 120N/cm |
Vibration amplitude | 0.5mm |
Centrifugal force | 30Kn |
Vibration frequency | 50Hz |
Max Travel speed | 0-12Km/h |
Ground clearance | 320mm |
Electrical voltage | 24V |
Grade ability | 30% |
Overall dimension (LxWxH) | 2760x1400x2520mm |
Drum diameter | 700mm |
Drum width | 1300mm |
Quantity of rear tire | 4 Pic |
Specification of rear tire | 7.50-15 |
Wheel base | 2010mm |
Diesel engine power | 26.5Kw |
Diesel engine model | ZN390B |
Water tank capacity | 200L |
Ship | 2units/20GP 4units/40HQ |
