China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 16t mechanical drive road roller | lt216b in China. With abundant experience, we warmly welcome you to buy cheap 16t mechanical drive road roller | lt216b made in China here from our factory. For price consultation, contact us.
Product Description

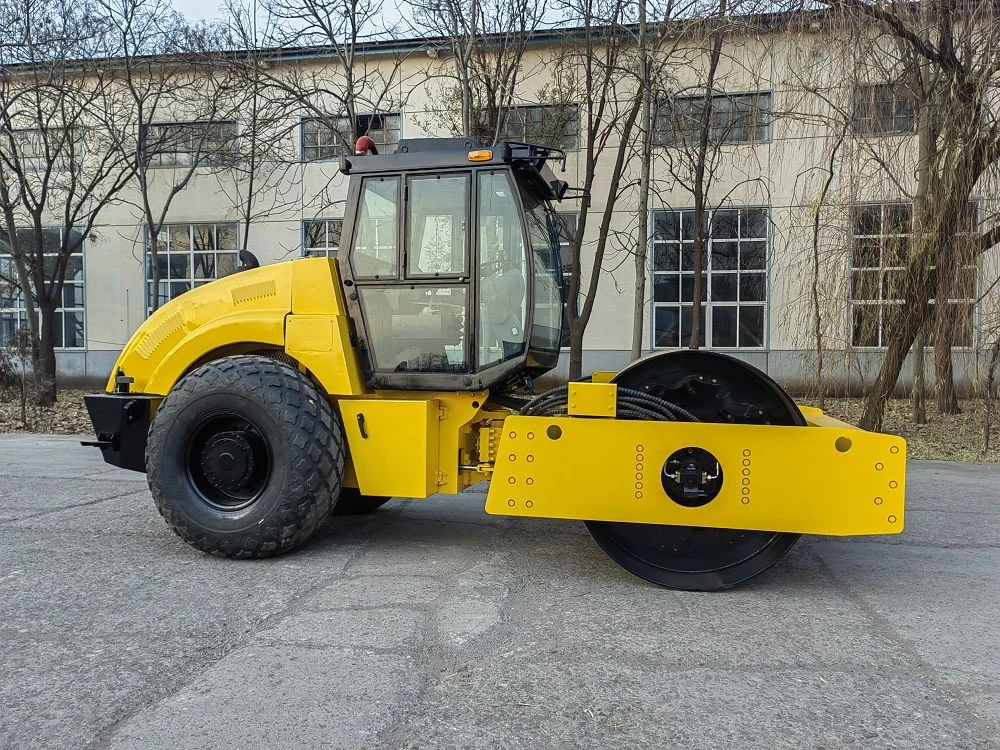

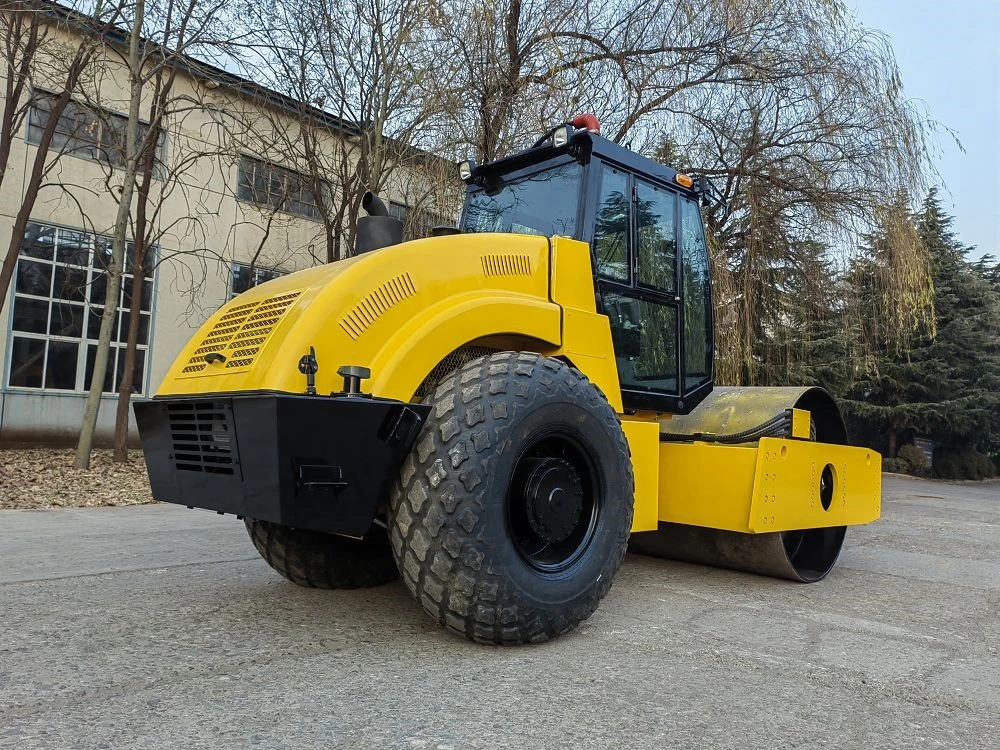

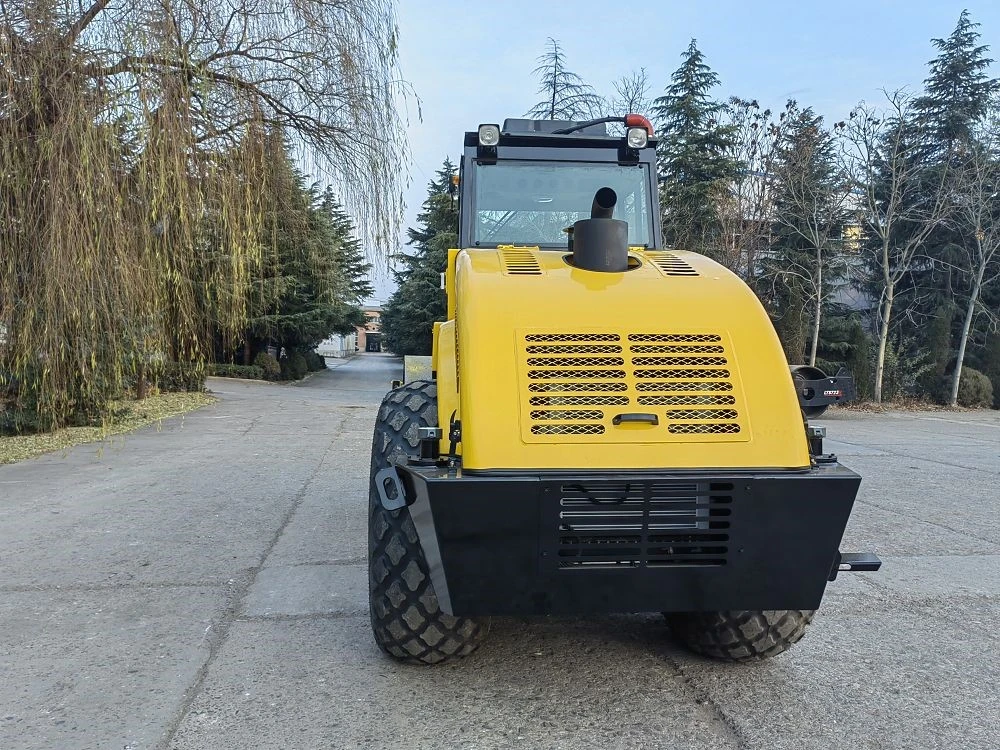

The LT216B 16t Mechanical Travel Single Drum Road Roller is a robust heavy-duty compactor built for high-class highways, airports, dams, harbors, railways, and industrial foundations. Powered by a CUMMINS 6BT5.9 diesel engine (97 kW) and weighing 16,000 kg, it delivers exceptional centrifugal force and high static linear load, ensuring uniform compaction on sand, gravel, crushed stone, and slightly cohesive soils. Its mechanical drive with dual-amplitude vibration combines precision, efficiency, and reliability for large-scale construction projects.
 |  |
Main Features
High-Performance Compaction –
Centrifugal force 320/180 kN, vibration amplitude 1.8/0.9 mm, 30 Hz frequency, drum diameter 1570 mm, width 2100 mm for superior surface density.
Versatile Operation –
Mechanical travel drive with speeds from 2–10.5 km/h, 35° steering angle, vertical oscillation 8°, and gradeability 30% for precise maneuvering on varied terrains.
Operator Comfort & Safety –
Spacious cab on rubber damping, hand/foot brakes, and ergonomic layout reduce fatigue and improve control.
Flexible Drum Options –
Padfoot or removable padfoot for different soil types and compaction needs.
Durable & Cost-Effective –
Reinforced chassis, 23.1-26 tires, 220L fuel tank, and advanced hydraulic vibration system for long-term, low-maintenance performance.
SEO & Industry Keywords:
16t mechanical road roller, single drum compactor, heavy-duty construction roller, high-efficiency compactor, CUMMINS diesel engine, industrial paving equipment, large foundation compactor, dual-amplitude vibration, padfoot roller
 |  |
Model | LT216B |
Operating mass | 16000kg |
Static linear load | 373N/cm |
Vibration amplitude | 1.8/0.9mm |
Centrifugal force | 320/180Kn |
Vibration frequency | 30Hz |
Travel speed | 2.0, 4.0, 10.5Km/h |
Steering angle | 35° |
Ground clearance | 432mm |
Electrical voltage | 24V |
Vertical oscillation | 8° |
Tire size | 23.1-26 |
Grade ability | 30% |
Turning radius | 7000mm |
Overall dimension (LxWxH) | 6025x2280x3050mm |
Vibration drum diameter | 1570mm |
Drum width | 2100mm |
Wheel base | 3265mm |
Diesel engine power | 97kw /2200rpm |
Diesel engine model | CUMMINS 6BT5.9 |
Fuel tank capacity | 220L |
Hydraulic tank capacity | 190L |
Ship | 1 unit/40HQ |
Optional:removable padfoot,Top-mounted air conditioner | |
