China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 14t mechanical drive road roller | lt214b in China. With abundant experience, we warmly welcome you to buy cheap 14t mechanical drive road roller | lt214b made in China here from our factory. For price consultation, contact us.
Product Description

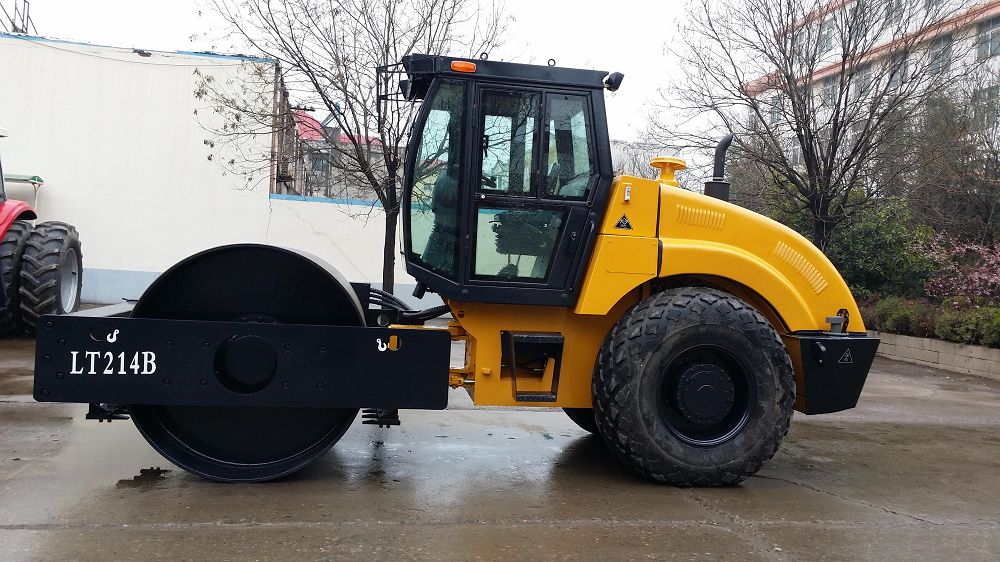

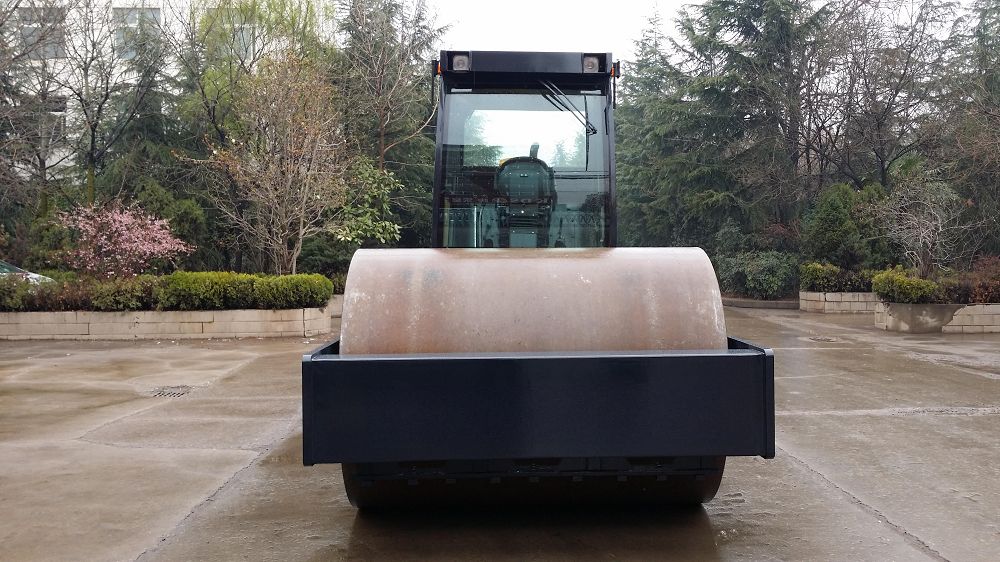

The LT214B 14t Mechanical Travel Single Drum Road Roller is a robust and versatile compactor built for high-class highways, airports, dams, ports, railways, and industrial foundations. Equipped with a CUMMINS 6BT5.9 diesel engine (97 kW) and weighing 14,000 kg, it provides high static linear load and powerful centrifugal force. Its mechanical drive with dual-amplitude hydraulic vibration ensures efficient, uniform compaction across gravel, sand, crushed stone, and slightly cohesive soils.
 |  |
Main Features
High Static Linear Load & Drum Efficiency –
326 N/cm static load, 1570 mm drum diameter, and 2100 mm width for superior surface compaction.
Adjustable Travel Speeds & Steering –
Speeds from 2–10.5 km/h with 35° steering angle for precision maneuvering on tight construction sites.
Vibration Performance –
Dual-amplitude vibration (1.7/0.8 mm) at 30 Hz, vertical oscillation 8° for smooth, uniform compaction.
Operator Comfort & Safety –
Spacious cab, high-quality rubber damping, hand/foot brakes, gradeability 30% for stable and fatigue-free operation.
Flexible Application Options –
Removable padfoot available to adapt to various soil and asphalt conditions, top-mounted air conditioner optional.
SEO & Industry Keywords:
Mechanical travel road roller, 14t single drum roller, high-efficiency compactor, industrial paving equipment, heavy-duty construction roller, CUMMINS diesel engine, hydraulic vibration technology, large foundation compactor
Model | LT214B |
Operating mass | 14000kg |
Static linear load | 326N/cm |
Vibration amplitude | 1.7/0.8mm |
Centrifugal force | 290/180Kn |
Vibration frequency | 30Hz |
Travel speed | 2.0, 4.0, 10.5Km/h |
Steering angle | 35° |
Ground clearance | 432mm |
Electrical voltage | 24V |
Vertical oscillation | 8° |
Tire size | 23.1-26 |
Grade ability | 30% |
Turning radius | 7000mm |
Overall dimension (LxWxH) | 5900x2280x3050mm |
Vibration drum diameter | 1570mm |
Drum width | 2100mm |
Wheel base | 3185mm |
Diesel engine power | 97kw /2200rpm |
Diesel engine model | CUMMINS 6BT5.9 |
Fuel tank capacity | 220L |
Hydraulic tank capacity | 190L |
Ship | 1 unit/40HQ |
Optional:removable padfoot,Top-mounted air conditioner | |
