China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 12t all wheel drive road roller | ltd212h in China. With abundant experience, we warmly welcome you to buy cheap 12t all wheel drive road roller | ltd212h made in China here from our factory. For price consultation, contact us.
Product Description

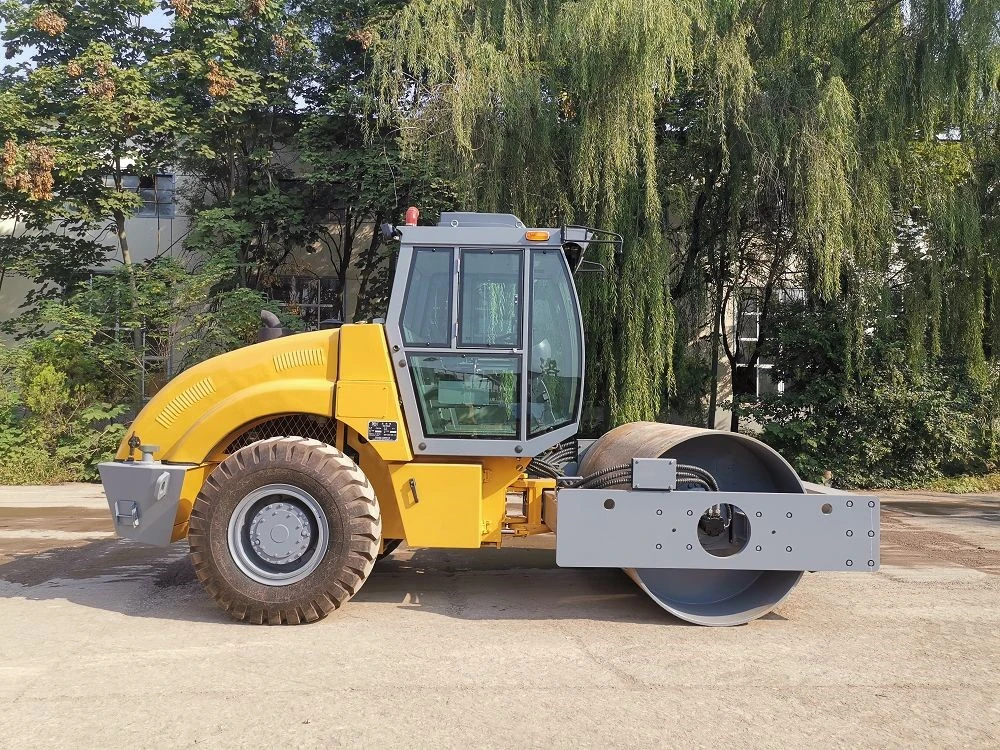

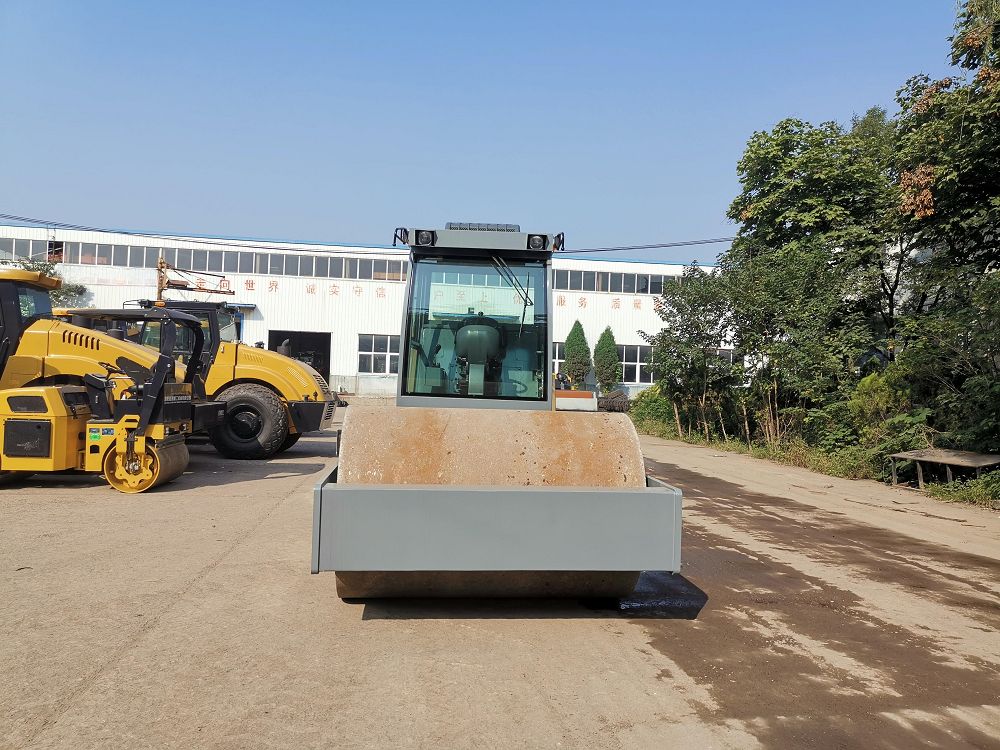

The LTD212H 12t Hydraulic Drive Single Drum Road Roller is a high-efficiency heavy-duty compactor with a CUMMINS 6BT5.9 turbocharged engine delivering 110 kW. With a 12,000 kg operating weight and strong centrifugal force, it ensures uniform compaction on asphalt, gravel, sand, and mixed soils. Ideal for highways, industrial sites, embankments, and ports, it combines power, precision, and reliability for large-scale construction.
 |  |
Main Features
Powerful Engine & Hydraulic System –
CUMMINS diesel, full hydraulic double-drive, and articulated steering for smooth, safe operation.
Versatile Compaction –
Padfoot or removable padfoot options for different surfaces and soil types.
Durable & Ergonomic Design –
Reinforced frame, streamlined hood, circular windshield, and DANFOSS hydraulic & vibration system for long-term performance and operator comfort.
High Performance Specs –
Centrifugal force 260/160 kN, vibration frequency 28/35 Hz, travel speed up to 12 km/h, and gradeability 35%.
 |  |
Model | LTD212H |
Operating mass | 12000kg |
Static linear load | 326N/cm |
Vibration amplitude | 1.7/0.8mm |
Centrifugal force | 260/160Kn |
Vibration frequency | 28/35Hz |
Travel speed | 0-12Km/h |
Ground clearance | 360mm |
Electrical voltage | 24V |
Tire size | 17.5-25 |
Grade ability | 35% |
Turning radius | 7000mm |
Overall dimension (LxWxH) | 5650x2280x3000mm |
Drum rim thickness | 24mm |
Drum width | 2100mm |
Wheel base | 3060mm |
Diesel engine power | 110/2300rpm |
Diesel engine model | CUMMINS 6BT5.9 |
Fuel tank capacity | 220L |
Hydraulic tank capacity | 190L |
Driving system | DANFOSS |
Vibration system | DANFOSS |
Ship | 1 unit/40HQ 3units/2x40HQ |
Optional:removable padfoot,Top-mounted air conditioner | |
