Product Description

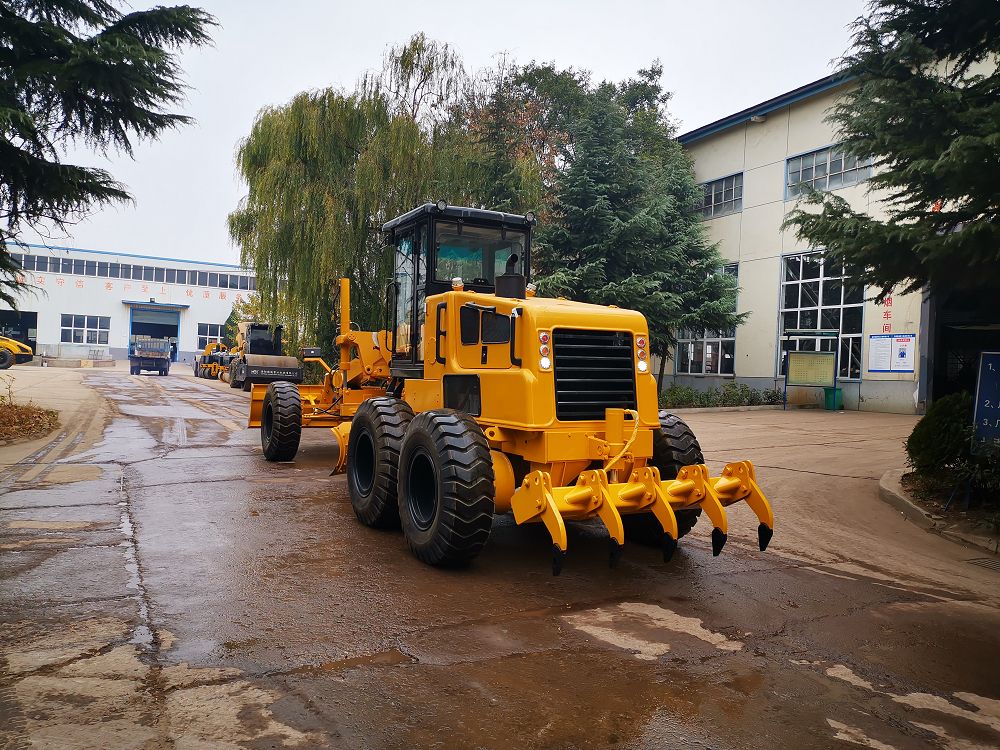

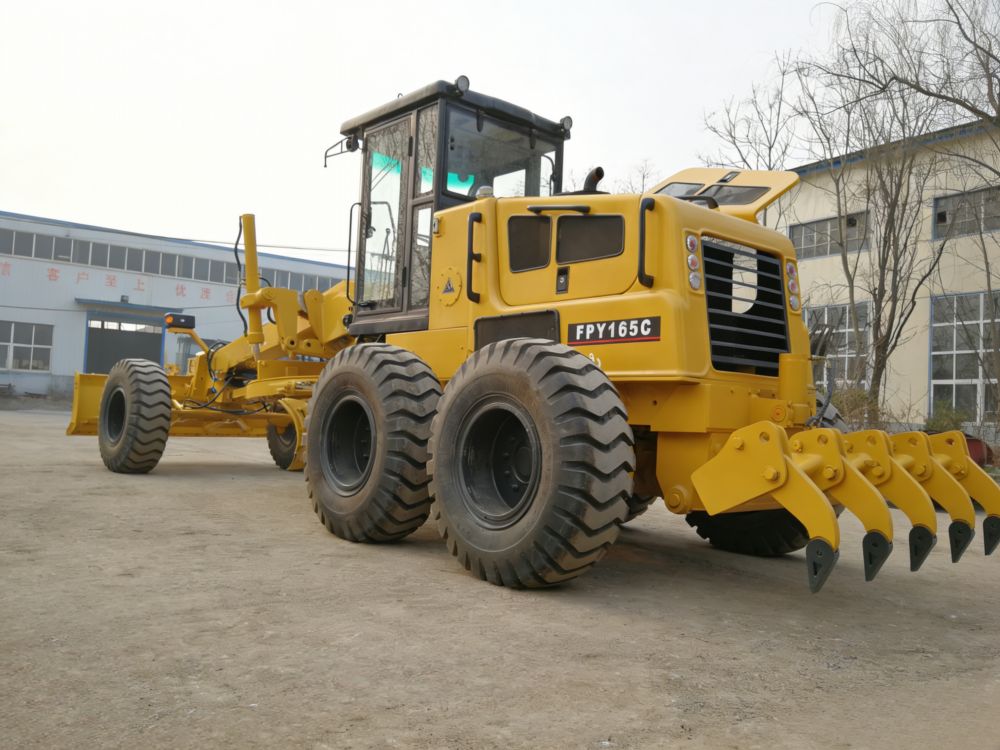

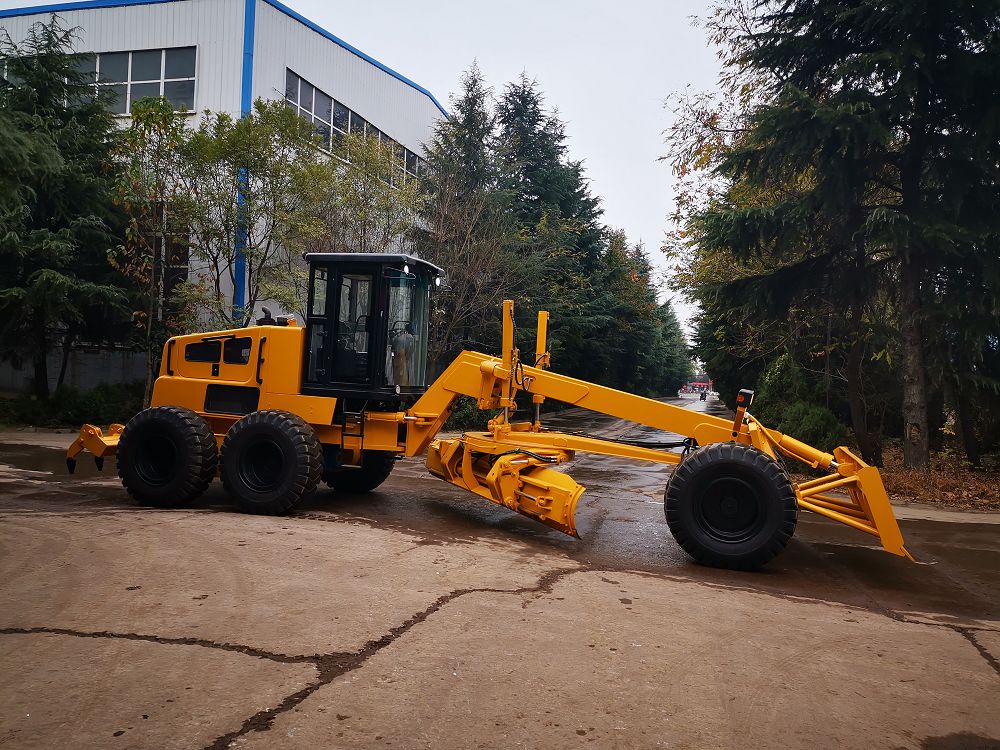

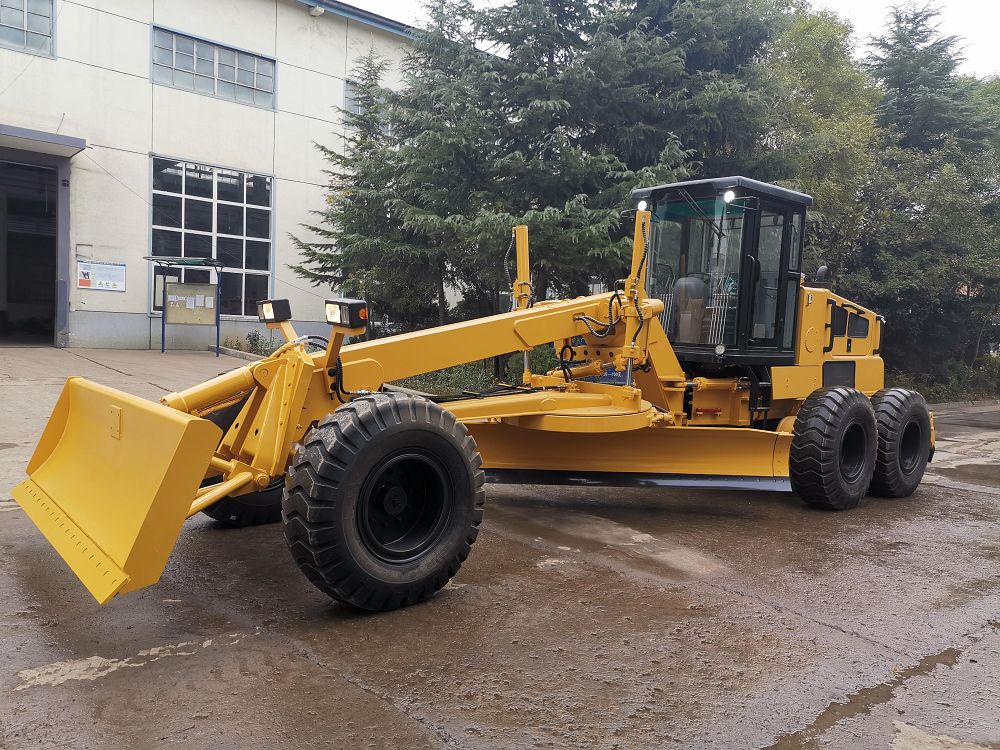

The PY165C Self-Propelled Articulated Motor Grader is a high-efficiency, multi-functional construction machine for land leveling, grading, ditching, ripping, and snow removal. Ideal for highways, railways, airports, ports, dams, and industrial sites, it delivers precise soil control and reliable performance for modern infrastructure projects.
 |  |
Main Features
Powerful Engine & Transmission:
Turbocharged CUMMINS diesel with ZF torque converter and power-shift gearbox (6F/3R) for smooth, heavy-load operation.
Advanced Steering & Drive:
Center-articulated joint, tilting front wheels, oscillated front axle, and anti-slip differential for stable and precise maneuvering.
Efficient Blade System:
Pendulum-arm blade, dual tip adjustment, HUSCO hydraulic valves, and patented pin device for flexible, accurate grading.
Operator Comfort & Safety:
Spacious cab, electro-hydraulic monitoring, OPTIMA batteries, caliper disc brakes, and mechanical parking brake.
Versatile Attachments:
Optional front bulldozing plate and rear ripper for varied project needs.
SEO Keywords:
PY165C motor grader, articulated grader, self-propelled grader, highway construction machinery, CUMMINS diesel grader, hydraulic blade control, multi-functional grader
 |  |
Model | PY165C |
Operating mass | 15000kg |
Max. forward speed | 40.4 Km/h |
Max. backward speed | 25.7Km/h |
Front axle load | 4150kg |
Rear axle load | 10850kg |
Speed gear number | F6/R3 |
Minimum Turning radius | 7500mm |
Hydraulic system pressure | 18Mpa |
Blade length × height | 3660×610 mm |
Blade tilt angle | ±90° |
Blade slewing angle | 360° |
Front wheel tilt angle | ±17° |
Front wheel track | 2150 mm |
Rear wheel track | 2255mm |
Overall dimension (LxWxH) | 8305×2695× 3420mm |
Wheel base | 5347mm |
Diesel engine power | 125kw/2300rpm |
Diesel engine model | CUMMINS 6BTA5.9 |
Fuel tank capacity | 228L |
Hydraulic tank capacity | 170L |
Tire seize | 17.5-25 |
Multi tandem Valve | Husco |
Rear Ripper | 5 teeth |
Optional: Front bulldozer blade +Rear ripper | |
