China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 16.9t motor grader | py220c in China. With abundant experience, we warmly welcome you to buy cheap 16.9t motor grader | py220c made in China here from our factory. For price consultation, contact us.
Description

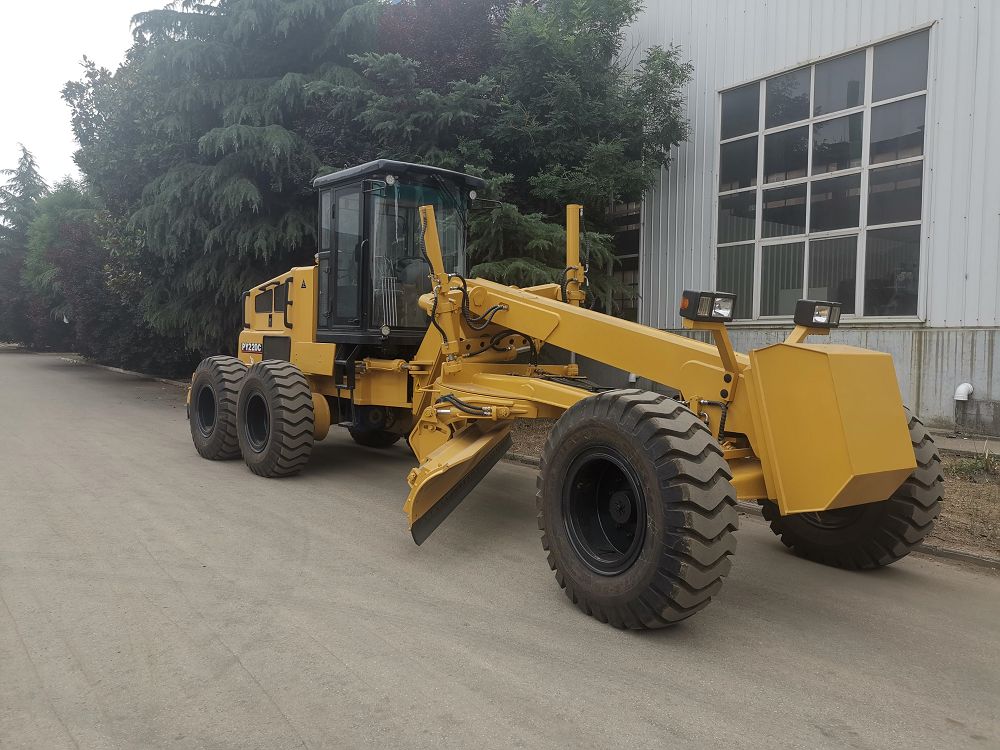

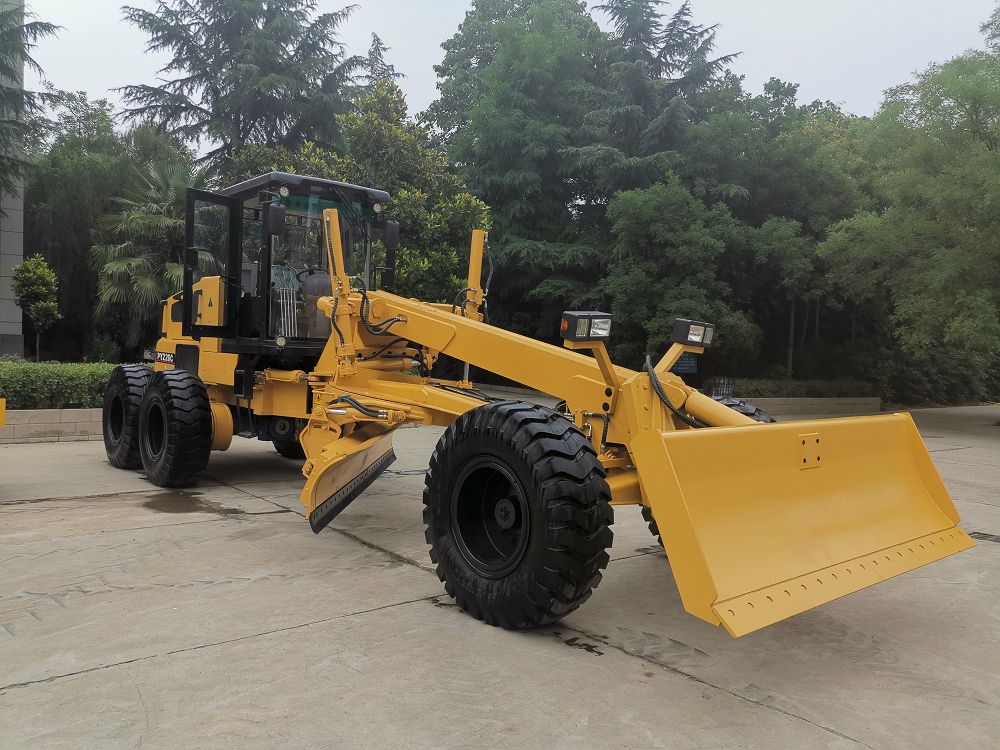

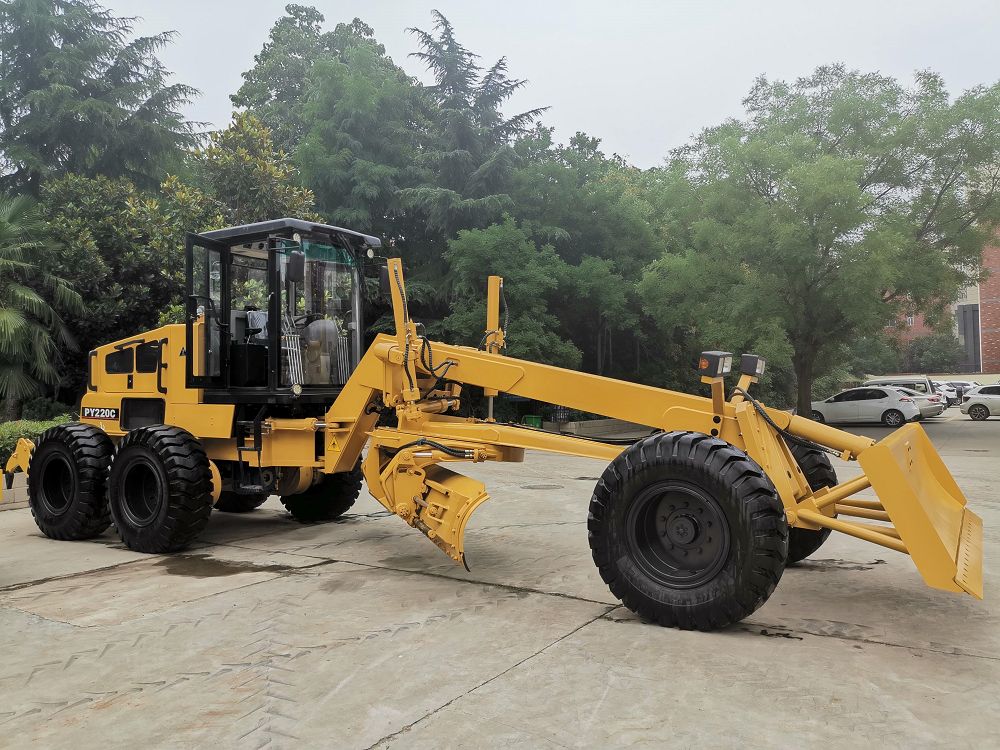

The PY220C motor grader is a high-efficiency, multi-functional construction machine for land leveling, grading, ditching, ripping, scarifying, bulldozing, and snow removal. It is ideal for highways, railways, airports, ports, dams, industrial sites and farmland, delivering precision, power, and versatility for large-scale foundation projects.
 |  |
Key Features
Powerful Engine:
Turbocharged CUMMINS diesel, water-cooled, ensures reliable and high-performance operation.
Smooth Transmission:
Integrated ZF torque converter & power-shift gearbox (6F/3R) for flexible working and transport.
Stable Steering & Drive:
Center-articulated joint, tilting front wheels, oscillated front axle, and anti-slip differential for precise maneuvering.
Advanced Blade Control:
Pendulum-arm blade, dual tip adjustment, HUSCO hydraulic system, and patented hydraulic pin device for accurate grading on varied soils.
Operator Comfort & Safety:
Spacious cab, electro-hydraulic monitoring, OPTIMA maintenance-free batteries, caliper disc brakes, and parking brake.
Optional Attachments:
Front bulldozing plate and rear ripper for enhanced versatility.
SEO Keywords:
PY220C motor grader, articulated grader, self-propelled grader, highway construction machinery, CUMMINS diesel grader, hydraulic blade control, multi-functional grader
 |  |
Model | PY220C |
Operating mass | 16900kg |
Max. forward speed | 36.8 Km/h |
Max. backward speed | 24.8Km/h |
Front axle load | 5820kg |
Rear axle load | 11080kg |
Speed gear number | F6/R3 |
Minimum Turning radius | 7800mm |
Hydraulic system pressure | 18Mpa |
Blade length × height | 3965×610 mm |
Blade tilt angle | ±90° |
Blade slewing angle | 360° |
Front wheel tilt angle | ±17° |
Front wheel track | 2150 mm |
Rear wheel track | 2255mm |
Overall dimension (LxWxH) | 8605×2695× 3420mm(No rear ripper and front bulldozer plate) |
Wheel base | 5647mm |
Diesel engine power | 160kw/2200rpm |
Diesel engine model | CUMMINS 6CTA8.3 |
Fuel tank capacity | 228L |
Hydraulic tank capacity | 170L |
Tire seize | 17.5-25 |
Multi tandem Valve | Husco |

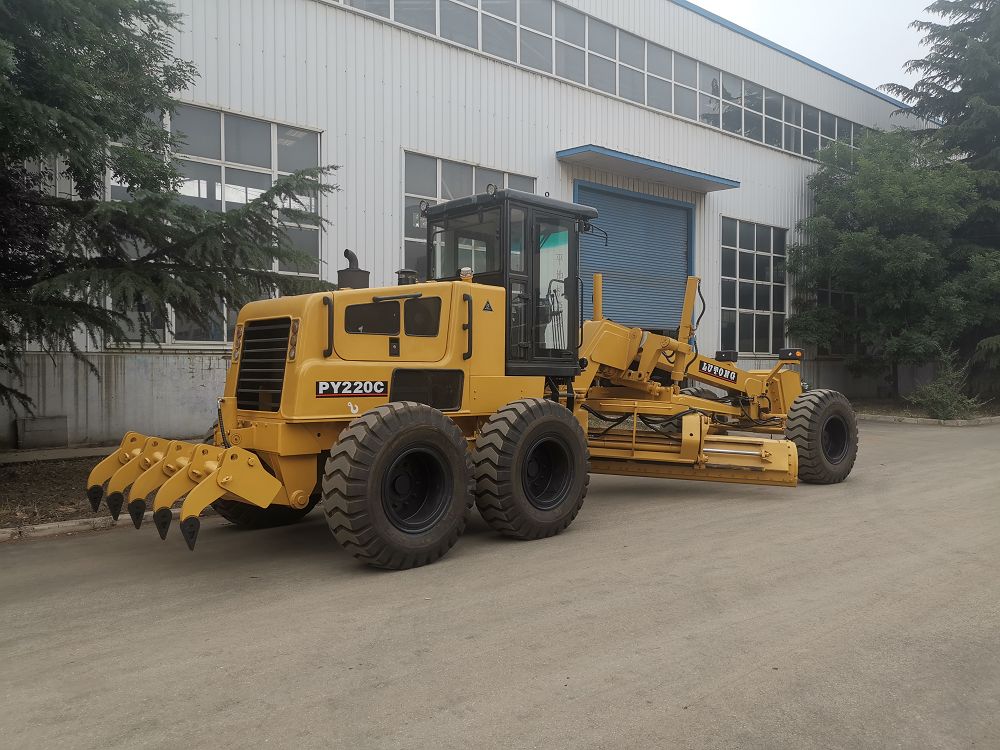

Rear Ripper | 5 teeth |
Ship | 1unit/40HQ |
Optional: Front bulldozer blade +Rear ripper | |
