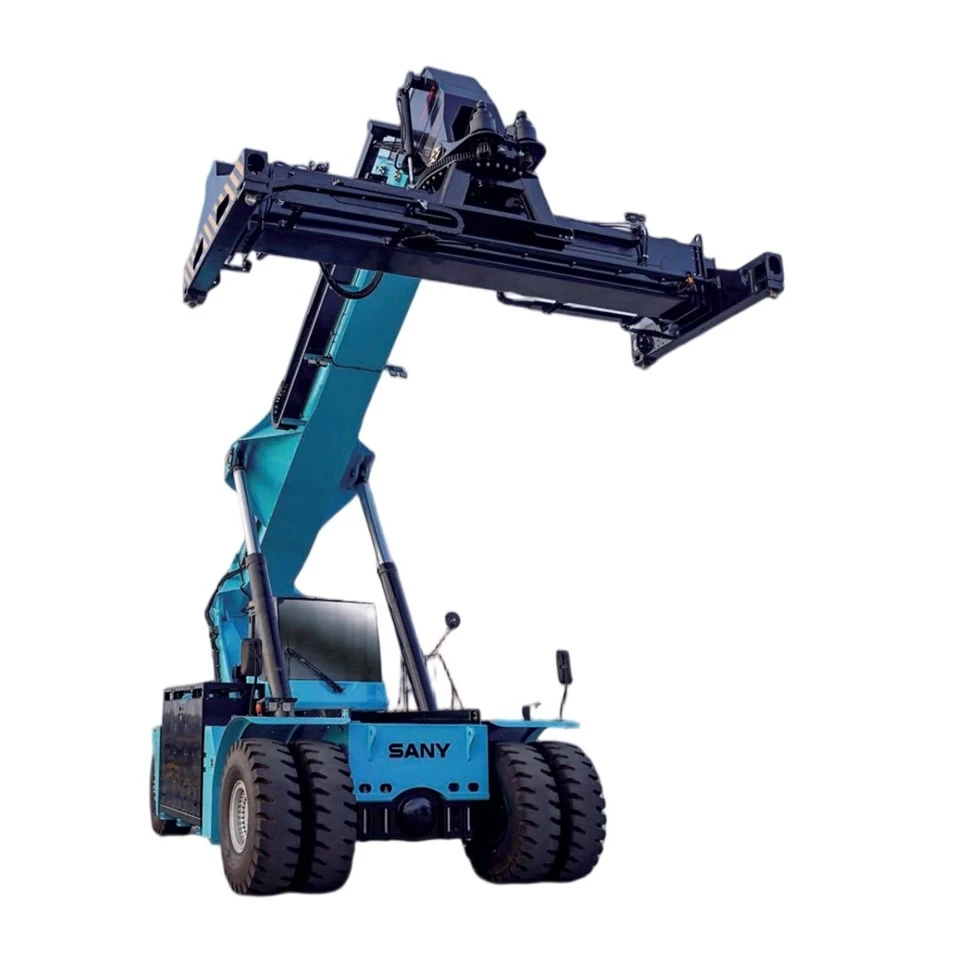

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 45t electric reach stacker | c45e3a (battery-swap) in China. With abundant experience, we warmly welcome you to buy cheap 45t electric reach stacker | c45e3a (battery-swap) made in China here from our factory. For price consultation, contact us.
Flexible Energy Options
■ 60min fast charge or 10min battery swap
Smart Cloud Management
■ Real-time monitoring
■ Quick fault diagnostics
■ Automated reports
Easy Maintenance
■ External battery for easier service
■ No engine or transmission, saving up to $8,000/ year
Product Parameters
 |  |  |  |
Technical Parameter | ||
ITEM | UNIT | SRSC45E3A(Electric) |
Max. Lifting Speed (0/full load) | mm/s | 420/250 |
Max. Lowering Speed (0/full load) | mm/s | 360/300 |
Max. Traveling Speed (0/full load) | km/h | 20/14 |
Gradeability (0/full load) | % | 21/14 |
Hydraulic System Working Pressure | bar | 350 |
Overall Weight | t | 72 |
Rated Load | t | 45 |
Stack Layer | - | 5 |
Max. Lift Height Standard | mm | 15100 |
Max. Boom Elevation | deg | 0-60 |
Overall Length (L) | mm | 11320 |
Wheel Base (L1) | mm | 6000 |
Overall Height(H) (retract/extend) | mm | 4850 |
Min. Ground Clearance (H1) | mm | 330 |
Overall Width (W) | mm | 6053-12185 |
Front Gauge (T1) | mm | 3033 |
Rear Gauge (T2) | mm | 2790 |
Min. Turning Radius (R) | mm | 8000 |
Aisle Width For 20'container (A1) | mm | 11300 |
Aisle Width For 40'container (A2) | mm | 13600 |
Configuration Parameter | ||||
CONFIGURATION | UNIT | SRSC45E3A | ||
Energy Type | - | Electric | ||
Swapping Time | min | 10 | ||
Endurance Time | h | 6 | ||
Quantity Of Electricity | kWh | 282 | ||
Traction Battery | Battery Type | - | LiP | |
Standard Voltage | V | 618 | ||
Electric Motor | Type | - | PMSM | |
Output Power (Rated/peak) | kW | 171(Rated) 310(peak) | ||
Output Rotate Speed (Rated/peak) | RPM | 800(Rated) 2800(peak) | ||
Cooling Type | - | Water Cooling | ||
Transmission Type | - | Sany Dwf-50/101.287 | ||
