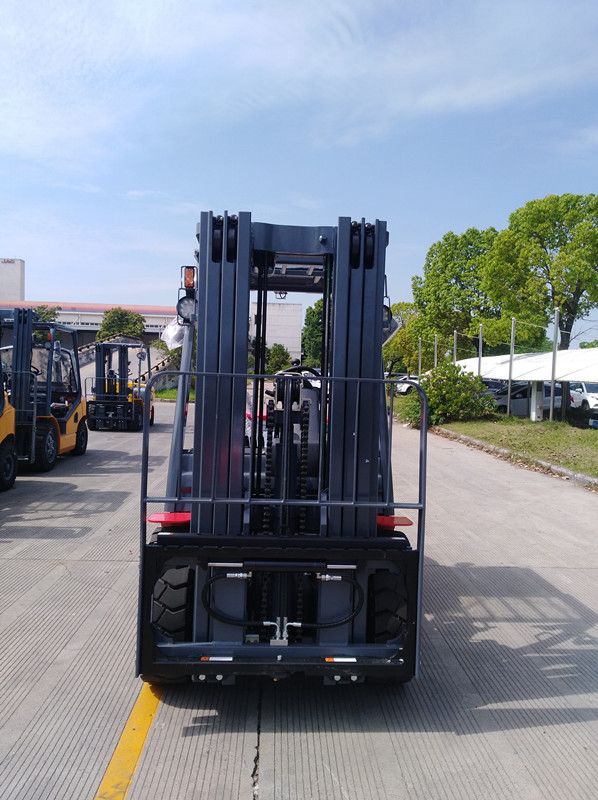

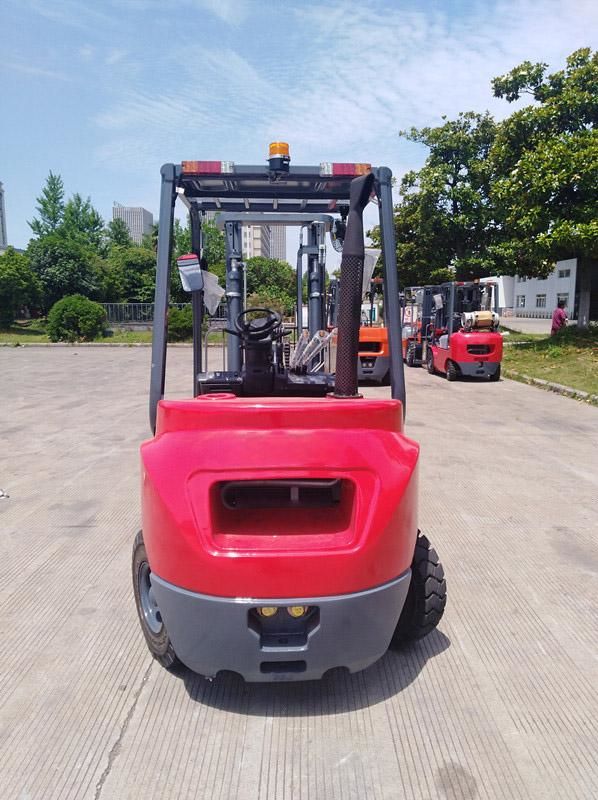

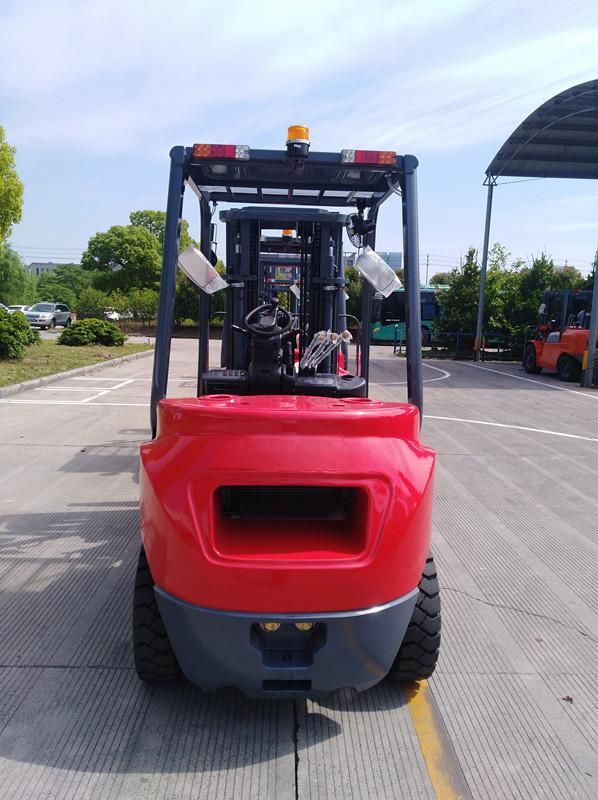

3.5 Ton Diesel Forklift - FD35
The engine uses a high independent channel intake to prevent dust and increase air intake, ensuring more sufficient combustion.
Intercooler, water radiator and oil radiator are independently arranged, greatly improving reliability of the engine and gearbox.
Equipped with high-performance vacuum assist or full hydraulic braking system, enhancing service and emergency braking stability.
High-pressure common rail engine delivers strong power, better cold start and low failure rate, reducing overall energy consumption.
Load-sensitive hydraulic system allows full-load lifting at idle speed, effectively lowering fuel consumption.
Widely used in factories, warehouses, logistics and ports for stable, efficient and low-cost material handling.
 |  |  |
 |
Parameters
Model | FD35 | |||
Power Type | Diesel | |||
Rated Capacity | kg | 3500 | ||
Load Centre | mm | 500 | ||
Lift Height | mm | 3000 | ||
Fork Size(L×W×T) | mm | 1070×125×50 | ||
Mast Tilt Angle(F/R) | Deg | 6°/12° | ||
Front Overhang (Wheel center to fork face) | mm | 485 | ||
Ground Clearance(Bottom of mast) | mm | 140 | ||
Turning Radius (outside) | mm | 2570 | ||
Max.Gradeability (No load/Full load) | % | 20 | ||
Wheelbase | mm | 1800 | ||
Service weight | kg | 4700 | ||
Overall Dimension | Length to face of fork(Without fork) | mm | 2835 | |
Overall Width | mm | 1230 | ||
Mast Lowered Height | mm | 2150 | ||
Mast Extended Height(With backrest) | mm | 4175 | ||
Overhead Guard Height | mm | 2110 | ||
Speed | Travel (Full load) | km/h | 20 | |
Lifting (Full load) | mm/s | 440 | ||
Tire | Front | mm | 28×9-15-12PR | |
Rear | mm | 6.50-10-10PR | ||
Battery | Voltage/Capacity | V/Ah | 12/80 | |
| Model | 4JG2PE-01 | A495BPG-517 | |
Manufacture | ISUZU | XINCHAI | ||
Rated output/r.p.m. | kw | 46/2450 | 42/2650 | |
Rated torque/r.p.m. | N·m | 184/1600-1800 | 174/1800-2000 | |
No.of Cylinder | 4 | 4 | ||
No.of Cylinder | mm | 95.4x107 | 95x105 | |
Displacement | cc | 3059 | 2980 | |
Fuel Tank Capacity | L | 70 | 70 | |
Transmission | Type | Hydraulic | Hydraulic | |
Stage(FWD/RVS) | 1/1 | 1/1 | ||
