Product Description

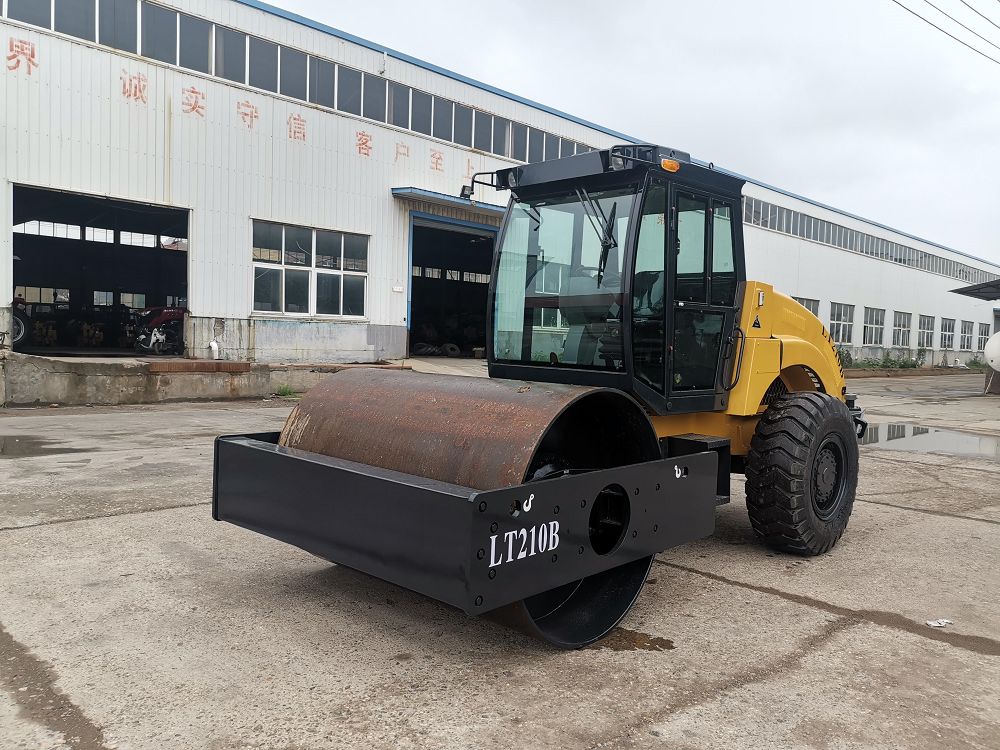

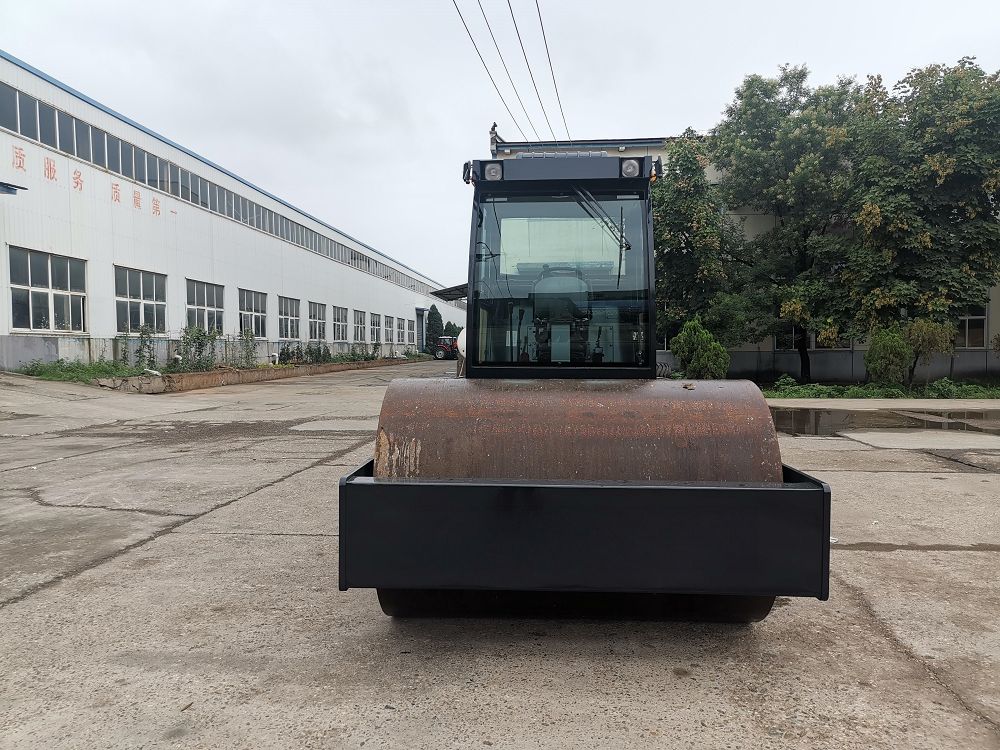

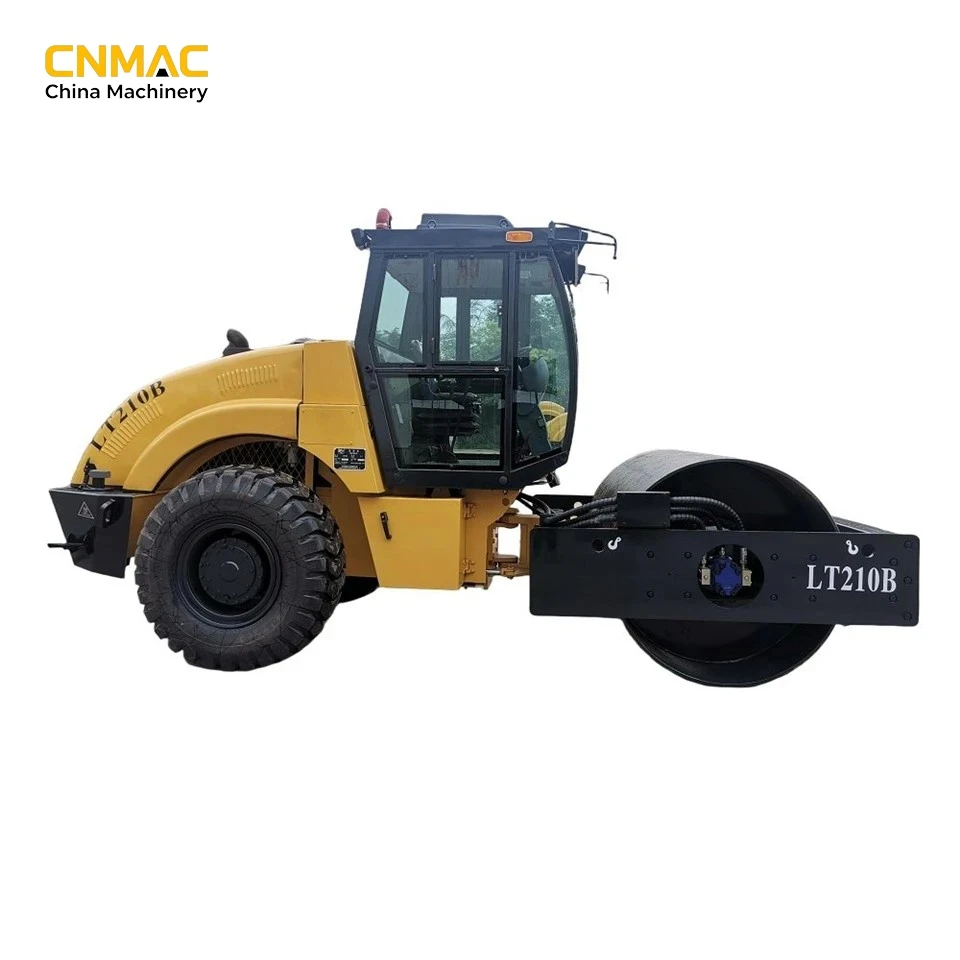

The LT210B 10t Mechanical Travel Single Drum Road Roller is a heavy-duty, high-efficiency compactor designed for large foundation construction such as highways, airports, dams, harbors, railways, and industrial sites. Powered by a reliable CUMMINS 6BT5.9 diesel engine (97 kW), it delivers strong centrifugal force and high static linear load, ensuring uniform compaction on sandy soil, gravel, crushed stone, and slightly cohesive soils. Its mechanical drive with double amplitude vibration offers robust performance, low maintenance, and cost-effective operation.
 |  |
Main Features
Mechanical Travel Drive & Dual-Amplitude Vibration –
High compaction efficiency with precise hydraulic steering.
Reliable Power System –
CUMMINS diesel engine, easy to operate, low-cost maintenance, suitable for demanding conditions.
Safe & Comfortable Operation –
Hand and foot brakes, vertical oscillation 8°, spacious cab with rubber damping.
Versatile Drum Options –
Padfoot or removable padfoot available for different soil and aggregate applications.
High-Performance Specs –
Vibration frequency 30 Hz, centrifugal force 260/160 kN, travel speed 2–10.5 km/h, turning radius 7000 mm, gradeability 30%.
Optimized Design –
Robust chassis, 17.5-25 tires, 220L fuel tank, 190L hydraulic tank, built for long-term durability and efficient large-scale construction.
SEO & Industry Keywords:
Heavy-duty road roller, mechanical travel single drum, high-efficiency compactor, large foundation construction, padfoot roller, CUMMINS engine, industrial paving, hydraulic vibration technology, low-maintenance compactor
 |  |
Model | LT210B |
Operating mass | 10300kg |
Static linear load | 280N/cm |
Vibration amplitude | 1.6/0.8mm |
Centrifugal force | 260/160Kn |
Vibration frequency | 30Hz |
Travel speed | 2.0, 4.0, 10.5Km/h |
Steering angle | 35° |
Ground clearance | 360mm |
Electrical voltage | 24V |
Vertical oscillation | 8° |
Tire size | 17.5-25 |
Grade ability | 30% |
Turning radius | 7000mm |
Overall dimension (LxWxH) | 5650x2280x3000mm |
Vibration drum diameter | 1400mm |
Drum width | 2100mm |
Wheel base | 3060mm |
Diesel engine power | 97kw /2200rpm |
Diesel engine model | CUMMINS 6BT5.9 |
Fuel tank capacity | 220L |
Hydraulic tank capacity | 190L |
Ship | 1 unit/40HQ 3units/2x40HQ |
Optional:removable padfoot,Top-mounted air conditioner | |
