China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 12t mechanical drive road roller | lt212b in China. With abundant experience, we warmly welcome you to buy cheap 12t mechanical drive road roller | lt212b made in China here from our factory. For price consultation, contact us.
Product Description

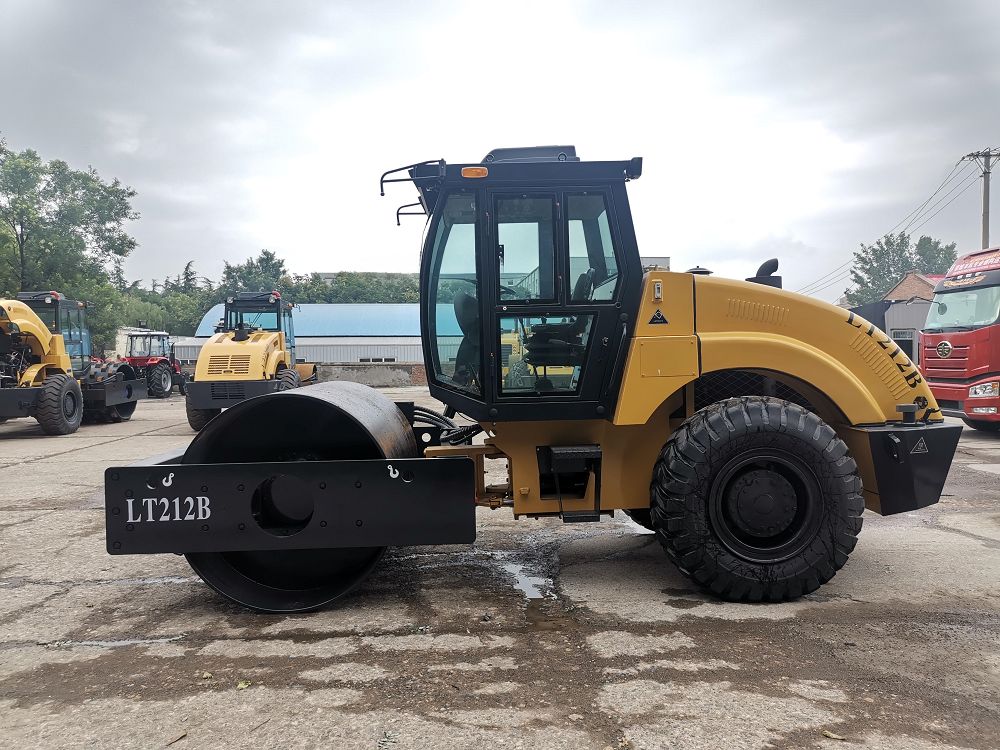

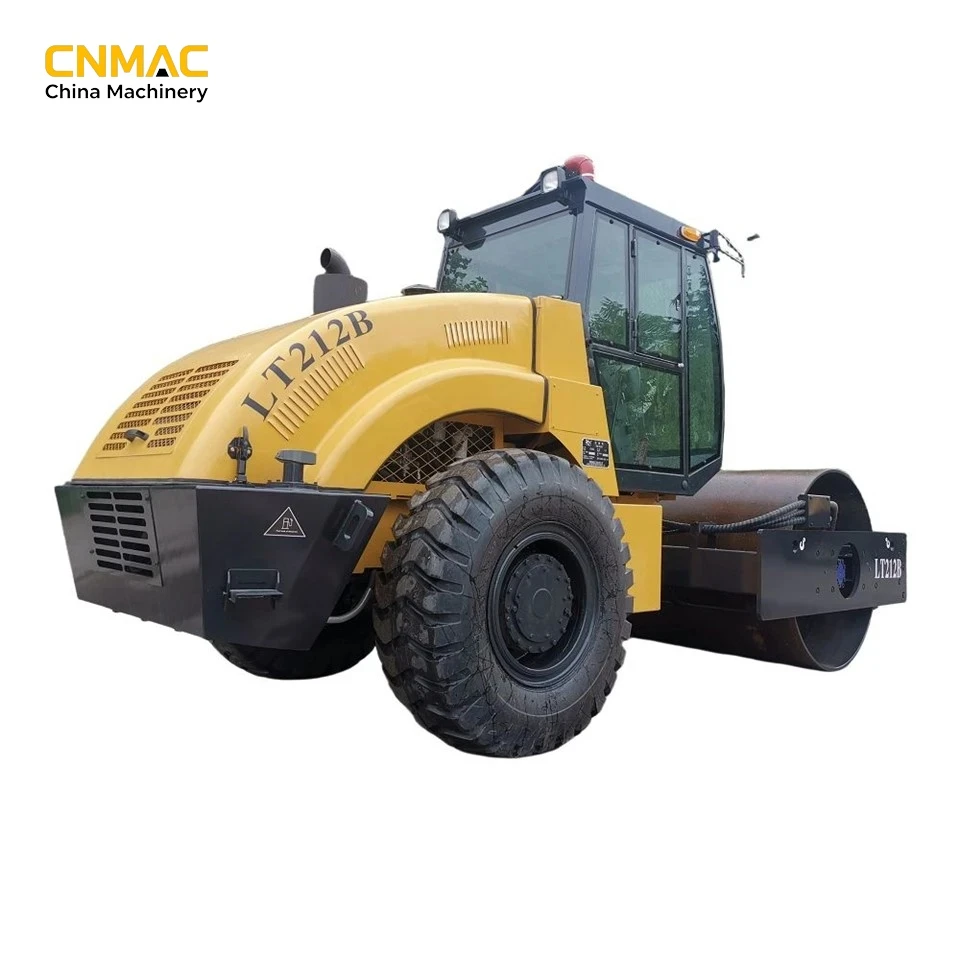

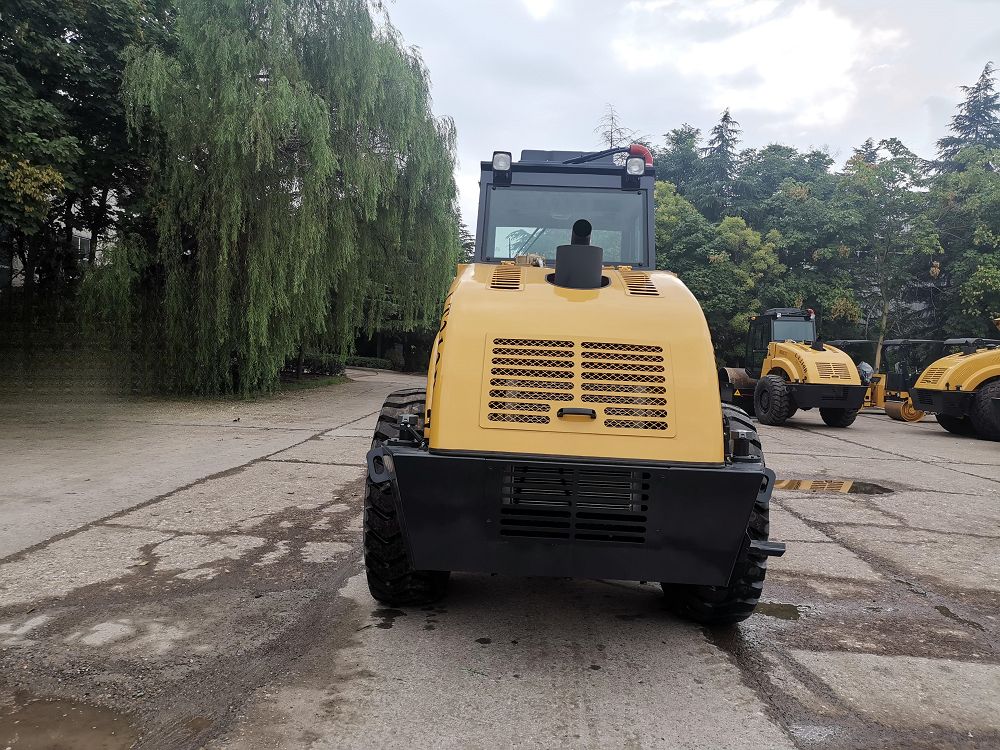

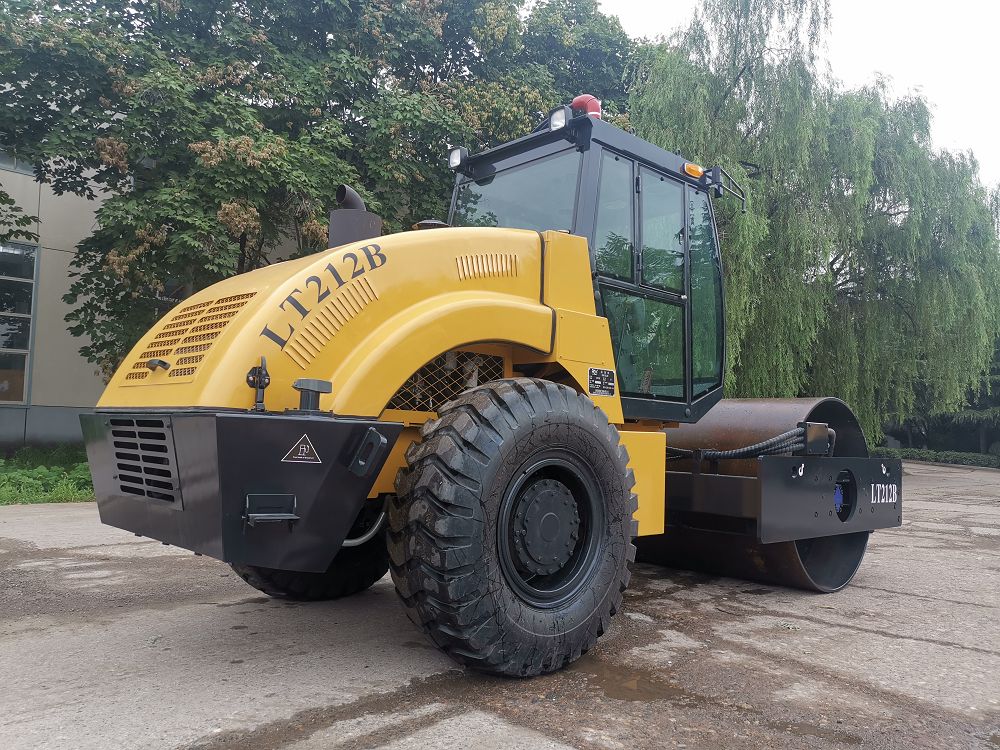

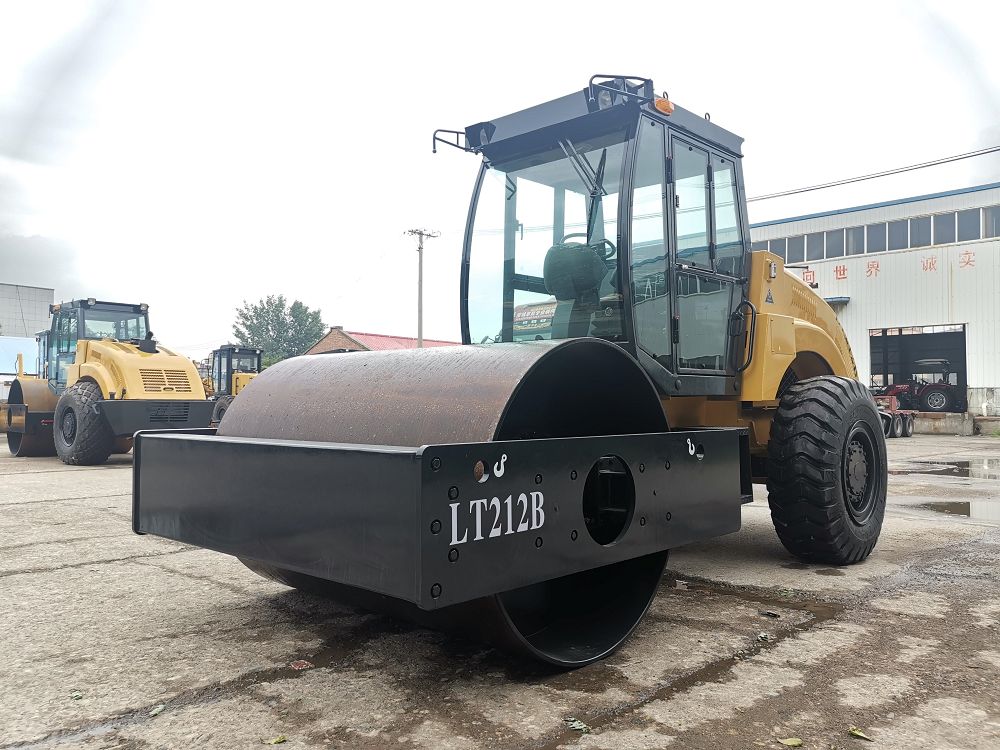

The LT212B 12t Mechanical Travel Single Drum Road Roller is a heavy-duty, high-efficiency compactor with a CUMMINS 6BT5.9 diesel engine (97 kW). Weighing 12,000 kg, it delivers strong centrifugal force and uniform compaction on gravel, sand, crushed stone, and slightly cohesive soils, making it ideal for highways, airports, dams, ports, and industrial construction.
 |  |
Main Features
Mechanical Travel Drive & Dual-Amplitude Vibration –
Efficient and precise compaction with hydraulic steering.
Reliable Power & Low Maintenance –
CUMMINS diesel engine ensures long-term, cost-effective operation.
Safe & Comfortable Operation –
Hand/foot brakes, vertical oscillation 8°, spacious cab with rubber damping.
Versatile Drum Options –
Padfoot or removable padfoot for various soil types.
 |  |
Model | LT212B |
Operating mass | 12000kg |
Static linear load | 280N/cm |
Vibration amplitude | 1.6/0.8mm |
Centrifugal force | 260/160Kn |
Vibration frequency | 30Hz |
Travel speed | 2.0, 4.0, 10.5Km/h |
Steering angle | 35° |
Ground clearance | 360mm |
Electrical voltage | 24V |
Vertical oscillation | 8° |
Tire size | 17.5-25 |
Grade ability | 30% |
Turning radius | 7000mm |
Overall dimension (LxWxH) | 5650x2280x3000mm |
Vibration drum diameter | 1400mm |
Drum width | 2100mm |
Wheel base | 3060mm |
Diesel engine power | 97kw /2200rpm |
Diesel engine model | CUMMINS 6BT5.9 |
Fuel tank capacity | 220L |
Hydraulic tank capacity | 190L |
Ship | 1 unit/40HQ 3units/2x40HQ |
Optional:removable padfoot,Top-mounted air conditioner | |
