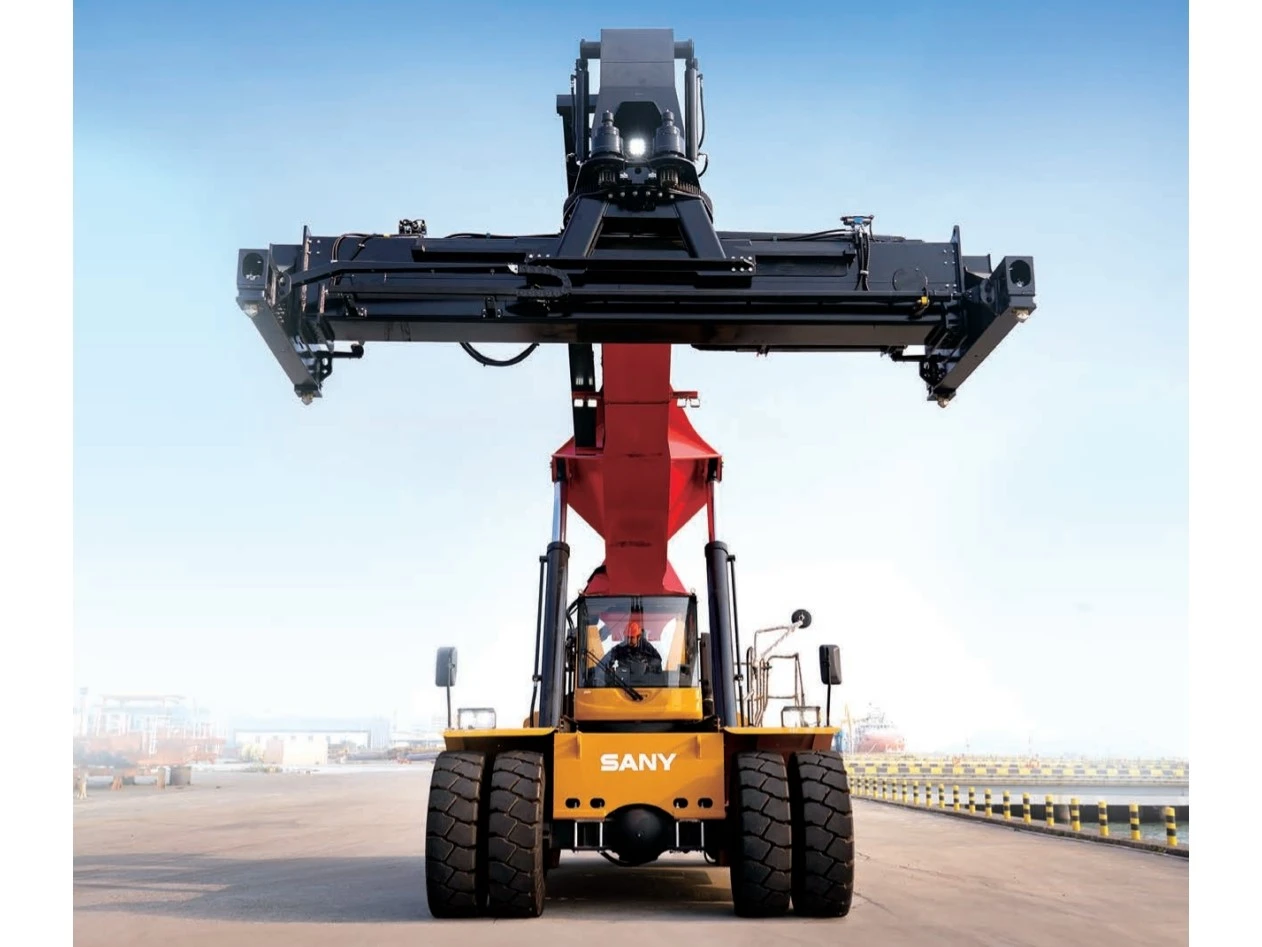

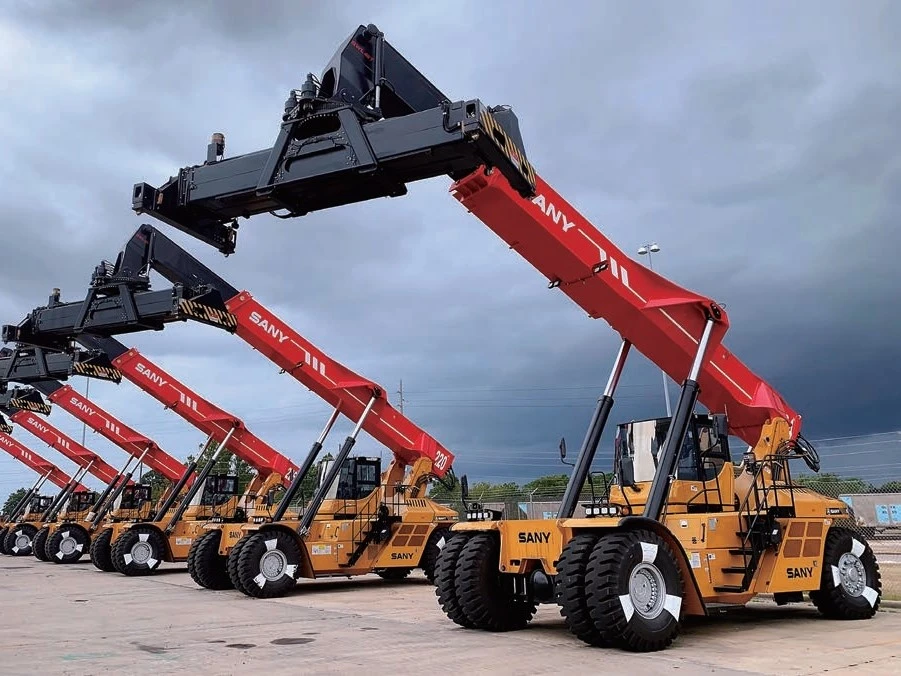

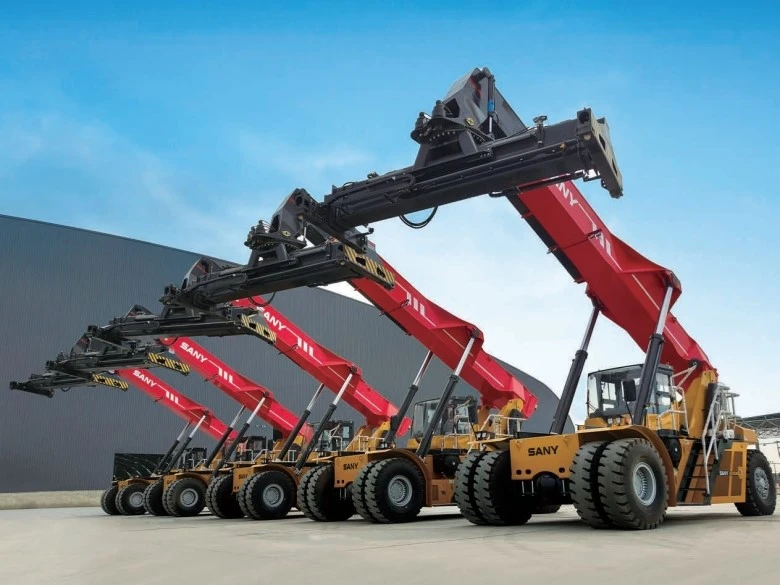

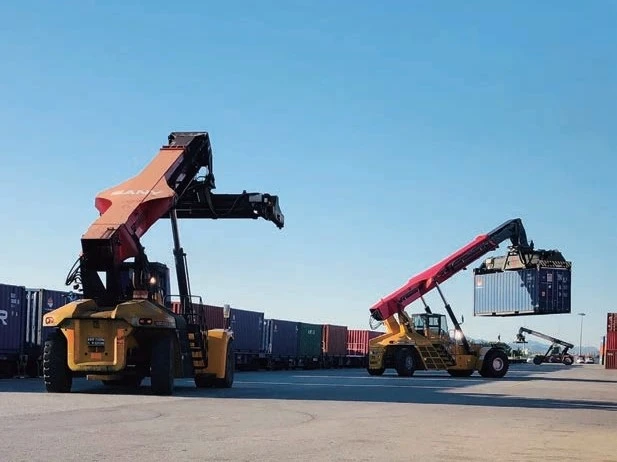

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 45t reach stacker | c45g5 in China. With abundant experience, we warmly welcome you to buy cheap 45t reach stacker | c45g5 made in China here from our factory. For price consultation, contact us.
More Fuel Efficient
■ Electronic common-rail system cuts fuel by 3%
Easy Handling
■ Proportional control for smooth operation
Certified Safety
■CE approved to EU standards
Better Comfort
■ Air suspension seat reduces vibration
Product Parameters
 |  |  |  |
Technical Parameter | ||
ITEM | UNIT | SRSC4505 |
Max. Lifting Speed (0/full load) | mm/s | 460/ 260 |
Max. Lowering Speed (0/full load) | mm/s | 600/ 400 |
Max. Traveling Speed (0/full load) | km/h | 25 / 21 |
Gradeability (0/full load) | % | 46 / 28 |
Hydraulic System Working Pressure | bar | 260 |
Overall Weight | t | 72.5 |
Rated Load | t | 4.5 |
Stack Layer | - | 5 |
Max. Lift Height Standard | mm | 15100 |
Max. Boom Elevation | deg | 0-60 |
Overall Length (L) | mm | 11520 |
Wheel Base (L1) | mm | 6000 |
Overall Height(H) (retract/extend) | mm | 4770 |
Min. Ground Clearance (H1) | mm | 350 |
Overall Width (W) | mm | 6055-12185 |
Countercweight Sideways (E) | mm | - |
Front Gauge (T1) | mm | 3035 |
Rear Gauge (T2) | mm | 2790 |
Min. Turning Radius (R) | mm | 8000 |
Aisle Width For 20'container (A1) | mm | 11500 |
Aisle Width For 40'container (A2) | mm | 13600 |
Configuration Parameter | |||
CONFIGURATION | UNIT | SRSC4505 | |
Engine | Type | - | VOILVO TAD181VE |
Rated Capacity | kW/rpm | 265/2100 | |
Max Torque | Nm/rpm | 1795-1400 | |
Emission Standard | - | Stage V | |
Transmission Type | - | 15.5TE30 | |
Drive Axle Type | - | Kessler D102 | |
Main Valve | - | Parker | |
Main Pump | - | Parker | |
Spreader | Model | - | SDU450H-R series |
Lateral Move | mm | ±800 | |
Rotate Angle | deg | 105/+195 | |
Tilt Angle | deg | ±5 | |
Self-Weight | t | 71 | |
Suitable Fo | - | ISO20740/45 container | |
Tires | - | 18.00-25 | |
