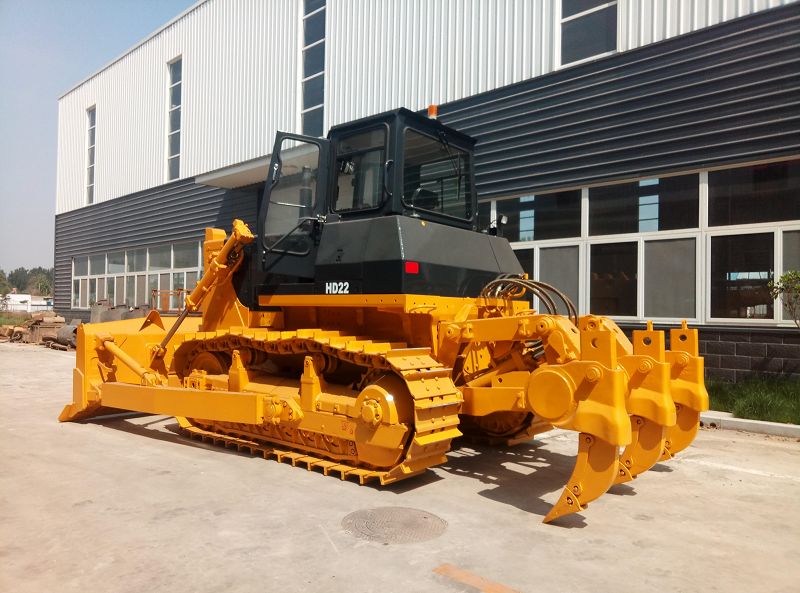

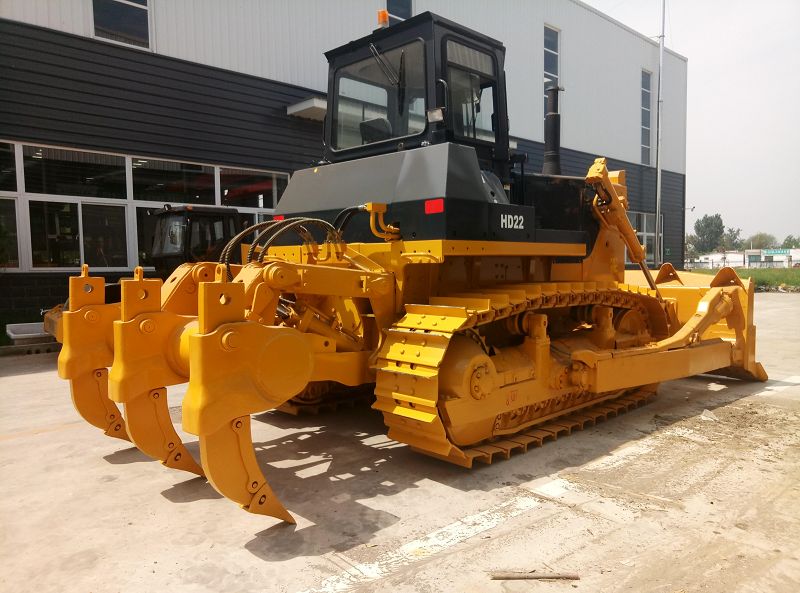

China Machinery International Trading Co., Ltd. is one of the leading manufacturers and suppliers of 220hp bulldozer | hd22 in China. With abundant experience, we warmly welcome you to buy cheap 220hp bulldozer | hd22 made in China here from our factory. For price consultation, contact us.
Key Features
Powerful Cummins Engine
NT855-C280S10 engine delivers strong torque, reliability, and fuel efficiency for medium-duty tasks.
Intelligent Monitoring System
Automatic fault diagnosis and integrated instrument panel with AC enhance operator convenience and machine reliability.
Durable Main Frame
Full box-type welded steel frame resists bending, twisting, and impact, ensuring a long service life.
Ergonomic Control & Flexible Operation
Adjustable seat and armrest with servo-assisted control allow precise, low-effort operation.
 |  |
Main Applications
Earthmoving and bulk material handling
Mining and quarrying
Road and infrastructure construction
Land leveling
Main specification
Model | HD22 |
Type | 220HP Standard Hydraulic Crawler Type |
| Engine model | CUMMINS NT855-C280S10 |
Displacement(L) | 14.01 |
Rated power(kw/rpm) | 175/1800 |
Max.torque(N.m/rpm) | 1030/1250 |
Operating weight | 23.5 Ton |
Dimension(no ripper)(mm) | 5460×3725×3395 |
Grounding length(mm) | 2730 |
Ground pressure(MPa) | 0.077 |
Track gauge(mm) | 2000 |
Dozing capacity(m³) | 6.4 |
Blade width(mm) | 3725 |
Blade height(mm) | 1317 |
Max drop below ground(mm) | 540 |
Track shoe width(mm) | 560 |
Pitch(mm) | 216 |
Quantity of track link | 38 |
Quantity of Carrier rollers(each side) | 4 |
Quantity of Track rollers(each side) | 6 |
Max pressure(MPa) | 14 |
Discharge L/min | 262 |
Max tractor force(KN) | 202 |
Forward Speed(Km/h) | F1:0-3.6 |
F2:0-6.5 | |
F3:0-11.2 | |
Rear Speed(Km/h) | R1:0-4.3 |
R2:0-7.7 | |
R3:0-13.2 |
Notice : Material and specifation are subject to change without notice , Feature machine in photos may include additional equipment.
